Mazda Miata NC

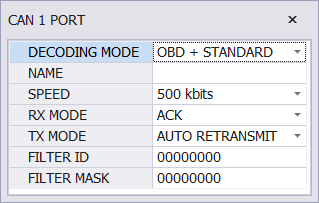

1. Setup the CAN1 port with the following settings

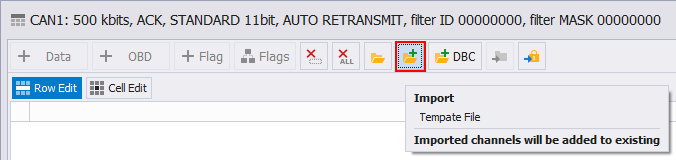

2. Open the CAN1 Receive setup and import the template files "OBD_11bit 0x7E0" and "MIATA_NC_OBD_ADDITIONAL_CHANNELS".

3. Delete all not needed channels.

4.Configure the "request SPEED" of remaining channels to reflect the priority and signal types. Ex. RPM should be set to "priority", WATER T can be set to "slow".

5. Write the configuration to the device.
