PLEX SDM LINE-UP

DASH DISPLAYS
DONE RIGHT.

Delivering Performance & Precision Since 2014
Since launching our first dash display, the groundbreaking PLEX SDM-500®, we’ve remained committed to doing things the right way. Our goal is simple: to provide Dash Displays & Loggers that set the standard for quality, performance, and functionality.

By putting our customers first, we ensure our products are built to last and designed to help you see what matters most—when it matters most. Whether it’s tracking vital data or optimizing performance, our displays are engineered for reliability and precision, every time.

THE PLEX DASH DIFFERENCE

BEST-IN-CLASS
VIEWING ERCONOMICS

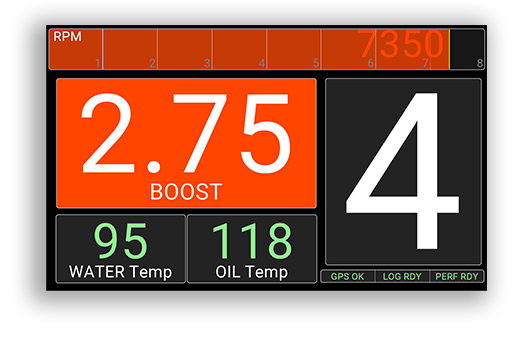

Our proprietary QuickGlance™ UI design maximizes viewability while minimizing driver distraction. Using optimized color and contrast to enhance peripheral vision and keep your focus on the road.

UNRIVALLED DEVICE
CONFIGURATION

Fully customizable to your needs, our displays offer unparalleled flexibility. With a user-friendly interface, you can configure layouts, data channels, alarms and other functions ensuring the perfect setup for any application.

RUGGED HIGH-QUALITY
ALUMINUM ENCLOSURES

Designed for durability, our displays feature robust aluminum enclosures with IP-rated weather sealing. This ensures protection against the elements, providing reliable performance in even the harshest conditions.

SUPERB TFT IPS SCREENS

Our displays are equipped with vibrant IPS TFT screens that deliver exceptional clarity and color accuracy from any angle. With high brightness and contrast, they ensure visibility in all lighting conditions, allowing you to read critical data effortlessly.

BUILT-IN SUPERIORITY

At the heart of our displays is a powerful multi-core processor that handles the different sub-systems (CAN Bus, logging, graphics, calculations) independently, to ensure seamless superior performance even with the most complex setups.

POWERFUL PC SOFTWARE

Our intuitive PC software complements your display, providing powerful tools for configuration, data analysis, and performance optimization. With user-friendly navigation and comprehensive features, you can easily customize settings and gain insights from your data, enhancing your overall experience
EXPLORE THE LINEUP

A PLEX DISPLAY FOR EVERY PROJECT

At PLEX, we believe that the whole is greater than the sum of its parts. Our displays are crafted with cutting-edge components, delivering sophisticated functionality that meets the demands of even the most discerning users.

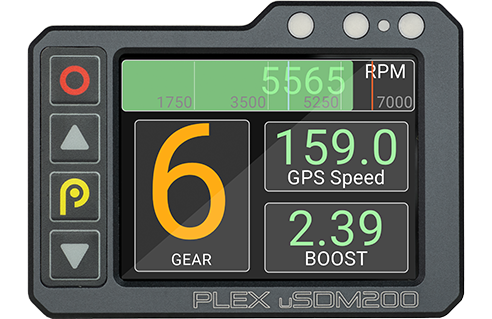

2.8"

uSDM-200®

3 versions

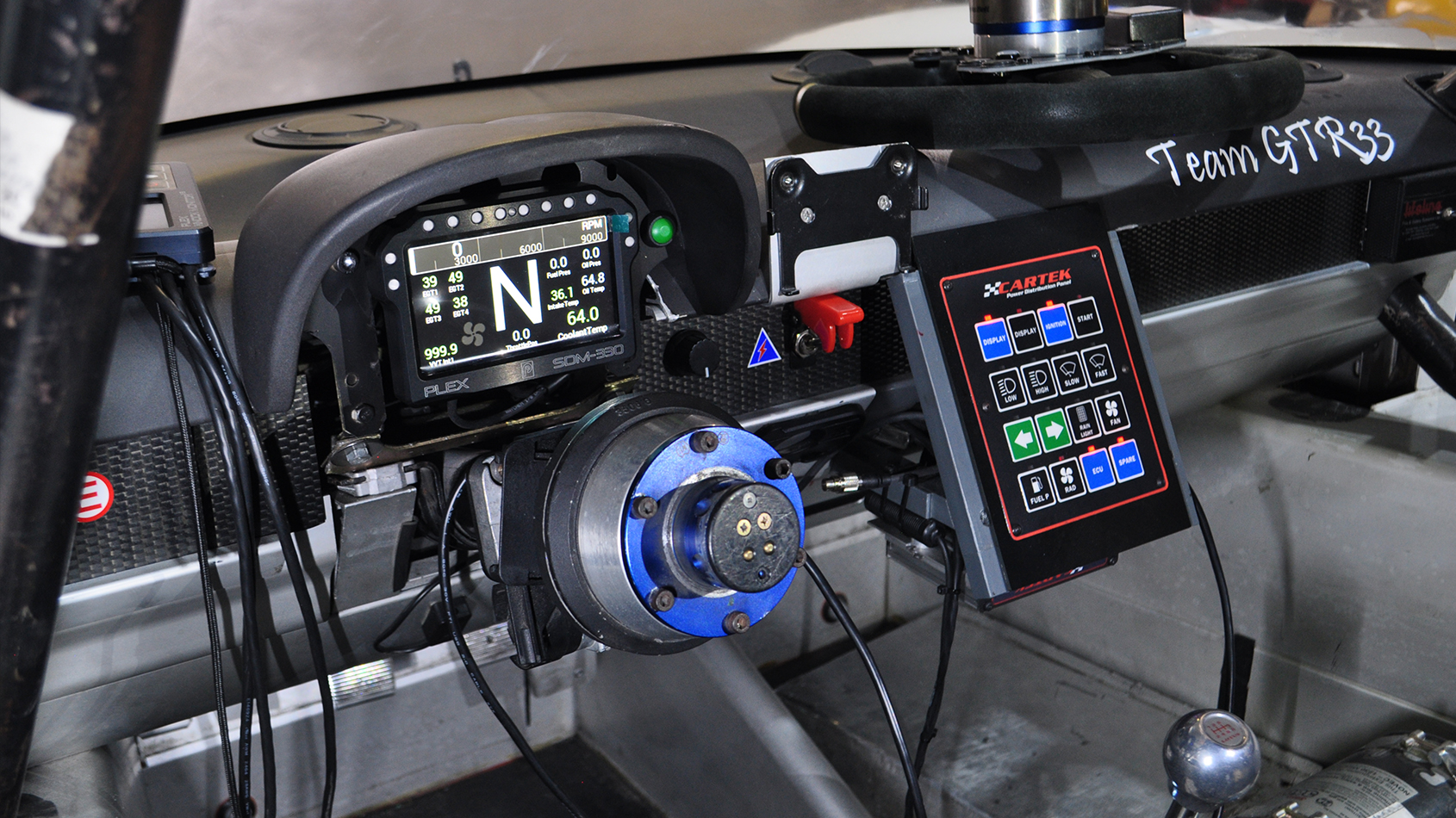

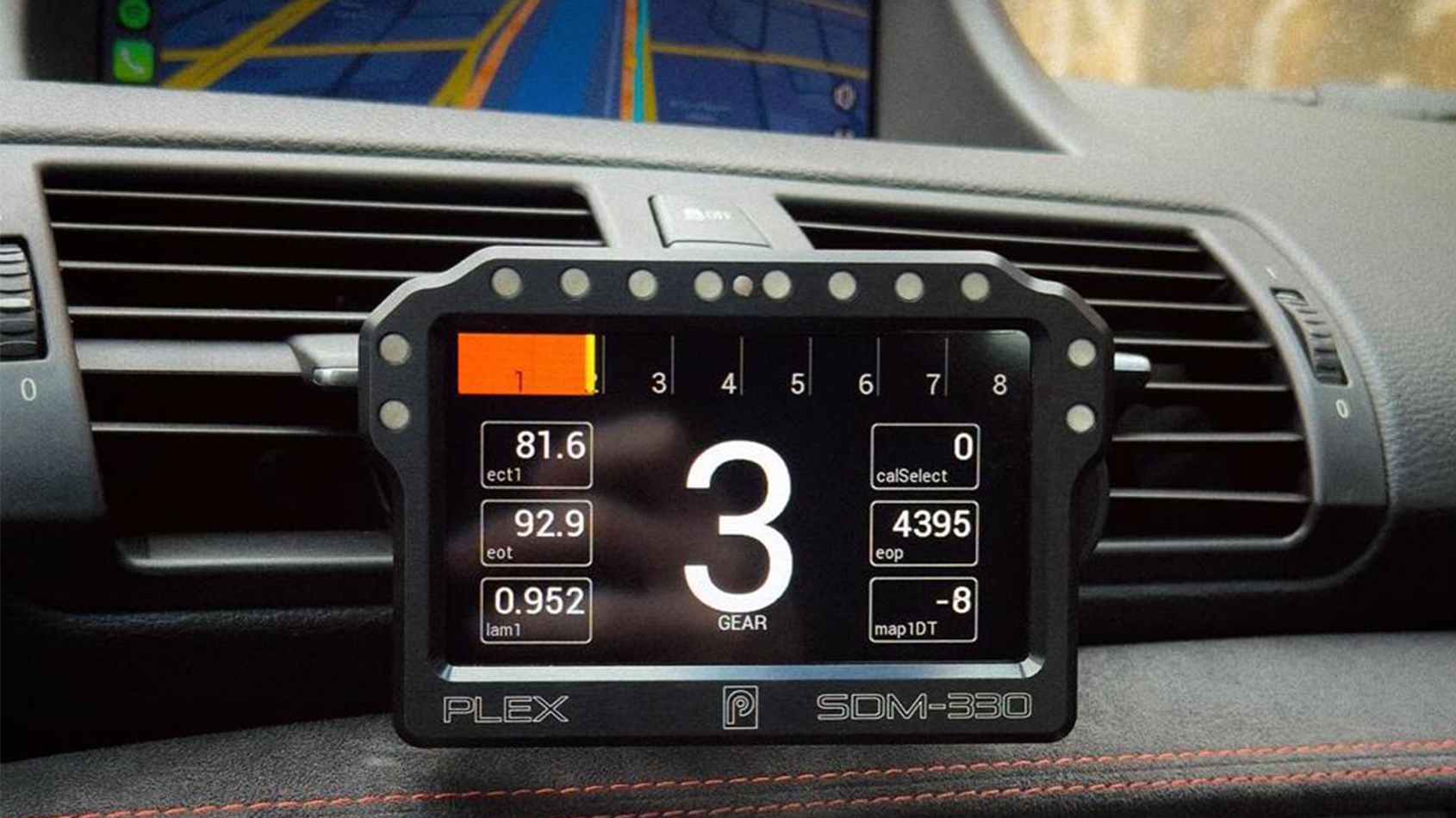

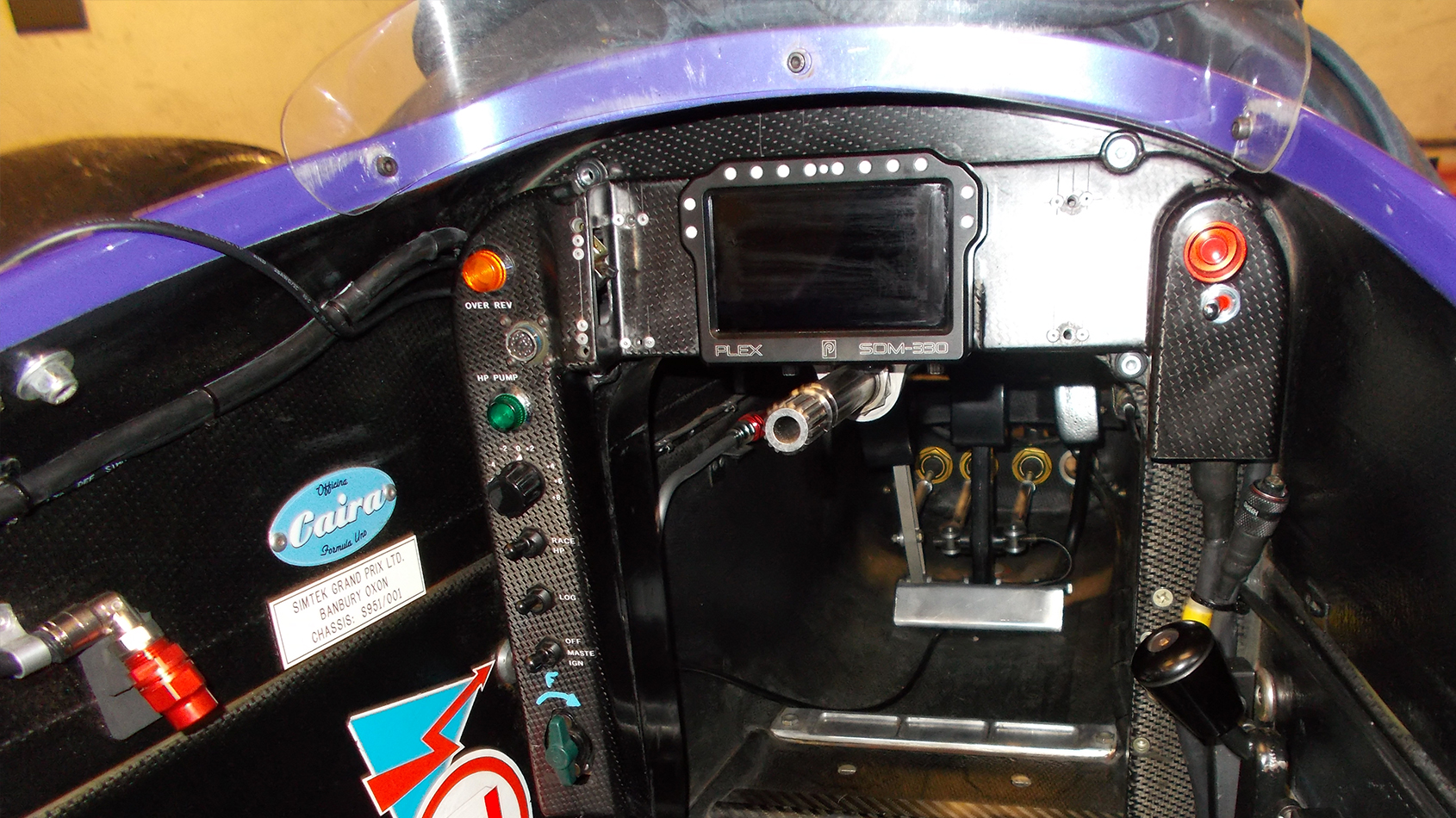

4.3"

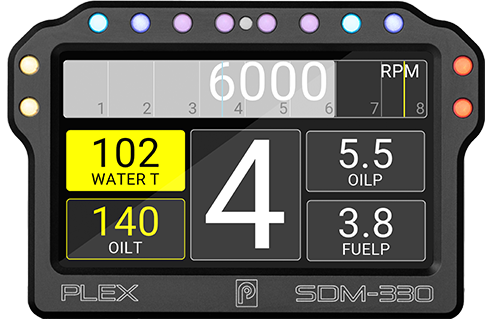

SDM-330®

3 versions

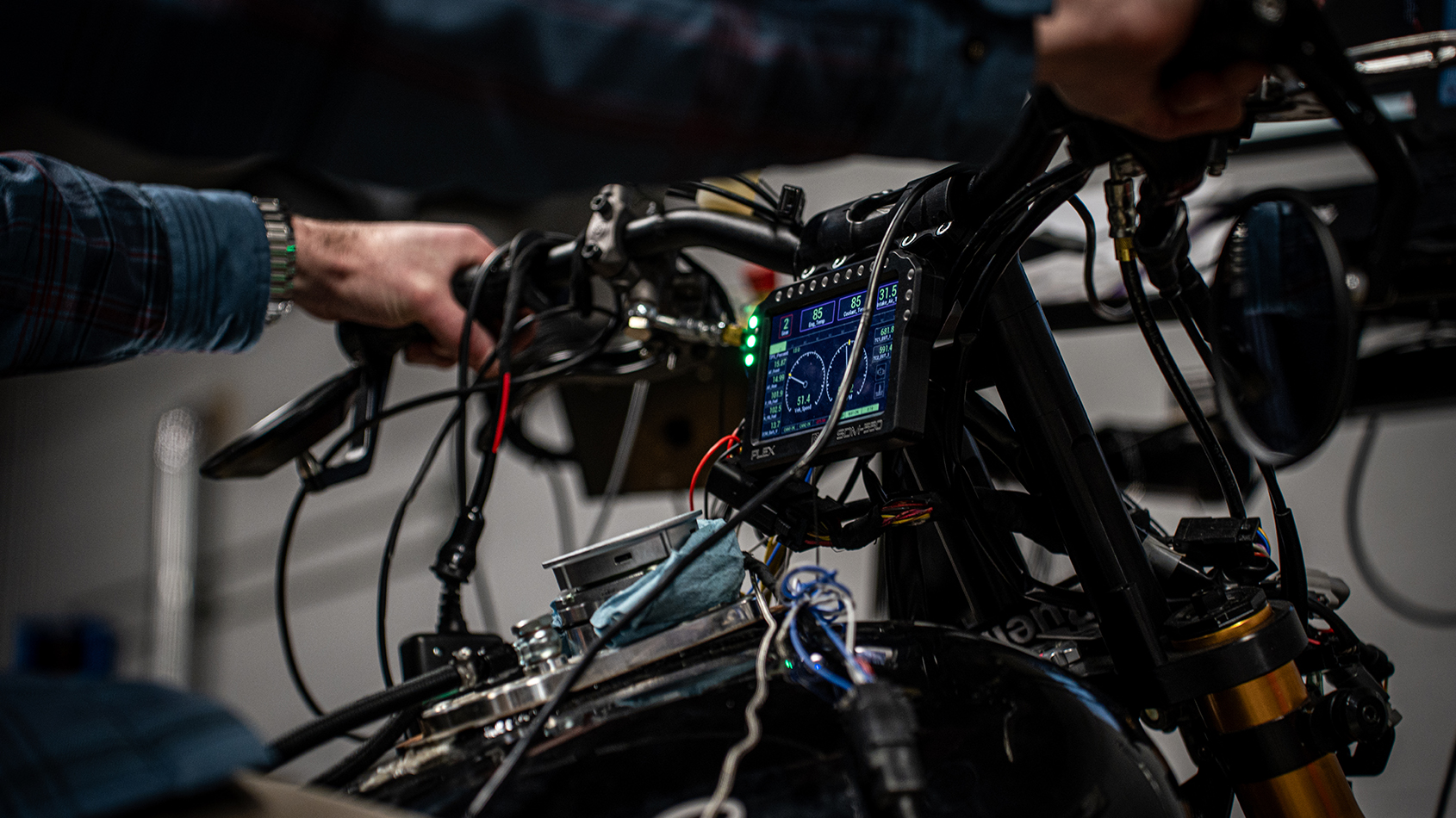

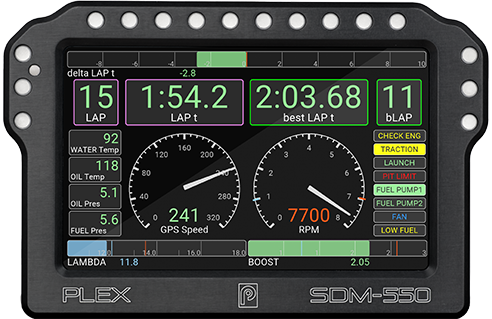

5"

SDM-550®

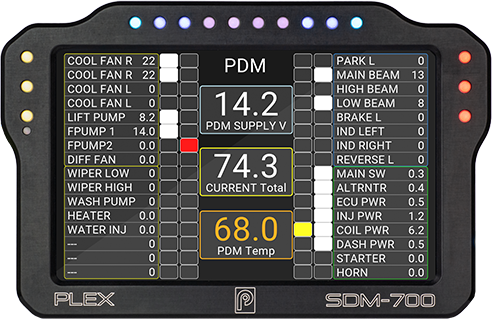

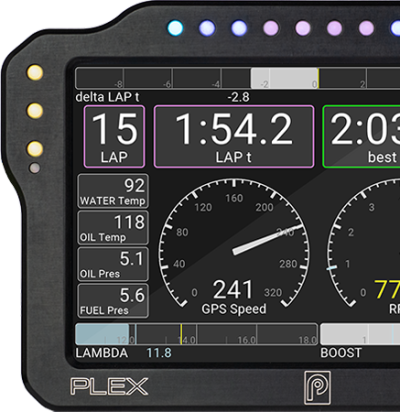

7"

SDM-700R®
WHICH ONE IS RIGHT FOR YOU?

SPEC & FEATURES COMPARISON

2.8" PLEX uSDM-200®
From €559
Buy
Learn More
4.3" PLEX SDM-330®
From €1099
Buy
Learn More

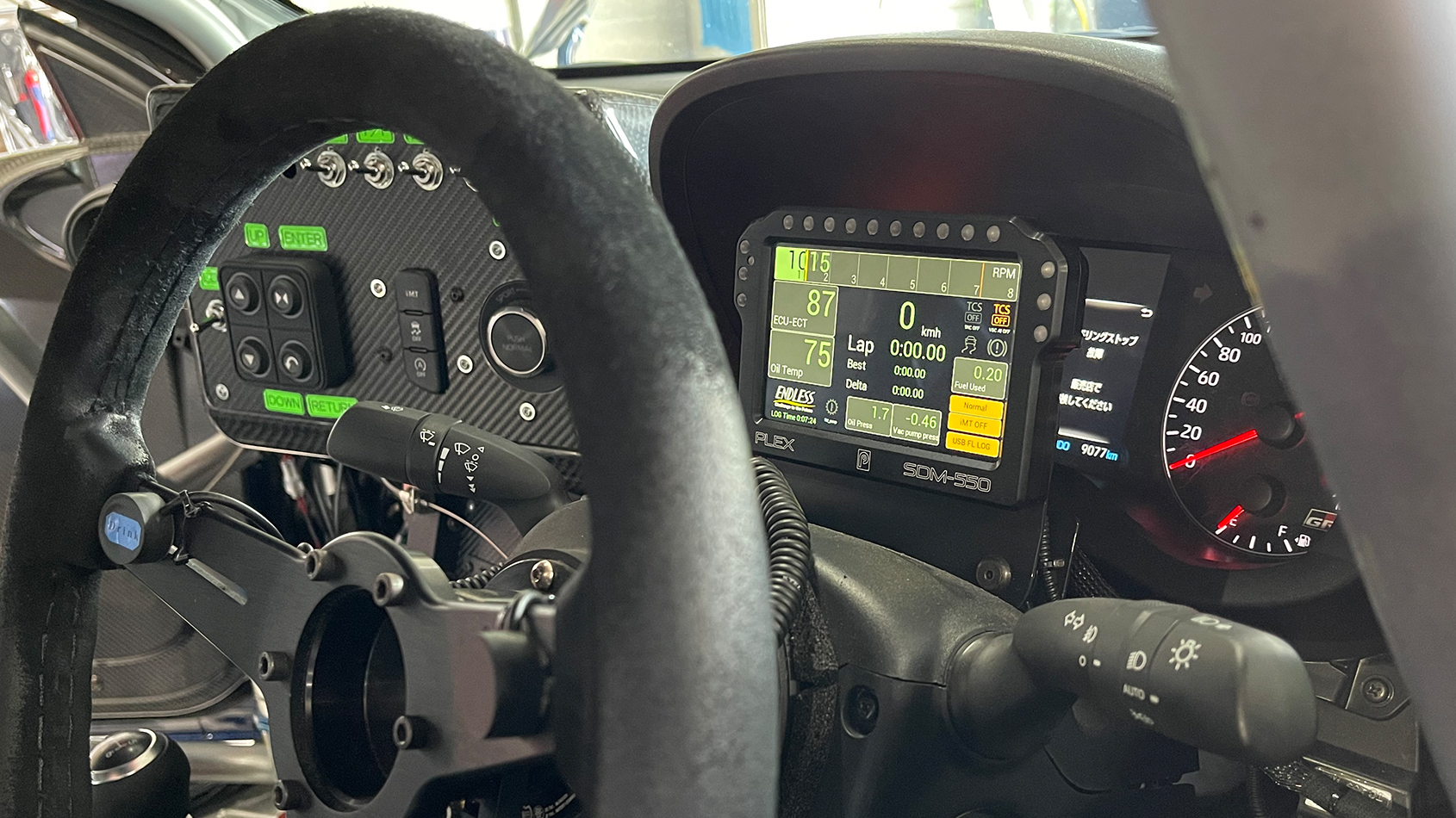

5" PLEX SDM-550®
From €1749
Buy
Learn More

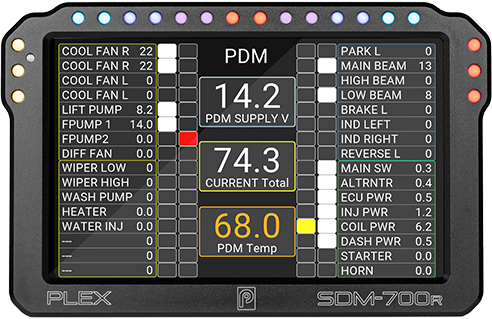

7" PLEX SDM-700R®
From €2499
Buy
Learn More
Physical
Dimensions (mm)
w 86.5, h 63, d 16
w 125, 83.5, 14/32
w 145, h 95, 16/
w 200, h 129, d 27/47
Weight (g)
130
270
315
720
Material
CNC Machined Aluminum
CNC Machined Aluminum
CNC Machined Aluminum
CNC Machined Aluminum
Sealing (IP)
64
67
67
67
Connectors
JWPF
JAE MX47 Series (39 pins)
TE Series (26 pins)
Souriaou (37 pins)
Screen
Type
RGB TFT IPS Sunlight Readable with Touch Interface
RGB TFT IPS Wide Temp
RGB TFT IPS Wide Temp
RGB TFT IPS Wide Temp
Size (px / in)
320 x 240 / 2.8
480 x 272 / 4.3
800 x 480 / 5
800 x 480 / 7
Brightness (cd)
900
900
900
1000
Display Glass
Capacitive Touch
ARC high-efficiency broadband anti-reflection
ARC high-efficiency broadband anti-reflection
ARC high-efficiency broadband anti-reflection
Refresh Rate
20Hz
50Hz
50Hz
50Hz
User Interface
Max # of Pages
24
24
24
24
Custom Page Design
Yes
Yes
Yes
Yes
Custom Themes
Yes
Yes
Yes
Yes
Pre-loaded Templates/Pages
Yes
Yes
Yes
Yes
Data Channels
Max. Data Channels
128
256
256
384
Max. Flag Channels
128
256
256
384
Communications
CAN Bus
1x
2x
2x
2x (250kbit-1.333Mbit) CAN2.0, up to 5Mbit CAN FD
LIN Bus
tbd
1x
1x
1x
RS-232
n/a
1x (shared with CAN)
1x (shared with CAN)
1x (shared with CAN2)
USB
1x (configuration & data transfer)
1x (configuration & data transfer)
1x (configuration & data transfer)
1x (configuration & data transfer)
WiFi
no
Yes (configuration)
Yes (configuration)
Yes (configuration)
Ethernet
no
no
no
Yes (configuration & log file download)
Inputs/Outputs
Inputs
2x Multi-purpose (DL & DLG versions)
4x Multi-purpose 0-5V (Analog/digital/frequency), 4x Multi-purpose 0-16V
4x Multi-purpose 0-5V (Analog/digital/frequency), 4x Multi-purpose 0-16V
4x Multi-purpose 0-5V (Analog/digital/frequency), 4x Multi-purpose 0-16V
Outputs
1x AUX Low Side, lim 0.5A (shared)
2x AUX High Side, lim 3A
2x AUX High Side, lim 3A
2x AUX High Side, lim 3A, 1x AUX Low Side (lim 0.5A)
Switch/Button Inputs
-
8
2
4
LEDs
3x (RGB)
12x (RGB)
16x (RGB)
16x (RGB)
Internal Sensors
Real-Time Clock
yes - with battery backup
yes - with battery backup
yes - with battery backup
yes - with battery backup
Device/Sensor Voltage Monitor
+12V supply/+15V sensor supply
+12V supply/+15V sensor supply
+12V supply/+15V sensor supply
+12V supply/+15V sensor supply
Device Temperature Sensor
Yes
Yes
Yes
Yes
Ambien Light Sensor
Yes
Yes
Yes
Yes
Accelerometer/IMU
6-axis built-in / 100Hz (DLG version)
external only (DLG version)
6-axis / 100Hz
6-axis / 100Hz
GPS
10Hz concurrent GNSS (DLG version)
external only (DLG version)
25Hz concurrent Multi-GNSS
25Hz concurrent Multi-GNSS
Datalogging
Memory
32 GB built-in flash (DL & DLG)
USB Flash (DL & DLG)
USB Flash
USB Flash
Max. Logging Rate
100Hz
100Hz
100Hz
500Hz
Engine Log
pending
Yes
Yes
Yes
Alarms Log
Yes
Yes
Yes
Yes
Lap Times Log
Yes (DLG version)
Yes (DLG version)
Yes
Yes
Performance Times Log
Yes (DLG version)
Yes (DLG version)
Yes
Yes
Internal Calculations
Lap Times
Yes (DLG version)
Yes (DLG version)
Yes
Yes
Acceleration Performance
Yes (DLG version)
Yes (DLG version)
Yes
Yes
Engine Power & Torque
Yes (DLG version)
Yes (DLG version)
Yes
Yes
Alarms Log
Yes
Yes
Yes
Yes
Math Channels
4
16
16
32
Trip Meters
2
4
4
4
Electrical Data / Operating Conditions
Supply Voltage Range
9-30V DC
9-30V DC
9-30V DC
9-30V DC
Current Consumption
max. 0.3A at 12V
max. 2A at 12V
max. 2A at 12V
max. 2A at 12V
Temperature Range
-20 to +60 degC
-20 to +60 degC
-20 to +60 degC
-20 to +60 degC

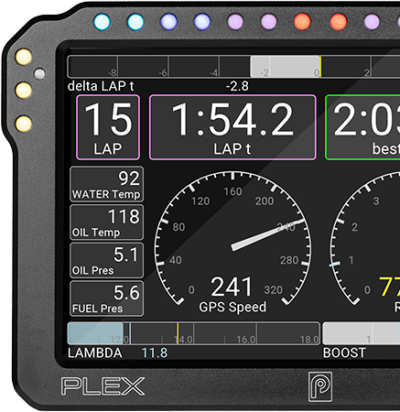

PLEX VIEWING ERGONOMICS

VIEW WHAT MATTERS MOST.
WHEN IT MATTERS MOST.

A dash display should be easy to read when it’s needed most and unobtrusive at all other times. We take pride in offering the best viewing ergonomics in the market, ensuring that our dash displays deliver clarity and accessibility when it matters most, allowing you to focus on what really counts.

CLEAN UI

UNCLUTTERED AND
EFFECTIVE UI DESIGN

ENTIRELY FLEXIBLE

EVERYTHING IS POSSIBLE
WITH A PLEX DASH

QUICK-GLANCETM

MINIMAL DRIVER
DISTRACTION.

SMART ALARMS

GET WARNED BEFORE
IT IS TOO LATE

TOP QUALITY

PREMIUM IPS TFT
SCREEN MODULES.

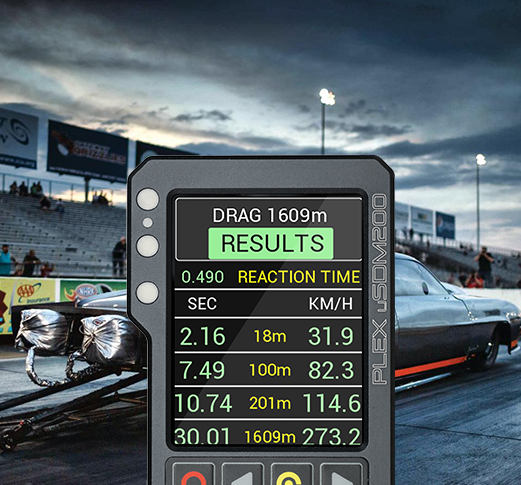

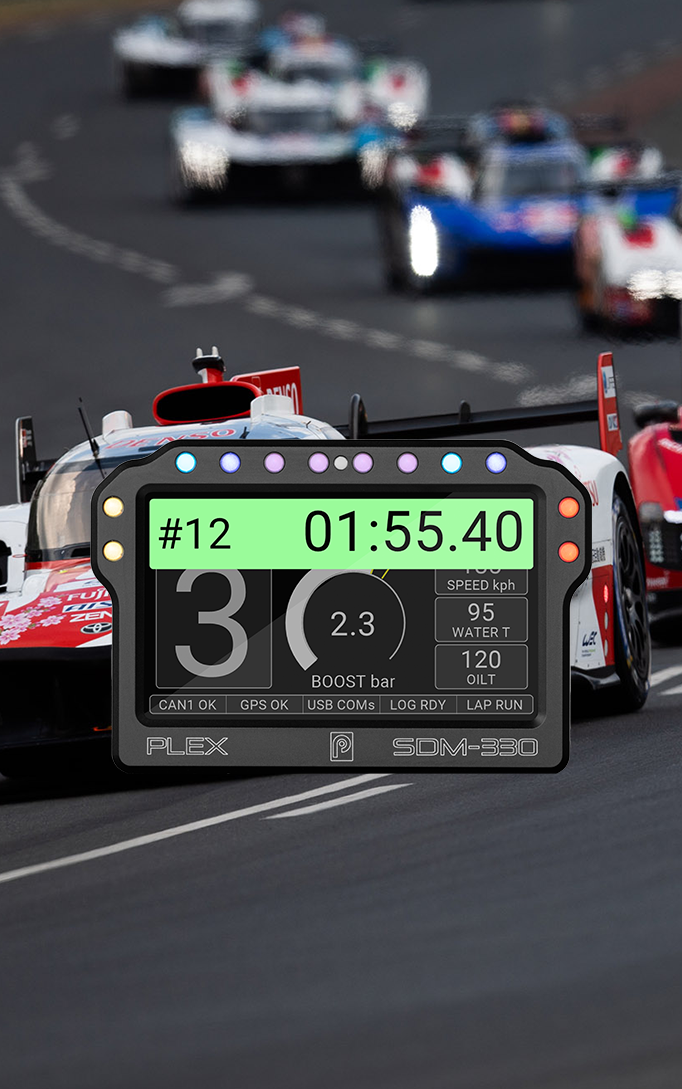

    BUILT-IN FUNCTIONALITY*

    FAR MORE THAN DISPLAYS

    All PLEX displays, either through integration or options, double as fully-configurable data-loggers, high-accuracy performance meters, predictive lap-timers, vehicle dynamics modules and trip meters. This way they eliminate the need for extra devices whilst streamlining configuration and data acquisition.

    PLEX DEVICE MANAGER 2.0

    YOUR DISPLAY. YOUR WAY.

    Advanced Configuration at Your Fingertips.

    EASY TO NAVIGATE
    SETUP TREE INTERFACE

    A hierarchical tree-list interface offers an intuitive and organized way to access all device configuration options. This logical flow simplifies complex setups, allowing users to navigate effortlessly through various configuration layers.

    COMMON USER INTERFACE
    FOR ALL PLEX DEVICES

    The PDMv2 provides a unified interface across all PLEX devices, from dashboards to tuning tools. This consistency ensures easy switching between devices and streamlines configuration with a shared layout and features.

    WYSIWYG DASH PAGE
    LAYOUT DESIGN

    Enjoy a ``What You See Is What You Get`` dash page layout, allowing for easy offline design with accurate page previews. Data simulation ensures users can see exactly how their dashboards will look and function, providing full confidence in the final setup.

    TRULY FAST CONFIGURATION

    Speed up the configuration process with easy filtering of selection lists, keyboard shortcuts, and copy-paste functionality. These tools help streamline and accelerate setup, minimizing time spent on repetitive tasks.

    REAL-TIME CAN MSG STREAMING

    Transform your device into a powerful CAN bus diagnostic tool with real-time streaming of incoming raw CAN messages. View all incoming data instantly, and transmit user-defined CAN messages on demand for advanced troubleshooting and system testing.

    BUILT-IN TEMPLATES

    The software comes preloaded with a comprehensive library of CAN protocol templates for seamless connection to most aftermarket ECUs. It also includes sensor templates for common engine sensors, allowing for quick and easy setup without manual configuration.

    PLEX PDA-WIN
    DATA ANALYSIS
    AND VISUALISATION
    SOFTWARE

    Outsmart The Track.

    CUSTOMIZABLE UI

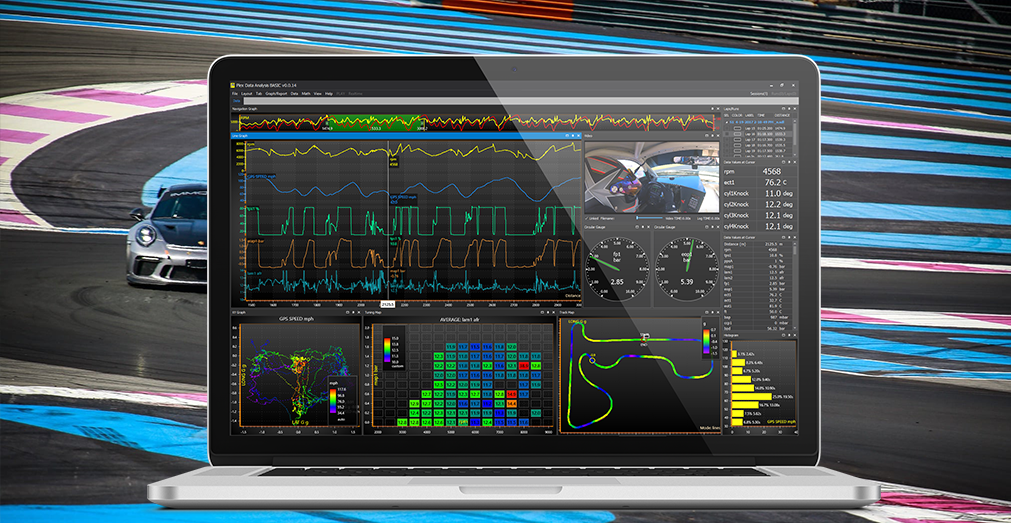

    User defined layout of tabs and panels with handy docking similar
    to latest Windows SW suite and also light & dark modes.

    FAST KEYBOARD SHORTCUTS

    Main menu and panel functions shortcuts speed up the set-up time and the dynamic real-time analysis considerably.

    MULTIPLE GRAPHS & PANELS

    A wide array of chart types lets you visualise large amounts of data into an easy to understand formats and bring out insights at a glance.

    EASY FILE COMPARISON

    Seamlessly switch between single and comparison view even for completely different file types such as a dyno run with a track lap.

    LIVE DATA UPDATING

    Zoom levels & cursors are synchronized across all analysis panels and graphs, enabling auto rescaling and seamless cross-referencing of data.

    SMART TUNING MAPS

    Configurable cell graphs with information directly transferable to the ECU calibration maps that help you optimise your fuel and ignition maps.

    DEVICE COMPATIBILITY

    ECUs - Aftermarket
    Adaptronic
    AEM
    • Infinity
    • Series 2
    Bosch Motorsport
    • MS3
    • MS40
    Carrot
    DTA
    • S Series
    • T Series
    ECUMASTER
    • EMU Black
    • Classic
    • Pro
    EFI
    • EFR18
    • Euro1
    • Euro4
    • Euro6
    • Euro8
    Electromotive TEC
    Emerald
    • K3
    • K6
    Emtron
    E-Race Black
    GEMS
    Haltech
    Hondata
    • Kpro
    • S300
    KMS
    • MD35
    Life Racing
    LINK
    • G3
    • G4
    • G4X
    MAXX
    MARELLI
    Mectronic
    • MKE1
    • MKE4
    • MKE6
    • MKE7
    Megasquirt
    Microtech
    • v2.0
    MMe
    • ECU481
    MOTEC
    • M400
    • M600
    • M800
    • M1 Series
    Pectel
    • EQ10
    • SQ6
    Specialist
    Components
    SYVECS
    • S6
    • S7
    • S8
    Triject
    ECUs - OEM
    BMW M2/M4
    MItsubishi Evo X
    Toyot GT86
    ECUs - Generic OBDII/UDS
    OBD – CAN ISO15765
    OBD – MODE 22 MANUFACTURER SPECIFIC PIDS
    OBD – UDS
    J1939
    NMEA2000
    PDUs
    PDU Ecumaster
    PDU HP Elektronic
    PDU Life Racing
    PDU Motec
    PDU Syvecs
    PDU Tremondi
    PDU MSEL Master Relay
    Auxiliary Devices
    ABS Bosch Motorsport M4/M5
    DCU Motec MDC/MDC2
    KEYPAD Blink Marine
    KEYPAD Tremondi
    LAMBDA AEM
    LAMBDA Ecumaster
    LAMDA Haltech
    LAMBDA Link
    LAMBDA Motec
    SENSOR AEM Thermocouple Amplifier
    SENSOR KMS Thermocouple Amplifier
    SENSOR KMS Flex Fuel
    SENSOR KMS Speed Sensor
    SENSOR Motec E888
    SENSOR Syvecs Thermocouple Amplifier
    SENSOR TEXENSE IRN4C/IRN8C/THN4X
    SENSOR AIM TPMS
    SENSOR IZZE TPMS
    TCU XAP ESHIFT2

    QUESTIONS? ANSWERS.

    Documentation
    Datasheets uSDM-200 | SDM-330 |SDM-550 | SDM-700R
    Pin-out Diagrams uSDM-200 | SDM-330 |SDM-550 | SDM-700R
    Mounting Diagrams uSDM-200 | SDM-330 |SDM-550 | SDM-700R
    User Manual All
    Software
    PLEX Device Manager 2.0 download
    PLEX Data Analysis 2.0 (PDA-WIN) download
    What’s In-the-Box
    uSDM-200
    USB-C Cable
    JWPF Male Connector & Pins
    Wiring Loom on-device
    GNSS Antenna (DLG version)



    SDM-330
    USB Cable
    JAE MX47 Series 39pins Connector & Pins
    Wiring Loom no
    GNSS Antenna (DLG version)
    EXPGps Module (25Hz GNSS/100Hz IMU) DGL Version only
    USB Flash Drive (DL/DLG)



    Device
    TESeries 26pins Connector with Pins and USB Cable
    Wiring Loom no
    GNSS Antenna
    USB Flash Drive Kit



    Device
    USB Cable
    Souriau Connector with Pins
    Wiring Loom no
    GNSS Antenna
    USB Flash Drive Kit

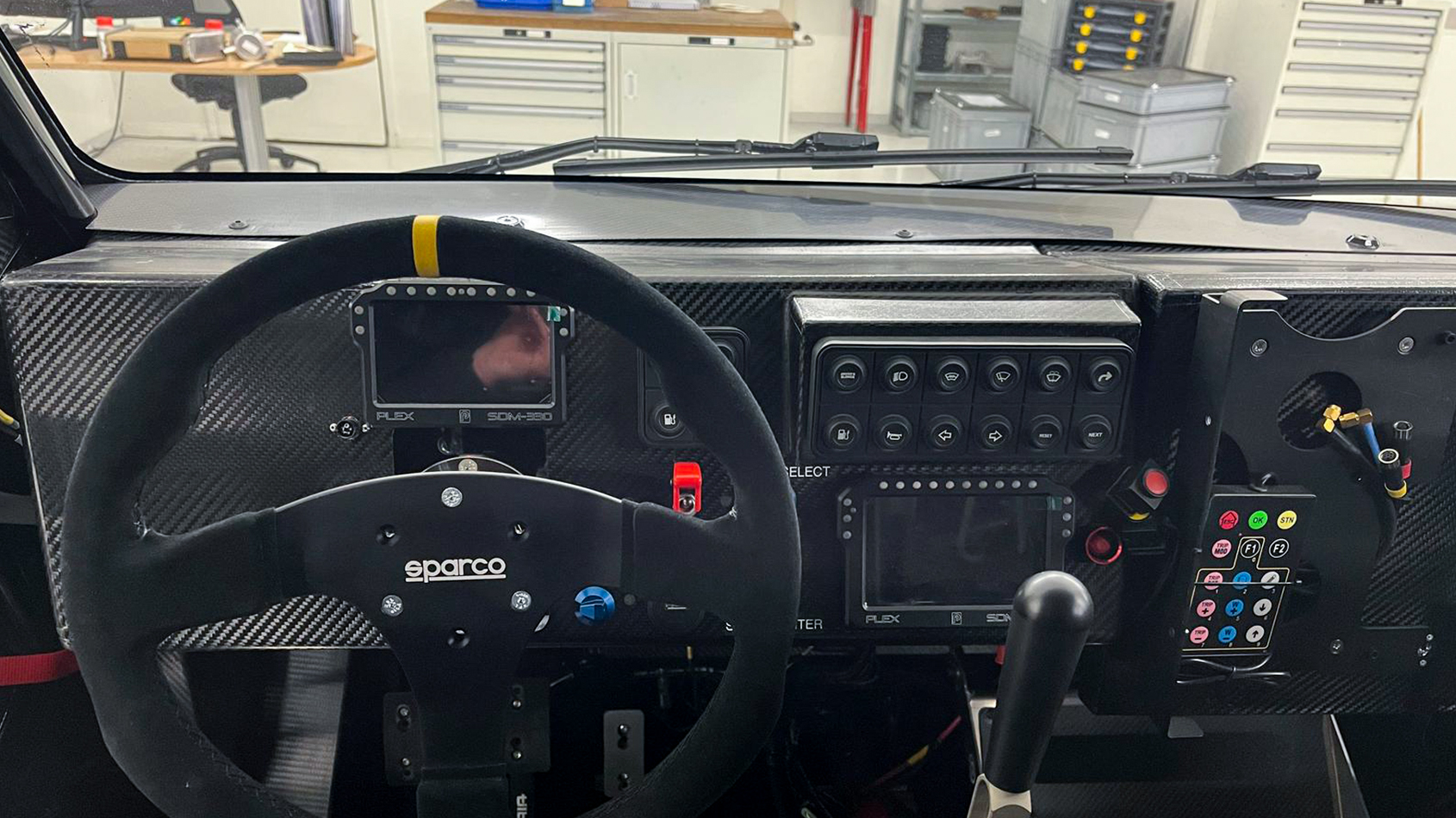

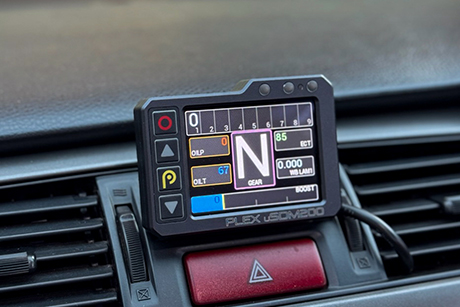

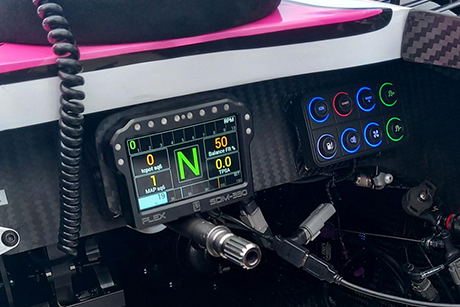

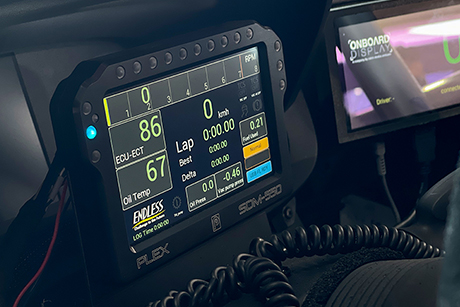

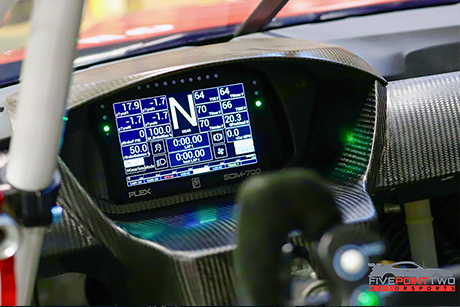

    WHAT CUSTOMERS SAY

    CHOOSE YOUR PLEX DISPLAY

    3 versions

    4.3" PLEX SDM-330®

    Compact.Smart.Pro.

    Learn More Datasheet

    5" PLEX SDM-550®

    All-in-One.Robust.Pro.

    Learn More Datasheet
    Out-Of-Stock

    7" SDM-700R®

    All-in-One. Massive. Pro.

    Learn More Datasheet
    PLEX uSDM-200 DLG version in vertical orientation displaying lap-timing data, with built-in multi-GNSS (10Hz) and IMU (100Hz) modules for enhanced data tracking
    3 versions

    2.8" PLEX uSDM-200®

    Simple. Versatile. Pro

    Learn More Datasheet

      MORE PLEX PRODUCTS

      2 versions

      PLEX KNOCK MONITOR® V3

      Never Miss Knock Again.

      Learn More Datasheet
      2 versions

      PLEX PBC v2® KIT

      Boost Control Redefined.

      Learn More Datasheet

      PLEX PCA-2000Plus®

      Portable Combustion Analysis 2.0

      Learn More Datasheet
