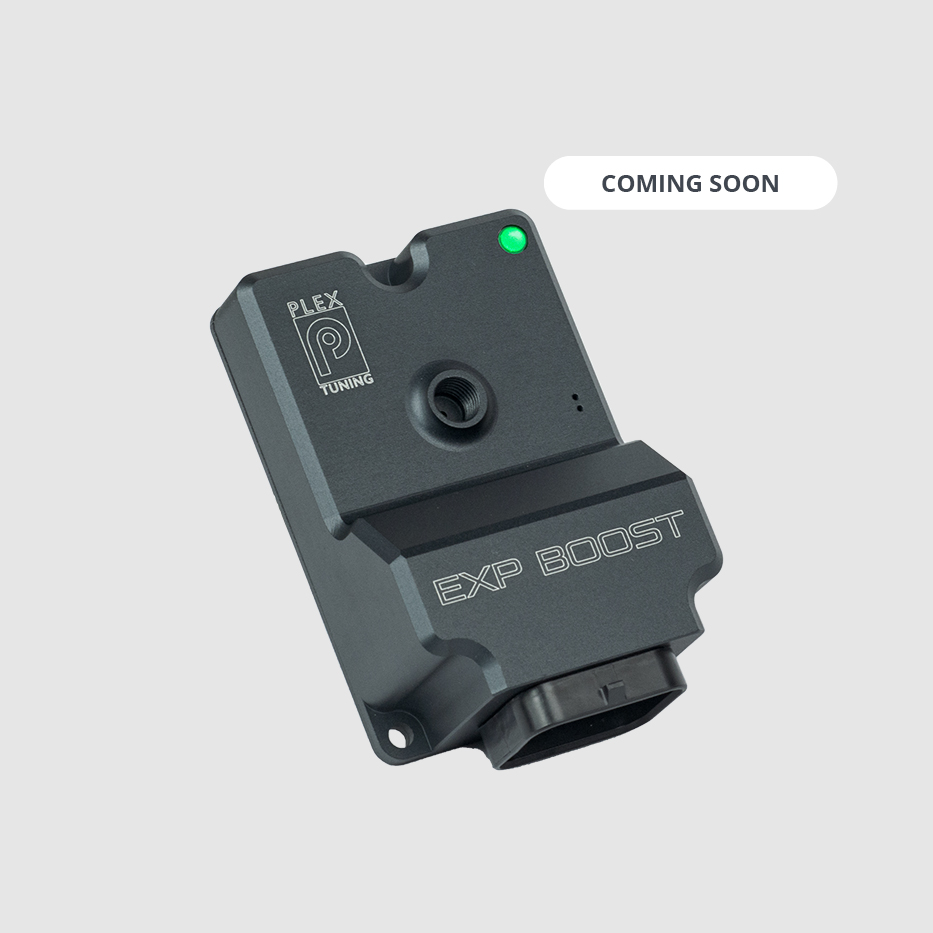

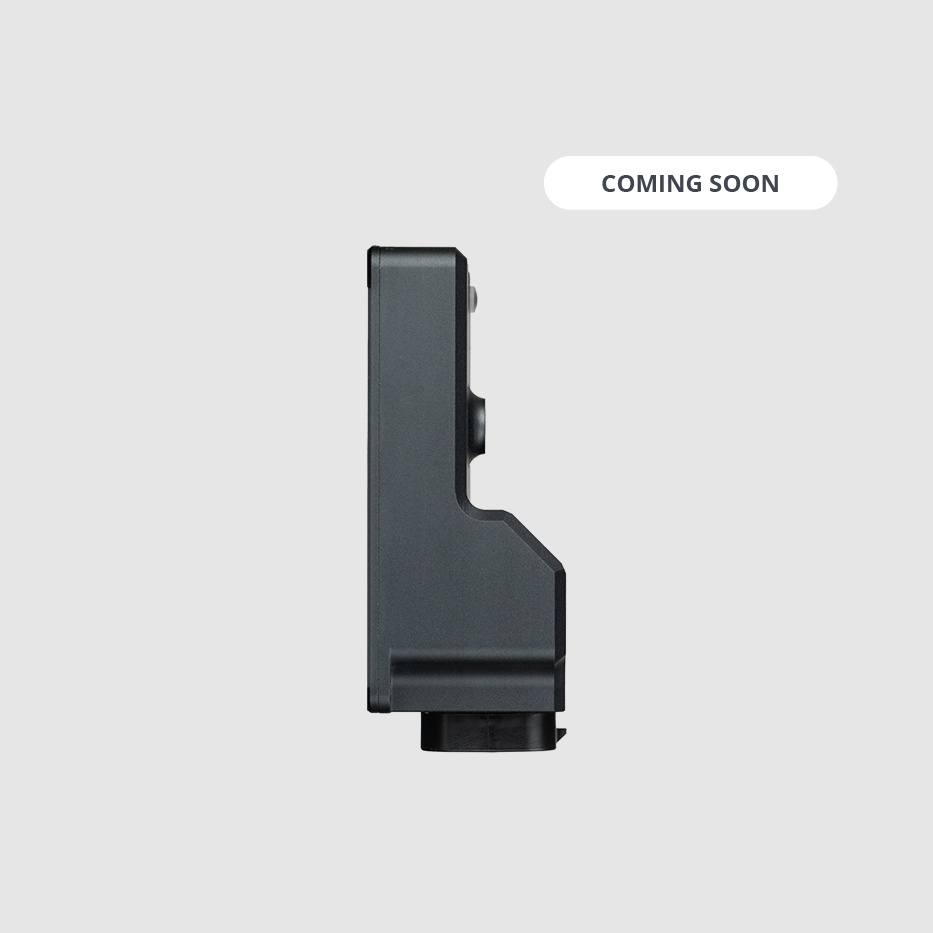

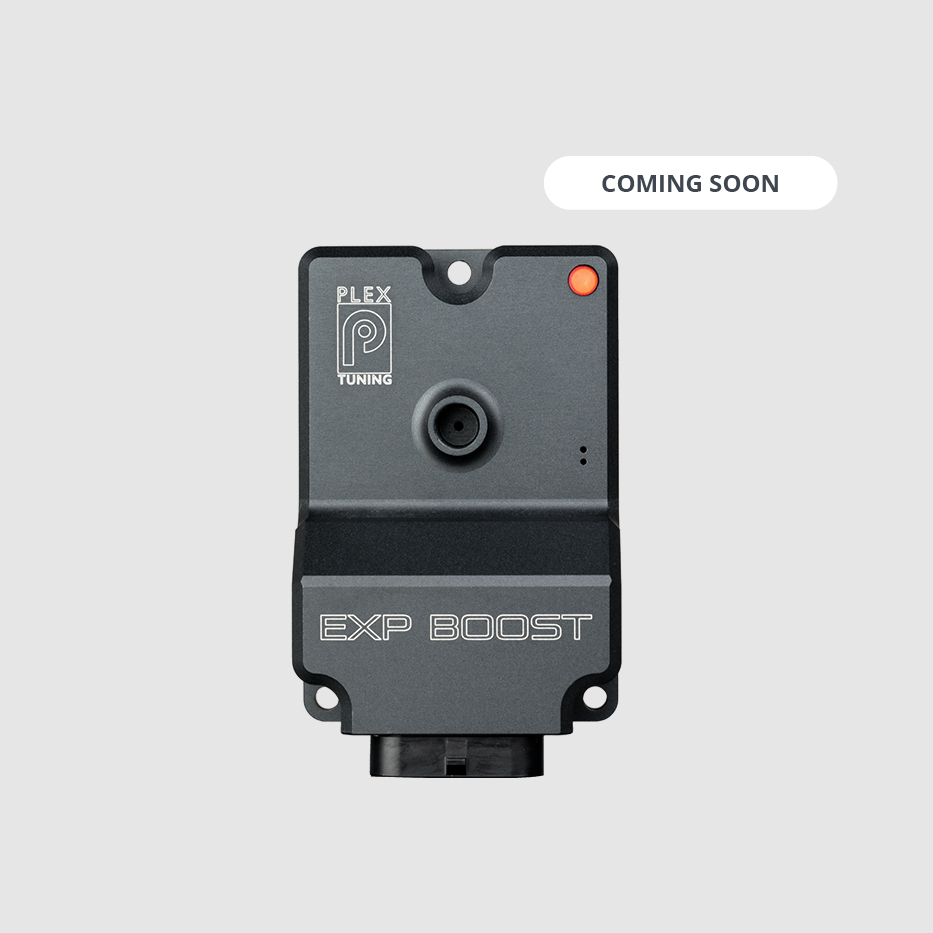

PLEX EXP-Boost®

Pro-level Standlone Boost Controller.

New generation, fully configurable standalone electronic boost controller that combines advanced closed-loop control, intelligent correction strategies, and powerful actuator management, to offer you the perfect balance of power, accuracy, and engine protection.

SKU: plex-exp-boost
650,00  Excl. VAT

Availability: Sold out

This product is Coming Soon.

Be the first to know when we launch and get notified for the special pre-order discount!

COMING SOON

PLEX EXP-Boost®

SMART. PRACTICAL. PRO.

For over a decade, our electronic boost controllers have set the benchmark for precision and reliability. Now, with a fully customizable standalone design, integration is more flexible than ever.

The PLEX EXP-Boost is a CAN-based boost control unit that manages up to two solenoid valves and two electronic wastegates, delivering precise, adaptive boost strategies. Mounted near the engine, it minimizes wiring complexity while ensuring high-speed, closed-loop control.

With software-defined fuses for power distribution, multiple boost presets, and full CAN-bus compatibility, the EXP-Boost offers unmatched versatility for custom setups and professional applications.

Engineered for precision. Built for performance.

KEY FEATURES

FLEXIBLE BOOST STRATEGIES

Multiple boost presets with correction maps, enabling complex strategies like boost per gear, speed, throttle position (TPS), time, and more.

ADVANCED ACTUATOR CONTROL

Supports up to two solenoid valves or electric wastegates, enabling precise, responsive, and adaptive boost management.

CONFIGURABLE CLOSED-LOOP CONTROL

Advanced PID and feedforward control for accurate and stable boost regulation under any conditions.

HIGH-POWER OUTPUTS

4x 15A power outputs to control auxiliary devices such as pumps, fans, solenoids, and advanced functions like intercooler fans, water injection, fuel pumps, and electric blow-off valves.

VERSATILE INPUTS

- 4 multipurpose inputs (analog, digital, or frequency) for additional sensor data and expanded functionality.
- 2 Type-K thermocouple inputs for EGT monitoring or other high-temperature measurements.

INTEGRATED SENSORS

Built-in reliable 5-bar MAP sensor and barometric pressure sensor for real-time environmental compensation.

HIGH QUALITY ENCLOSURE

Durable anodized CNC aluminum housing with IP67 weather protection and a flat-back design for easy, secure mounting.

FULLY CONFIGURABLE

Create custom pages & tailor your setup with configurable CAN Bus receive and transmit options, along with customizable inputs, outputs, and alarms.

BUILT TO LAST

Constructed with high-quality components, the EXP-Boost offers frequent firmware and feature updates, backed by robust support to ensure longevity and reliability.

BUILDING ON A LEGACY

For over 12 years, our electronic boost controllers have set new standards in functionality and reliability. The original PLEX PBC PRO was the first OBDII CAN Bus-equipped boost controller, introducing 6D control, EGT protection, AFR monitoring, and more.

In 2015, we added firmware updates, boost histogram logging, advanced diagnostics, and expanded TFSI & Porsche turbo compatibility.

Now, the PLEX EXP-Boost continues this legacy as a standalone, fully custom CAN Bus device, offering advanced boost control, software-defined power distribution, and support for up to two solenoid valves and two electronic wastegates—all in a compact, display-free design.

Cutting Edge. Practical. Future Proof.

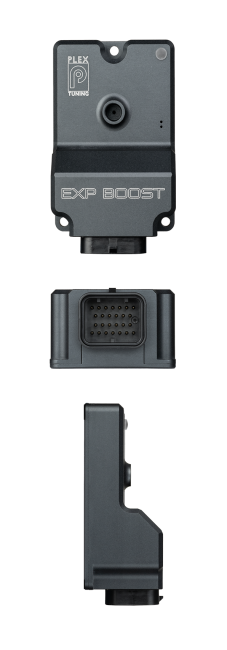

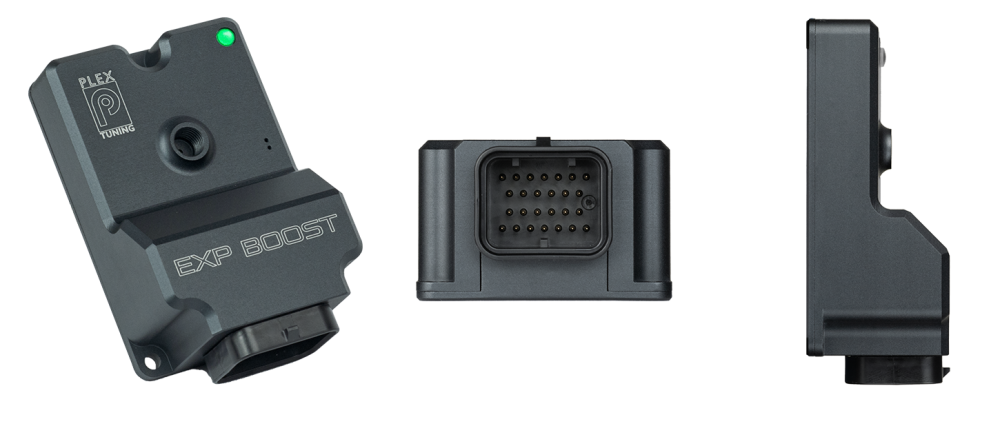

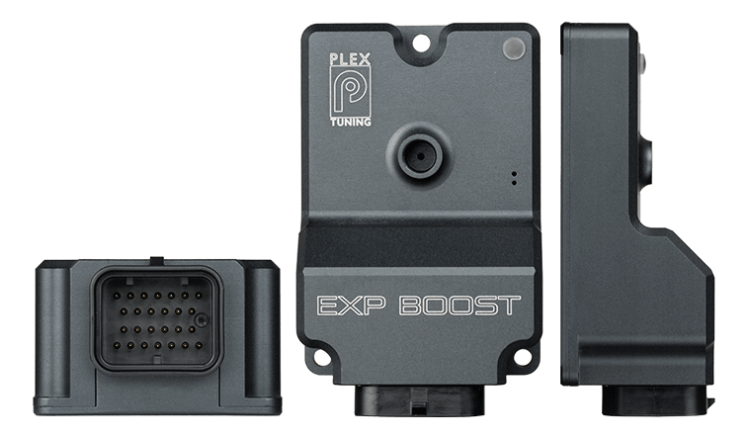

RUGGED WEATHER SEALED HARDWARE.

Built for durability and seamless integration, the PLEX EXP-Boost features a standalone, weather-sealed unit designed for optimal placement near the engine. This ensures precise boost control, efficient power distribution, and reduced wiring complexity, making installation cleaner and more robust in any environment.

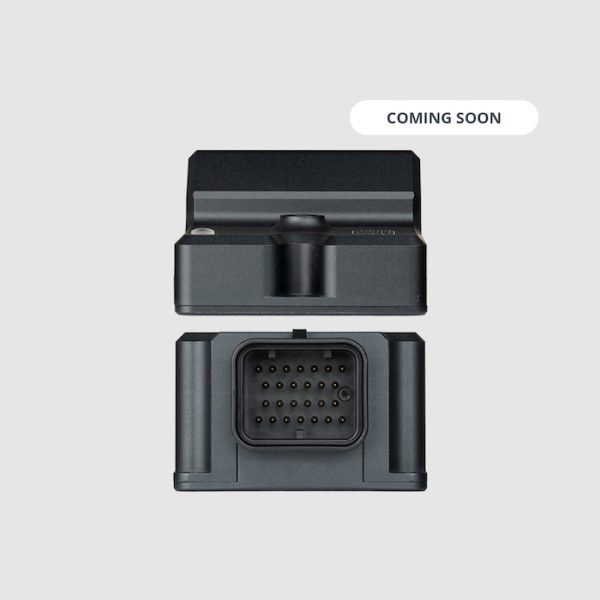

Sealed Connector

26pin weather-sealed TE Superseal connector.

Built-in Map Sensor

High-quality integrated 5bar manifold absolute pressure sensor.

RGB LED Light

Fully configurable RGB LED light can be programmed for device status or custom functions/notifications.

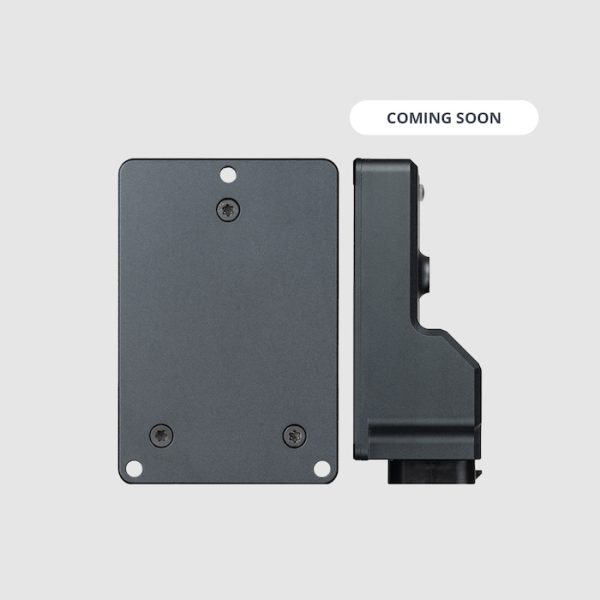

Ultra-compact IP67 Enclosure

Small, rugged aluminum enclosure for easy installation / mounting on the engine.

Barometric Sensor

Automatically compensates for altitude and atmospheric pressure changes, ensuring precise and consistent boost control in all conditions

RUGGED AND COMPACT
WEATHER SEALED HARDWARE.

Built for durability and seamless integration, the PLEX EXP-Boost features a standalone, weather-sealed unit designed for optimal placement near the engine. This ensures precise boost control, efficient power distribution, and reduced wiring complexity, making installation cleaner and more robust in any environment.

RGB LED Lights

Four configurable RGB LED lights can be programmed for device status and custom knock warnings/alerts.

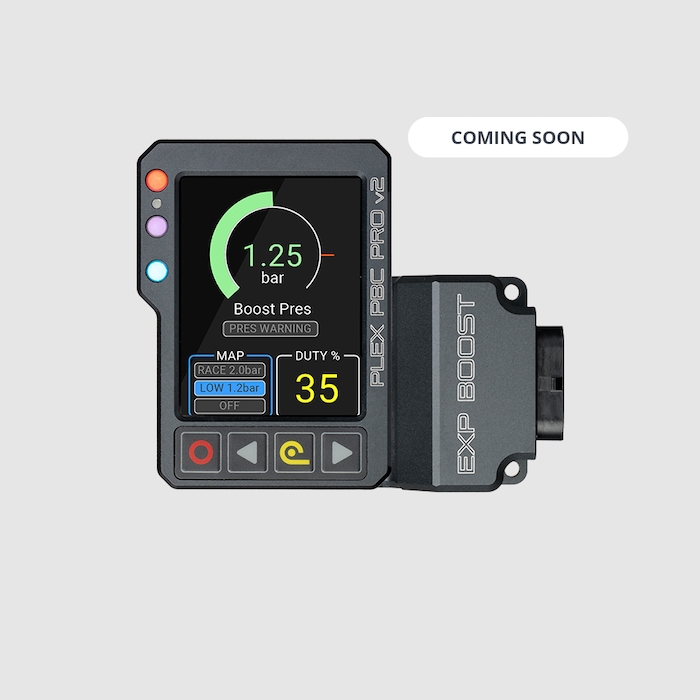

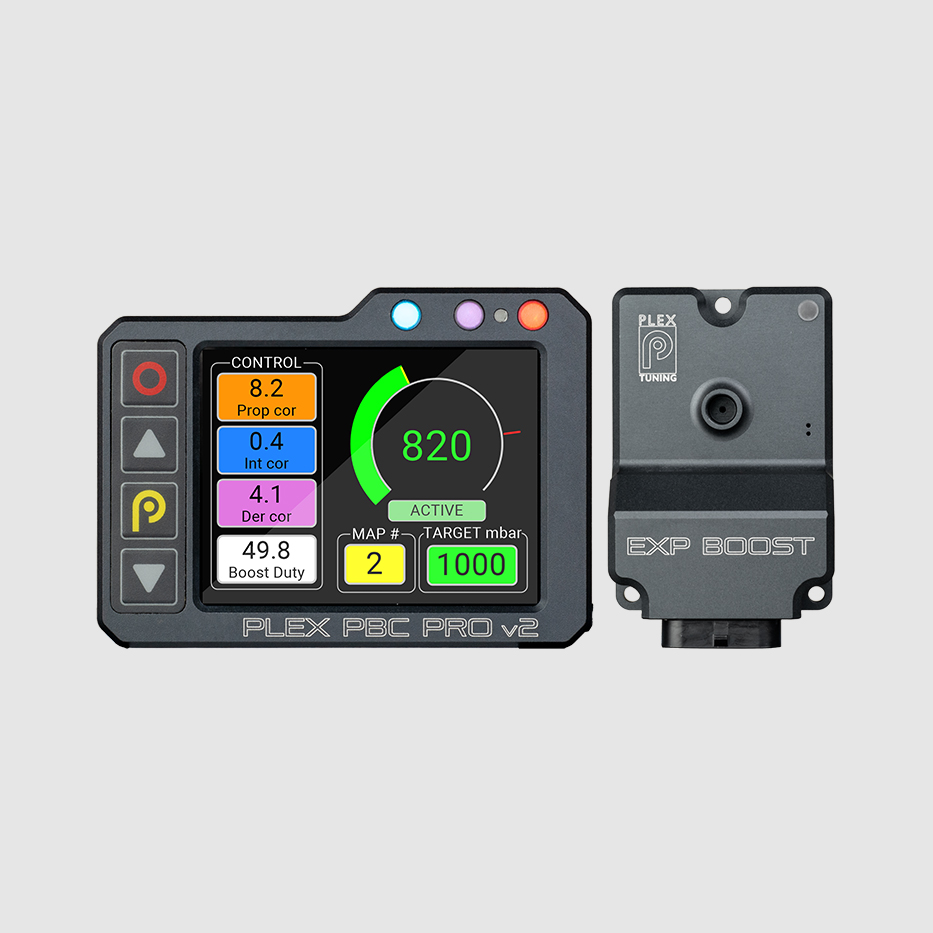

2.8`` IPS TFT Display & Custom UI

View knock events clealy in real time via the new wide-angle IPS display. Configure display pages according to your preferences.

USB Datalogging

32Mb micro-SD card for seamless and convenient datalogging.

Industrial Quality Membrane Keypad

Highly-ergonomic membrane keypad let you control the device easily.

Mounting Screw

1/4″ -20 threaded hole for effortless mounting with custom holders
or easily available suction cap holders.

High-quality Cables/Connectors

Industrial quality M8 connectors with new high-quality cables for the Knock Sensors, Trigger Input, IOs, Power and CAN Bus.

100Mbit Ethernet

Ultra-fast, long-distance streaming of device data via Ethernet. Ideal for engine Dynos.

Cable Holder Bracket

Sturdy aluminum cable holder bracket prevents stress or damage to the device connectors.

USB Port

Convenient USB type C port for device configuration and short-range real-time data streaming.

Audio Output

3.6mm audio jack. Plug-in your headset and list to knock in raw or filtered format.
PEAK POWER. PERFECT CONTROL.

MANAGE BOOST WITH ACCURACY
AND PROTECTION FOR OPTIMAL POWER
AND ENGINE RELIABILITY

Whether you're chasing peak performance on the track or ensuring consistent, safe operation on the road, our system gives you the confidence to push harder, knowing your engine is in control.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

PRO FEATURES

MORE THAN JUST
BOOST CONTROL

The new PLEX EXP-Boost goes beyond standard boost management, offering a fully integrated approach to performance control. It seamlessly combines a fully configurable advanced boost controller with flexible inputs and power distribution management.
Electric Fan & Pump Control

Maintain optimal temperatures with intelligent activation of cooling fans and pumps, ensuring efficiency and reliability under all conditions

Electric Blow-off Valve Control

Achieve sharper throttle response and reduced turbo lag with precise, programmable control of electronic blow-off valves.

Water Injection Control

Enhance performance and knock resistance by dynamically managing water/methanol injection based on boost, RPM, or other critical inputs.

Fully Customizable CAN Bus Receive & Transmit

Enable seamless communication with ECUs, dash displays, and other CAN Bus-equipped devices by configuring custom messages for data exchange, actuator control, and real-time system monitoring

PLEX DEVICE MANAGER 2.0

YOUR CONTROLLER. YOUR WAY.

Advanced Configuration at Your Fingertips.

BOOST CONTROL SETUP

Easily configure boost control for any turbo setup, whether you're running a single solenoid with an internal wastegate or dual electronic wastegates.

BOOST MAPS

Each boost map defines the settings needed for a specific boost control strategy. You can create multiple maps and switch between them instantly to match different driving conditions or performance needs.

BOOST DATA CHANNELS

Monitor key boost control data in real time, giving you the insights needed to fine-tune parameters for optimal performance and response.

EASY TO NAVIGATE
SETUP TREE INTERFACE

A hierarchical tree-list interface offers an intuitive and organized way to access all device configuration options. This logical flow simplifies complex setups, allowing users to navigate effortlessly through various configuration layers.

COMMON USER INTERFACE
FOR ALL PLEX DEVICES

The PDMv2 provides a unified interface across all PLEX devices, from dashboards to tuning tools. This consistency ensures easy switching between devices and streamlines configuration with a shared layout and features.

WYSIWYG DASH PAGE
LAYOUT DESIGN

Enjoy a ``What You See Is What You Get`` dash page layout, allowing for easy offline design with accurate page previews. Data simulation ensures users can see exactly how their dashboards will look and function, providing full confidence in the final setup.

TRULY FAST CONFIGURATION

Speed up the configuration process with easy filtering of selection lists, keyboard shortcuts, and copy-paste functionality. These tools help streamline & accelerate setup, minimizing time spent on repetitive tasks.

REAL-TIME CAN MSG STREAMING

Transform your device into a powerful CAN bus diagnostic tool with real-time streaming of incoming raw CAN messages. View all incoming data instantly, and transmit user-defined CAN messages on demand for advanced troubleshooting and system testing.

BUILT-IN TEMPLATES

The software comes preloaded with a comprehensive library of CAN protocol templates for seamless connection to most aftermarket ECUs. It also includes sensor templates for common engine sensors, allowing for quick and easy setup without manual configuration.

PLEX PDA-WIN®
DATA ANALYSIS
& VISUALISATION SW

Outsmart The Track

CUSTOMIZABLE UI

User defined layout of tabs and panels with handy docking similar
to latest Windows SW suite and also light & dark modes.

FAST KEYBOARD SHORTCUTS

Main menu and panel functions shortcuts speed up the set-up time and the dynamic real-time analysis considerably.

MULTIPLE GRAPHS & PANELS

A wide array of chart types lets you visualise large amounts of data into an easy to understand formats and bring out insights at a glance.

EASY FILE COMPARISON

Seamlessly switch between single and comparison view even for completely different file types such as a dyno run with a track lap.

LIVE DATA UPDATING

Zoom levels & cursors are synchronized across all analysis panels and graphs, enabling auto rescaling and seamless cross-referencing of data.

SMART TUNING MAPS

Configurable cell graphs with information directly transferable to the ECU calibration maps that help you optimise your fuel and ignition maps.

DETAILED SPEC

Physical
Dimensions (mm) w 54 x h 17/34 x d 87
Weight 130g
Connector(s) TE Superseal-26
Sealing/Ingress Protection IP67
Material CNC machined aluminum
Electrical Data / Operating Conditions
Supply Voltage Range 9-18V DC
Current Consumption max. 60A at 12V
Temperature Range -20 to +100 degC
Communitations
CAN Bus 1x (250kb – 1.333Mb)
RS-232 tbc
K-Line tbc
USB 1 (for configuration & data transfer)
Inputs/Outputs

INPUTS

Analog/Digital/Frequency 0-5V 3
Analog/Digital/Frequency 0-16V 1
Thermocouple 2x type K

OUTPUTS

FULL BRIDGE 2 (8A max)
POWER High Side 4 (15A cont, 30A surge)
RGB 1
Internal Sensors
Manifold Pressure 5bar abs
Barometric Pressure yes
Real Time Clock with battery backup
Device/Sensor Voltage Monitor +12V supply/+15V sensor supply
Device Temperature Sensor Yes
Data Logging
Memory not available
Max. Log Rate 100Hz
Engine Log Persistent Odometer, Trip & User Channel min/max
Alarms Log pending
Data Channels
Max. Data Channels up to 160
Max. Flag Channels up to 160
Internal Calculations
2D Tables 4
Counters/Timers 4
Easy Alarms alarms with predefined functionality for easy setup
Math Channels 16
Bit Combine Fields 4
Control Functions
Closed Loop Boost with PID yes
Boost Presets 4
Boost Target 2D Correction Maps 4
Boost Target 3D Correction Maps 1
Power Distribustion with SW Defined Fuses 4x POWER Outputs
Electric Blow-off Valve yes
Water Injection yes

DEVICE COMPATIBILITY

ECUs - Aftermarket
Adaptronic
AEM
  • Infinity
  • Series 2
Bosch Motorsport
  • MS3
  • MS40
Carrot
DTA
  • S Series
  • T Series
ECUMASTER
  • EMU Black
  • Classic
  • Pro
EFI
  • EFR18
  • Euro1
  • Euro4
  • Euro6
  • Euro8
Electromotive TEC
Emerald
  • K3
  • K6
Emtron
E-Race Black
GEMS
Haltech
Hondata
  • Kpro
  • S300
KMS
  • MD35
Life Racing
LINK
  • G3
  • G4
  • G4X
MAXX
MARELLI
Mectronic
  • MKE1
  • MKE4
  • MKE6
  • MKE7
Megasquirt
Microtech
  • v2.0
MMe
  • ECU481
MOTEC
  • M400
  • M600
  • M800
  • M1 Series
Pectel
  • EQ10
  • SQ6
Specialist
Components
SYVECS
  • S6
  • S7
  • S8
Triject
ECUs - OEM
BMW M2/M4
MItsubishi Evo X
Toyot GT86
ECUs - Generic OBDII/UDS
OBD – CAN ISO15765
OBD – MODE 22 MANUFACTURER SPECIFIC PIDS
OBD – UDS
J1939
NMEA2000
PDUs
PDU Ecumaster
PDU HP Elektronic
PDU Life Racing
PDU Motec
PDU Syvecs
PDU Tremondi
PDU MSEL Master Relay
Auxiliary Devices
ABS Bosch Motorsport M4/M5
DCU Motec MDC/MDC2
KEYPAD Blink Marine
KEYPAD Tremondi
LAMBDA AEM
LAMBDA Ecumaster
LAMDA Haltech
LAMBDA Link
LAMBDA Motec
SENSOR AEM Thermocouple Amplifier
SENSOR KMS Thermocouple Amplifier
SENSOR KMS Flex Fuel
SENSOR KMS Speed Sensor
SENSOR Motec E888
SENSOR Syvecs Thermocouple Amplifier
SENSOR TEXENSE IRN4C/IRN8C/THN4X
SENSOR AIM TPMS
SENSOR IZZE TPMS
TCU XAP ESHIFT2

QUESTIONS? ANSWERS.

Documentation
Datasheet download
Pin-out Diagram pending
Mounting Diagram pending
User Manual pending
Software
PLEX Device Manager 2.0 download
PLEX Data Analysis 2.0 (PDA-WIN) download
What's In the Box?
1. Device
2. TE Superseal-26 Connector with Pins Yes
3. Wiring Loom optional

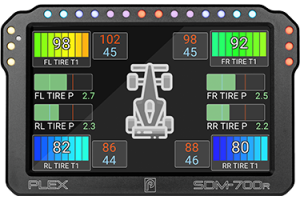

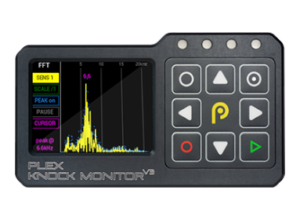

MORE PLEX PRODUCTS
