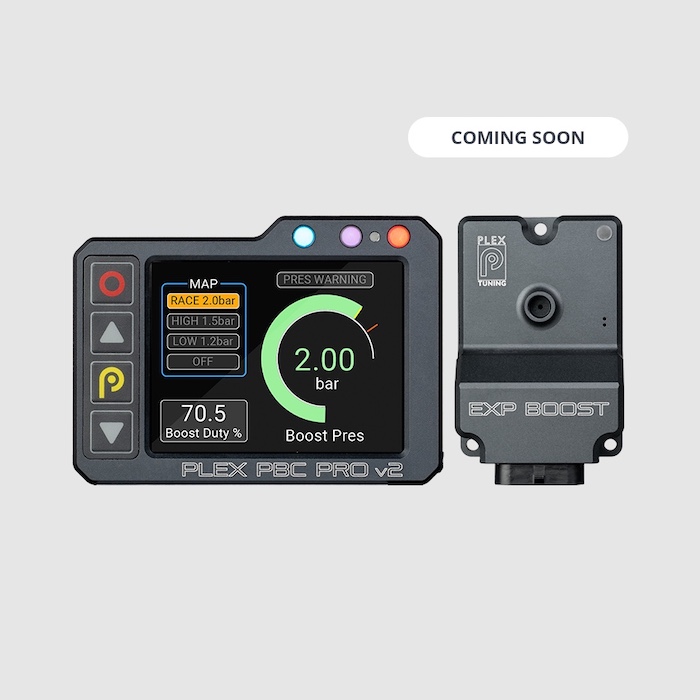

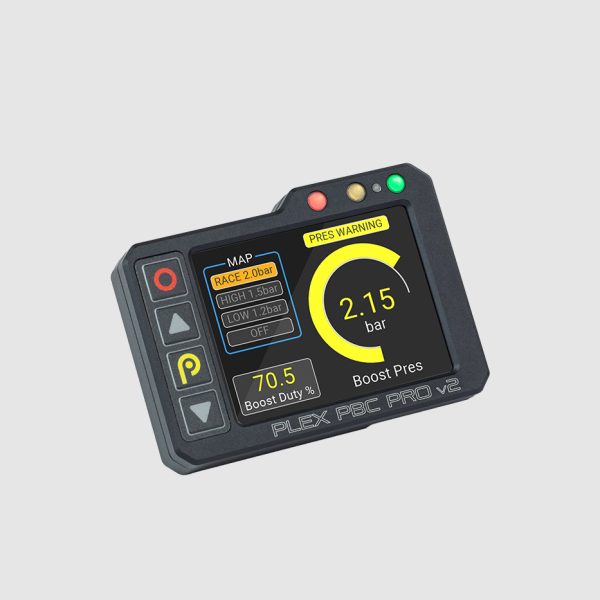

PLEX PBC v2® KIT

Boost Control Redefined.

Fully configurable electronic boost controller that combines advanced closed-loop control, intelligent correction strategies, and powerful actuator management, to offer you the perfect balance of power, accuracy, and engine protection. All-in-one Pro version adds real-time performance monitoring (GNSS), advanced control & datalogging.

SKUs: pbc-pro-ii-kit-b | pbc-pro-ii-kit-hd
Basic
Pro
Clear

Add-Ons/Replacement Parts

This product is Coming Soon.

Be the first to know when we launch and get notified for the special pre-order discount!

WORLD'S BEST BOOST CONTROLLER

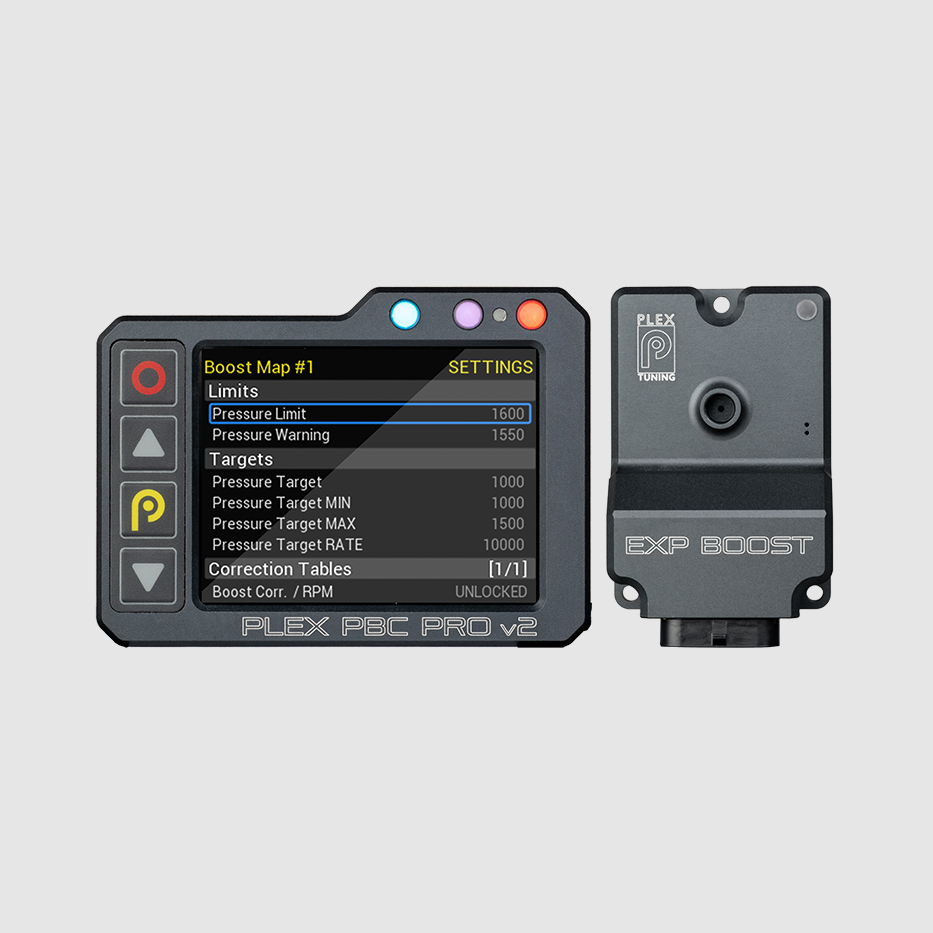

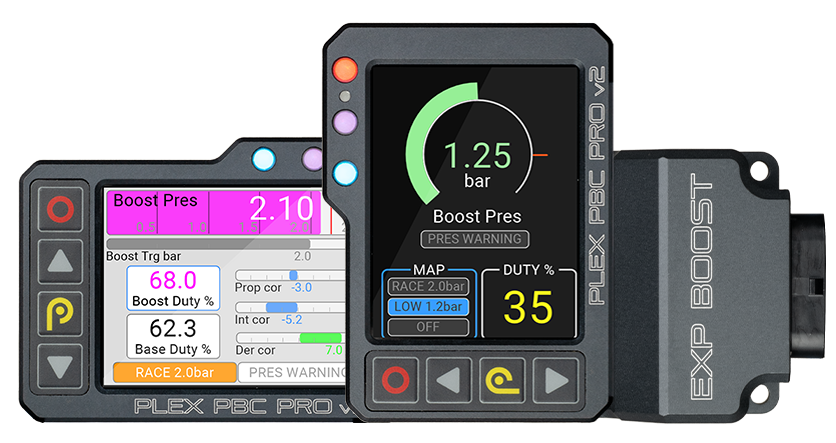

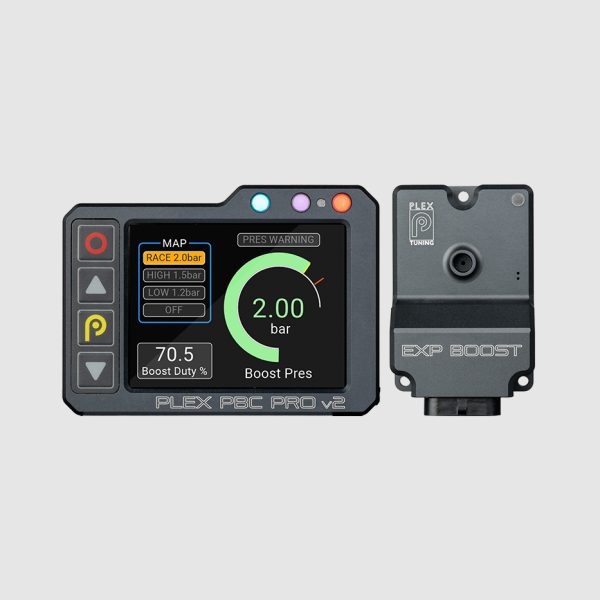

PLEX PBC v2® KIT

ALL NEW. POWERFUL. PRO.

For over a decade, our electronic boost controllers have set the standard for precision and reliability. Now, with a dual-module design, installation is cleaner, and performance is even better.

The Master Unit provides real-time data and control, while the Slave Unit, mounted near the engine, handles solenoids, wastegates, and key sensors—reducing wiring and simplifying setup.

With advanced closed-loop control, multiple boost strategies, and seamless integration, the PBC v2 Kit delivers unmatched precision and power.

The Pro version goes beyond boost control, adding a fully configurable digital dash logger and real-time performance monitoring for total turbo system control.

Ready to take charge? 🔧🚀

KEY FEATURES

FLEXIBLE BOOST STRATEGIES

Multiple boost presets with correction maps, enabling complex strategies like boost per gear, speed, throttle position (TPS), time, and more.

ADVANCED ACTUATOR CONTROL

Supports up to two solenoid valves or electric wastegates, enabling precise, responsive, and adaptive boost management.

CONFIGURABLE CLOSED-LOOP CONTROL

Advanced PID and feedforward control for accurate and stable boost regulation under any conditions.

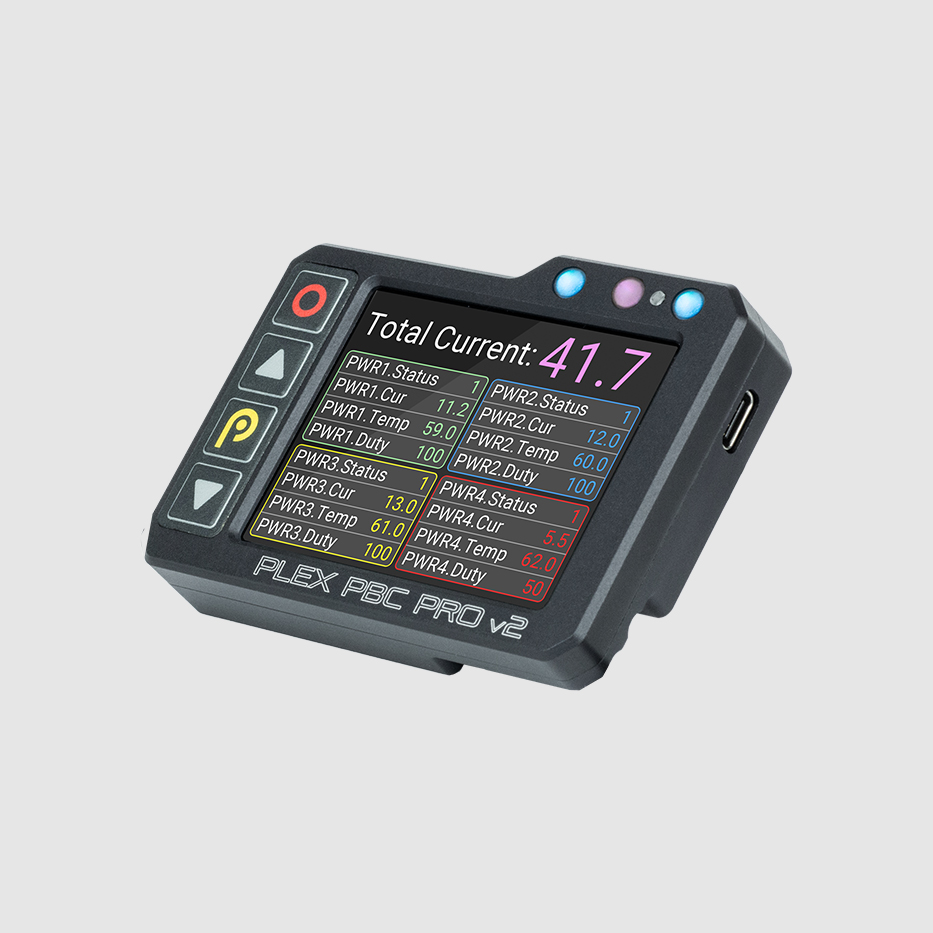

HIGH-POWER OUTPUTS

4x 15A power outputs to control auxiliary devices such as pumps, fans, solenoids, and advanced functions like intercooler fans, water injection, fuel pumps, and electric blow-off valves.

VERSATILE INPUTS

- 4 multipurpose inputs (analog, digital, or frequency) for additional sensor data and expanded functionality.
- 2 Type-K thermocouple inputs for EGT monitoring or other high-temperature measurements.

INTEGRATED SENSORS

Built-in reliable 5-bar MAP sensor and barometric pressure sensor for real-time environmental compensation.

SUPERB 2.8” IPS DISPLAY

Ultra-bright 900 nits, high-contrast IPS screen with auto-dimming and touch functionality for optimal visibility in all conditions.

HIGH QUALITY ENCLOSURE

Durable anodized CNC aluminum housing with IP64 weather protection and a flat-back design for easy, secure mounting.

FULLY CONFIGURABLE

Create custom pages & tailor your setup with configurable CAN Bus receive and transmit options, along with customizable inputs, outputs, and alarms.

CLEAN QUICK-GLANCE™ UI

Our proprietary UI design ensures optimal viewing ergonomics, minimizing driver distraction for quick, clear data at a glance.

BUILT-IN MULTI-GNSS*

Enjoy concurrent GNSS satellite reception (GPS, Glonass, Baidu, Galileo) for precise performance measurements and predictive lap timing.

SMART DATA LOGGING*

Equipped with built-in flash memory, the PBC v2 can log up to 128 different data channels for detailed post-analysis using PLEX software.

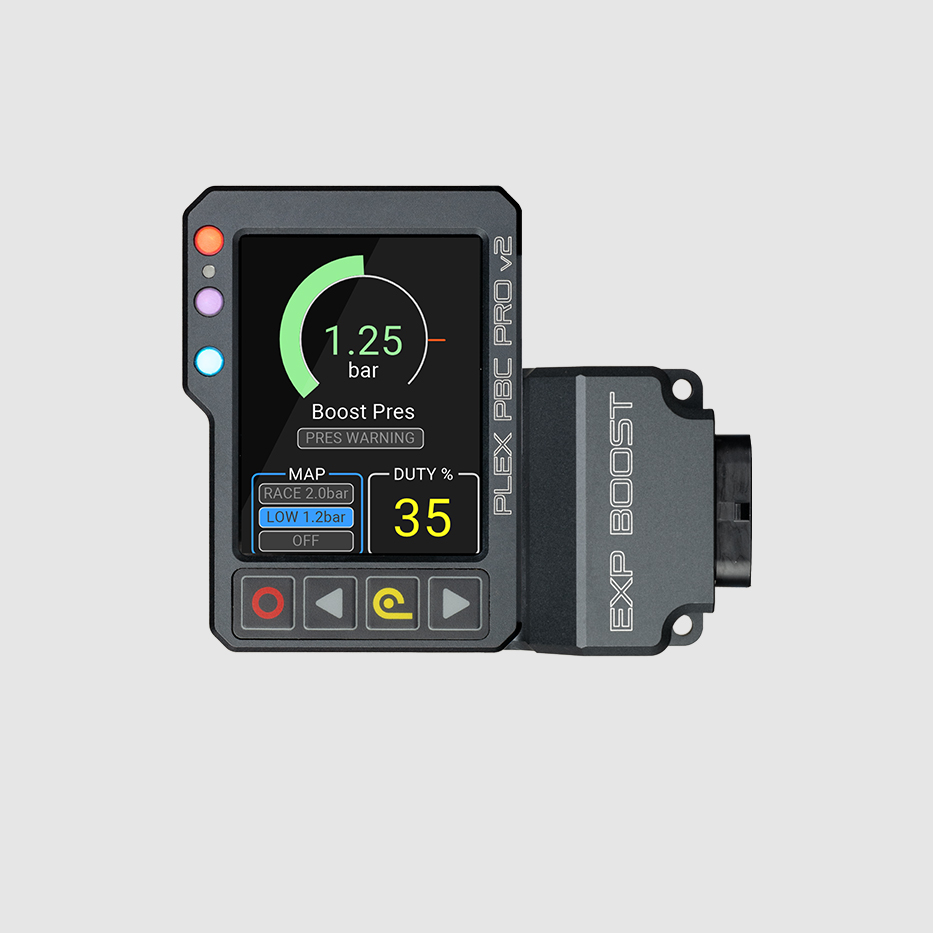

DUAL ORIENTATION

Flexible installation options allow for both horizontal and vertical orientations, ensuring optimal viewability with an equivalent page layout in either position.

MEMBRANE KEYPAD

Featuring a membrane keypad with configurable functions, the PBC v2 delivers solid tactile feedback for a reliable user experience.

BUILT TO LAST

Constructed with high-quality components, the PBC v2 offers frequent firmware and feature updates, backed by robust support to ensure longevity and reliability.
DOWNLOAD DATASHEET

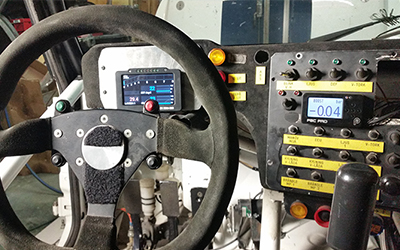

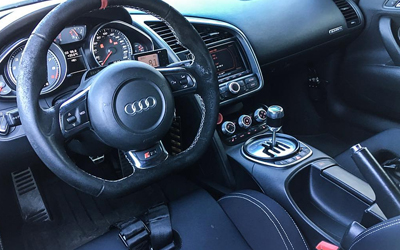

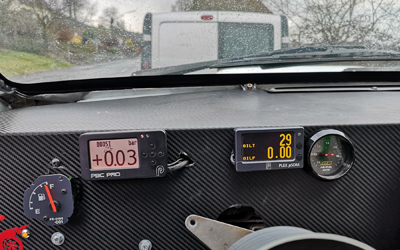

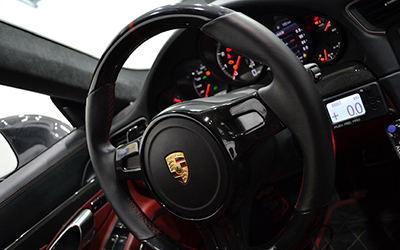

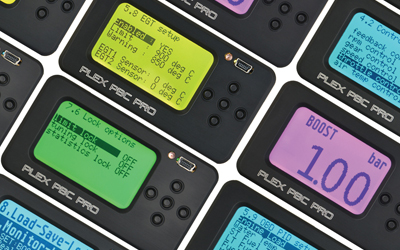

BUILDING ON A LEGACY

More than 12 years ago, we developed our first electronic boost controller, setting new standards in functionality and reliability. Since then, we’ve continued to lead the market with multi-functional, high-performance devices trusted by professionals and enthusiasts alike.

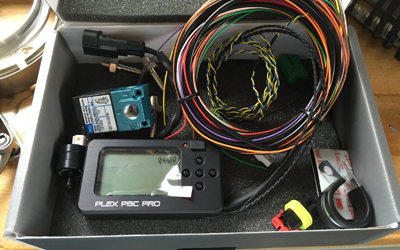

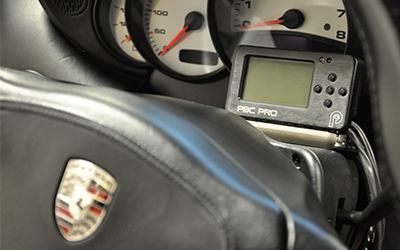

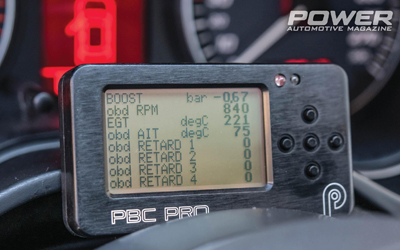

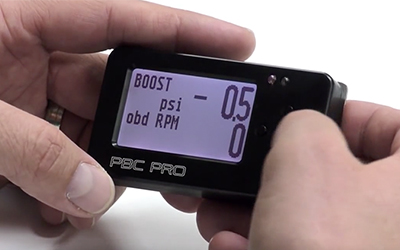

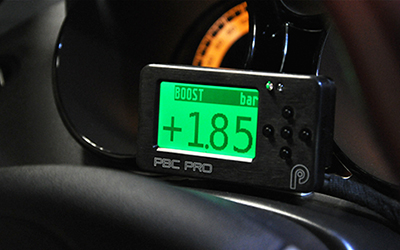

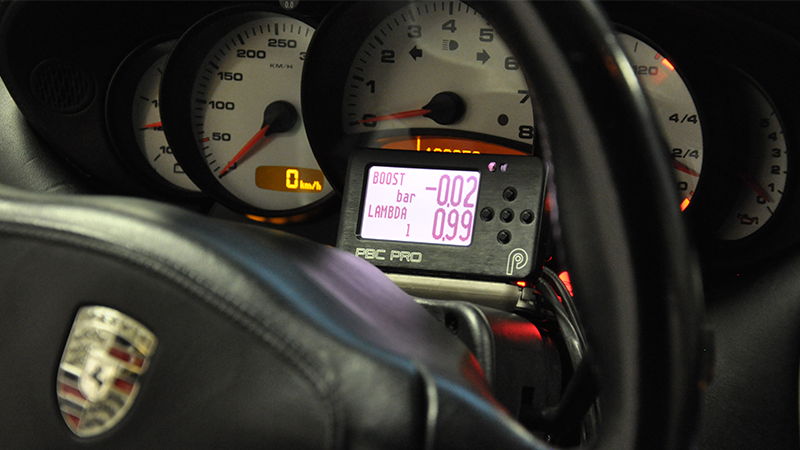

The original PLEX PBC PRO was a game-changer—the first OBDII CAN Bus-equipped boost controller, introducing features never seen before: simultaneous 6-dimensional control, EGT warnings & limits, AFR display, engine protection relay output, and more.

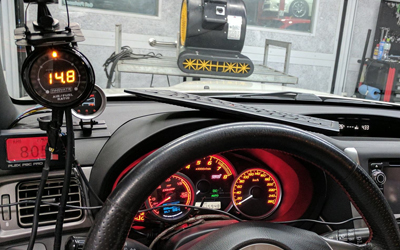

In 2015, we pushed the boundaries even further, introducing an iteration with a mini-USB port for firmware updates, enhanced hardware (improved displays, ergonomics), and new features such as boost histogram logging, EGT warning & limit function, non-volatile peak-hold memory, advanced diagnostics, and expanded compatibility with TFSI engines and Porsche turbo models.

Now, the PBC PRO v2 takes everything to the next level—continuing our legacy of innovation, precision, and cutting-edge boost control.

Cutting Edge. Practical. Future Proof.

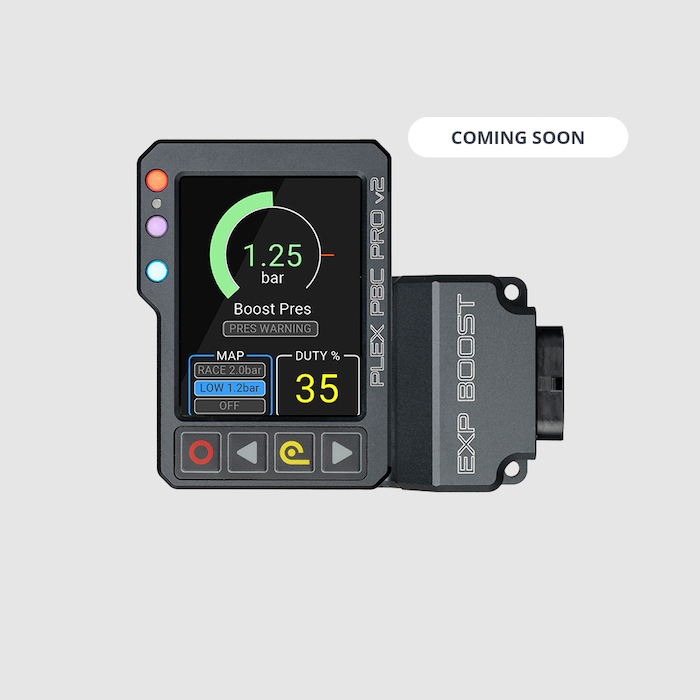

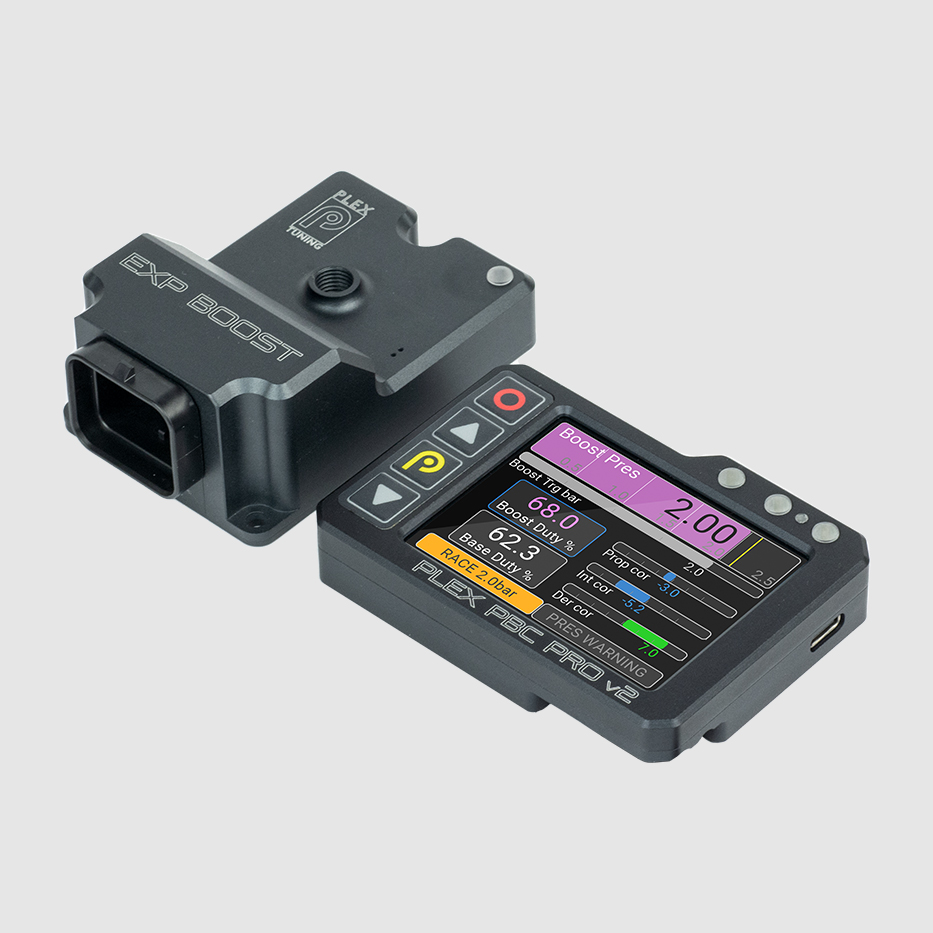

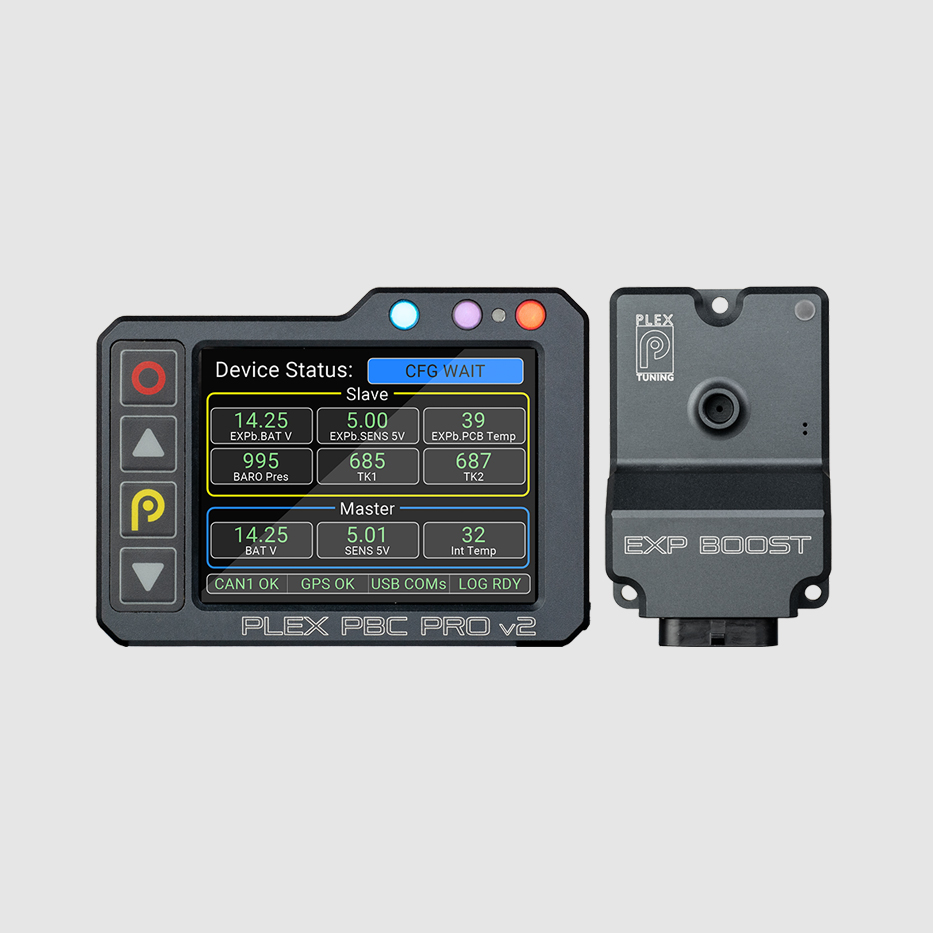

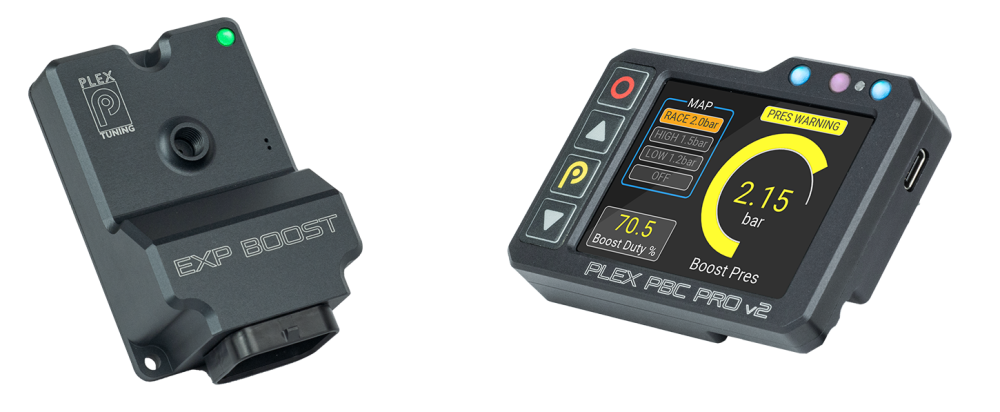

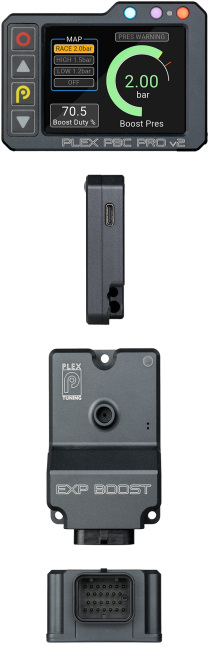

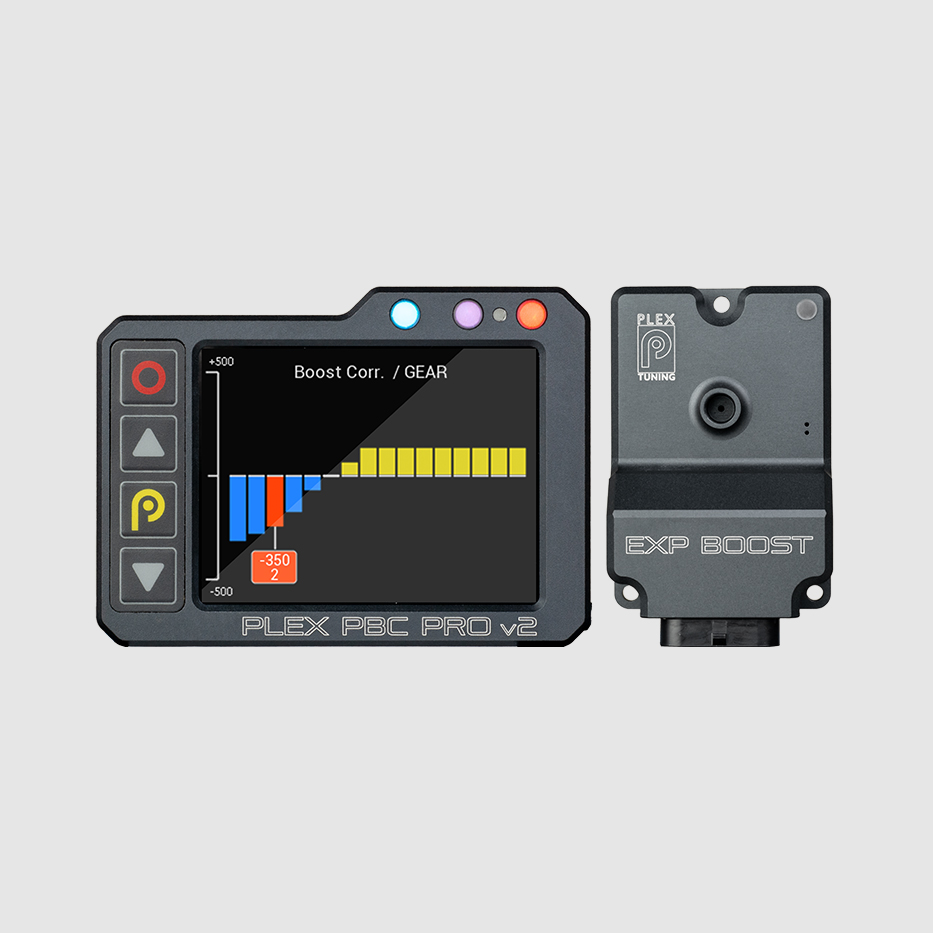

THE NEW DUAL-MODULE HARDWARE CONCEPT.

Engineered for performance and seamless integration, the new dual-module architecture separates control and display functions for optimal placement, simplified wiring, and enhanced reliability. The Master Unit keeps vital data at your fingertips and manages the controlling, while the Slave Unit, mounted near the engine, ensures precise boost control and auxiliary management—delivering the best of both worlds.

Built-in Map Sensor

High-quality integrated 5bar manifold absolute pressure sensor.

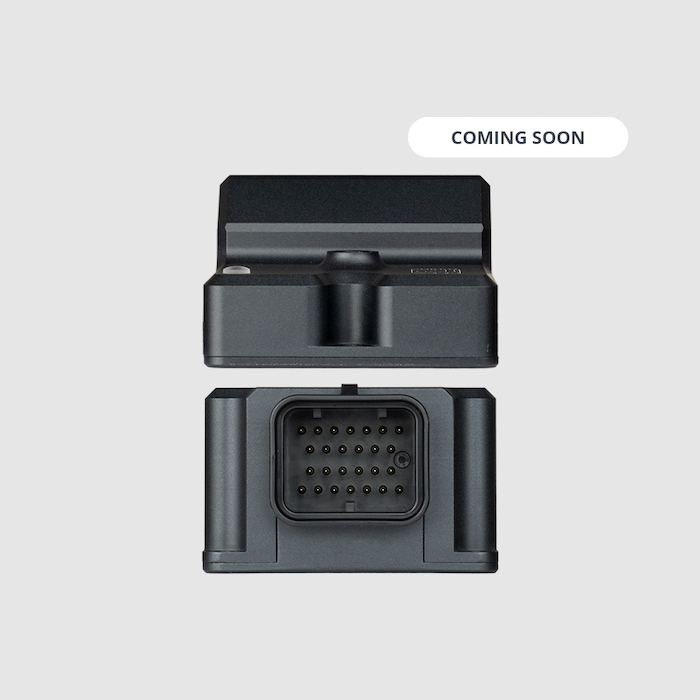

Sealed Connector

26Pin Weather Sealed TE Superseal Connector

Built-in Barometric Sensor

Automatically compensates for altitude and atmospheric pressure changes, ensuring precise and consistent boost control in all conditions

Three RGB LED Lights

Fully configurable RGB LED lights can be programmed for device status or custom functions/notifications.

Custom UI

Build your own custom pages or select from the pre-defined templates. Be your own master.

USB-C

Fast data-transfer port for configuration and datalog file transfer*.

Built-in Memory

32GB built-in flash memory (Pro ver.)

Touch Screen

The higly responsive capacity touch screen let’s you scroll through the display pages easily.

GPS Antenna Port

Built-in concurrent multi-GNSS for precise peformance measurements and lap timing (PRO version).
Practical.
Cutting-edge.
Future-proof.

THE NEW
DUAL-MODULE HARDWARE CONCEPT.

Engineered for performance and seamless integration, the new dual-module architecture separates control and display functions for optimal placement, simplified wiring, and enhanced reliability. The Master Unit keeps vital data at your fingertips and manages the controlling, while the Slave Unit, mounted near the engine, ensures precise boost control and auxiliary management—delivering the best of both worlds.

RGB LED Lights

Three configurable RGB LED lights can be programmed for device status and boost warnings/alerts.

2.8`` IPS TFT Touch Display & Custom UI

View boost status clealy in real time via the new wide-angle IPS display. Configure display pages according to your preferences.

Built-in Datalogging*

32GB flash memory for seamless and convenient datalogging (PRO version)

Industrial Quality Membrane Keypad

Highly-ergonomic membrane keypad let you control the device easily.

Built-in Map Sensor

High-quality integrated 5bar manifold absolute pressure sensor.

Built-in Barometric Sensor

Automatically compensates for altitude and atmospheric pressure changes, ensuring precise and consistent boost control in all conditions

Sealed Connector

26pin weather-sealed TE Superseal connector.

GPS Antenna Port

Built-in concurrent multi-GNSS for precise peformance measurements and lap timing (PRO version).

USB-C Port

Fast data-transfer port for configuration and datalog file transfer (PRO version).

Audio Output

3.6mm audio jack. Plug-in your headset and list to knock in raw or filtered format.
PEAK POWER. PERFECT CONTROL.

MANAGE BOOST WITH ACCURACY
AND PROTECTION FOR OPTIMAL POWER
AND ENGINE RELIABILITY

Whether you're chasing peak performance on the track or ensuring consistent, safe operation on the road, our system gives you the confidence to push harder, knowing your engine is in control.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

ADAPTIVE MULTI-INPUT CONTROL

Apply real-time pressure corrections using multiple inputs such as engine speed, vehicle speed, gear, time, throttle position, air temperature, and barometric pressure for optimized performance in any condition.

SMART ENGINE PROTECTION

Safeguard your engine by automatically cutting boost when temperature, pressure, or AFR exceeds safe limits, preventing damage before it happens.

EXPANDED COMPATIBILITY

Control a wide range of components, including solenoid valves, electric wastegates, blow-off valves, relays, fans, and pumps—offering maximum versatility for any setup.

CLEAN AND FUNCTIONAL UI

View what matters most—when it matters most. Our proprietary UI design, combined with extensive visual customization options, ensures optimal readability and minimal driver distraction, delivering critical data quickly and clearly at a glance.
    PRO VERSION

    MORE THAN JUST
    BOOST CONTROL

    The new PLEX PBC v2 PRO goes beyond standard boost management, offering a fully integrated approach to performance control. It seamlessly combines a fully configurable data display, performance meter, and advanced boost controller into a single, powerful unit.

    Not only will you manage boost with greater precision, but you'll also gain real-time insights into your engine’s performance, optimize key parameters on the fly, and unlock new levels of efficiency and power. With built-in smart features and expanded functionality, the PBC v2 PRO is more than a boost controller—it’s your complete performance hub.

    PRO VERSION ONLY

    BUILT-IN MULTI-GNSS

    FULL-BLOWN, ALWAYS-ON
    PERFORMANCE METER

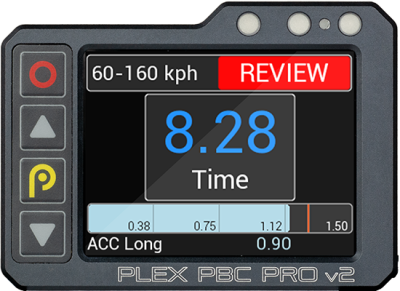

    The PLEX PBC V2 PRO features an advanced performance meter mode that automatically tracks a variety of common acceleration tests. Data can be viewed in real-time or analyzed later using the PLEX Data Analysis Software, ensuring you have the insights you need to enhance your performance.

    ACCELERATION TESTS
    0-60, 0-100, 100-200 km/h or mph
    0-400, 0-1000, VMAX, Peak G and more

    DECELERATION / BREAKING TESTS
    60-0, 100-0, 200-0 and 300-0 km/h or
    mph and also custom tests.

    DRAG CHRISTMAS TREE
    Measure your reactions and practise your starts.

    LIVE DRAGE METER
    Monitor your progress down the dragstrip in real-time.

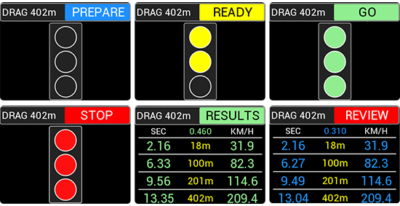

    PLEX uSDM-200-DLG Micro dash display and logger page layouts for the drag meter functionality
    PRO VERSION ONLY

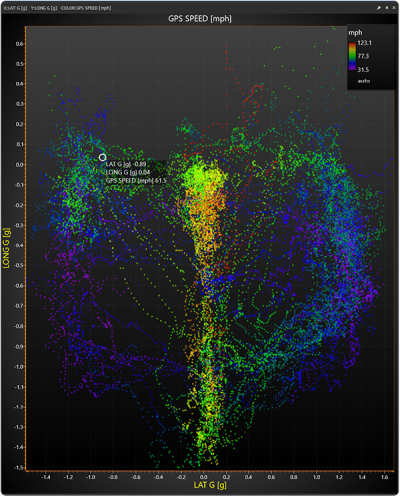

    100Hz 6-AXIS IMU

    ACCURATE VEHICLE
    DYNAMICS ANALYSIS

    A built-in 100Hz 6-axis Inertial Measurement Unit (IMU) enables precise measurements of vehicle motion, capturing real-time data on acceleration, braking, cornering, and other dynamic movements. This ensures highly accurate vehicle dynamics analysis, providing critical insights for performance optimization.

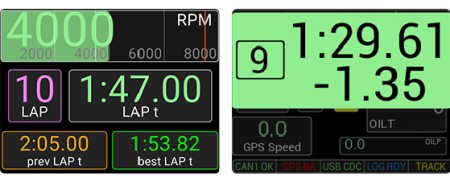

    uSDM-200 display page layouts for lap-timing with rolling status and lap notifications
    PRO VERSION ONLY

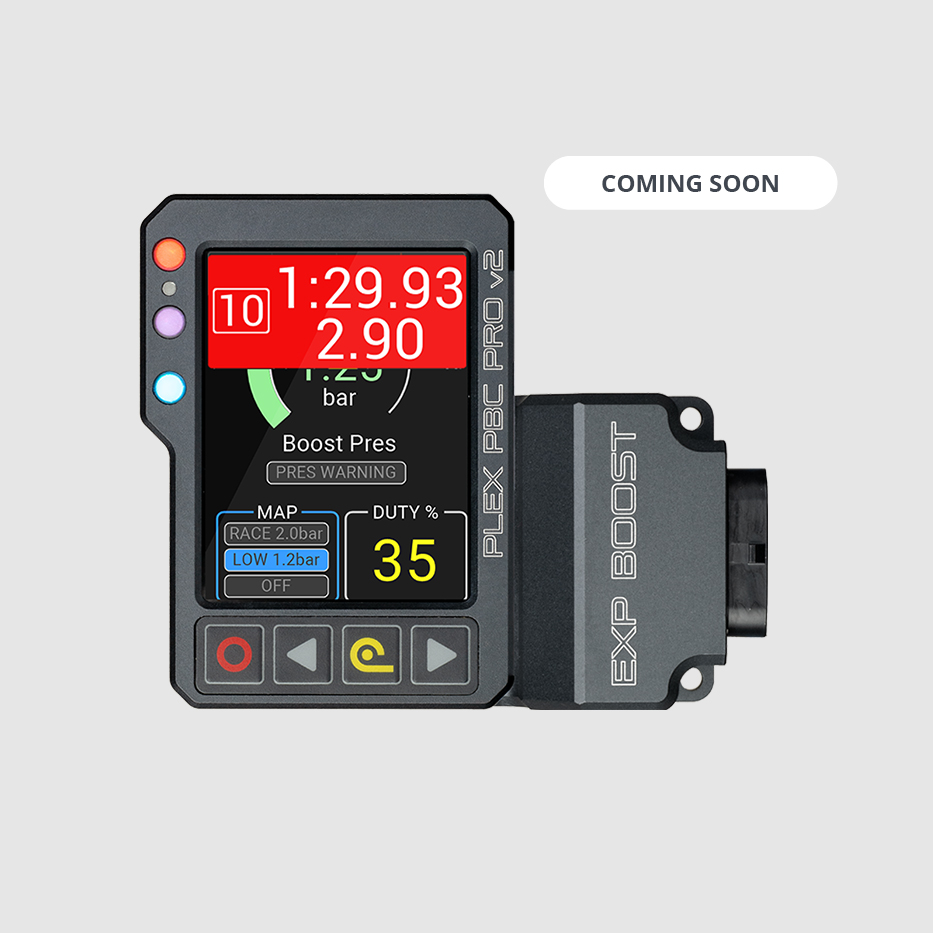

    PREDICTIVE LAP TIMING
    WITH INSTANT DRIVER
    FEEDBACK

    Optimize your performance and lap times by adjusting your lines, braking points, and speed in real time. The PBC V2 PRO’s built-in concurrent multi-GNSS module provides rapid, position-based data, delivering timely and intuitive lap notifications to help you continuously improve your driving.

    FLEXIBLE SET-UP
    Easily define your preferences for viewing lap time data. Enable the “New Lap” pop up message and/or create custom pages to show all Lap Timing related channels.

    REALTIME LAP DELTA DISPLAY
    Use the realtime predicted time difference from your best lap for instant evaluation of your driving performance.

    AUTO RACE TRACK DETECTION
    When you are within approximately 2km of a pre-loaded track, the uSDM-200 will automatically load the corresponding track data.

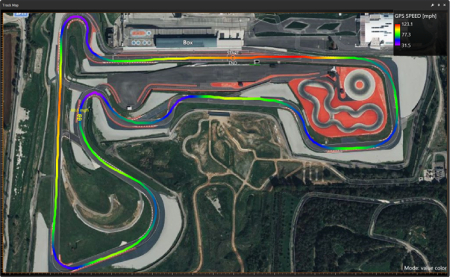

    ADVANCED POST ANALYSIS
    Analyse your circuit performance with a combination of data channels in our intuitive data-analysis software that comes for free with our displays.

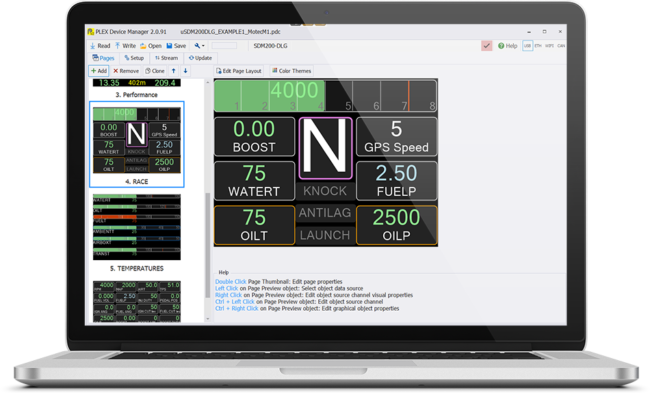

    PLEX DEVICE MANAGER 2.0

    YOUR CONTROLLER. YOUR WAY.

    Advanced Configuration at Your Fingertips.

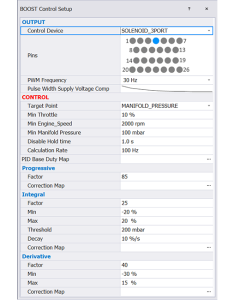

    BOOST CONTROL SETUP

    Easily configure boost control for any turbo setup, whether you're running a single solenoid with an internal wastegate or dual electronic wastegates.

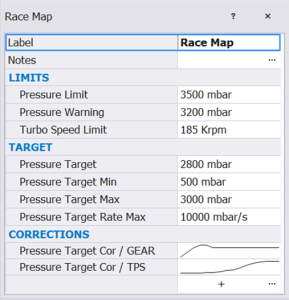

    BOOST MAPS

    Each boost map defines the settings needed for a specific boost control strategy. You can create multiple maps and switch between them instantly to match different driving conditions or performance needs.

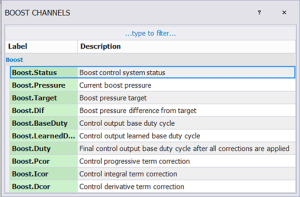

    BOOST DATA CHANNELS

    Monitor key boost control data in real time, giving you the insights needed to fine-tune parameters for optimal performance and response.

    EASY TO NAVIGATE
    SETUP TREE INTERFACE

    A hierarchical tree-list interface offers an intuitive and organized way to access all device configuration options. This logical flow simplifies complex setups, allowing users to navigate effortlessly through various configuration layers.

    COMMON USER INTERFACE
    FOR ALL PLEX DEVICES

    The PDMv2 provides a unified interface across all PLEX devices, from dashboards to tuning tools. This consistency ensures easy switching between devices and streamlines configuration with a shared layout and features.

    WYSIWYG DASH PAGE
    LAYOUT DESIGN

    Enjoy a ``What You See Is What You Get`` dash page layout, allowing for easy offline design with accurate page previews. Data simulation ensures users can see exactly how their dashboards will look and function, providing full confidence in the final setup.

    TRULY FAST CONFIGURATION

    Speed up the configuration process with easy filtering of selection lists, keyboard shortcuts, and copy-paste functionality. These tools help streamline & accelerate setup, minimizing time spent on repetitive tasks.

    REAL-TIME CAN MSG STREAMING

    Transform your device into a powerful CAN bus diagnostic tool with real-time streaming of incoming raw CAN messages. View all incoming data instantly, and transmit user-defined CAN messages on demand for advanced troubleshooting and system testing.

    BUILT-IN TEMPLATES

    The software comes preloaded with a comprehensive library of CAN protocol templates for seamless connection to most aftermarket ECUs. It also includes sensor templates for common engine sensors, allowing for quick and easy setup without manual configuration.
    LEARN MORE
    DOWNLOAD SOFTWARE

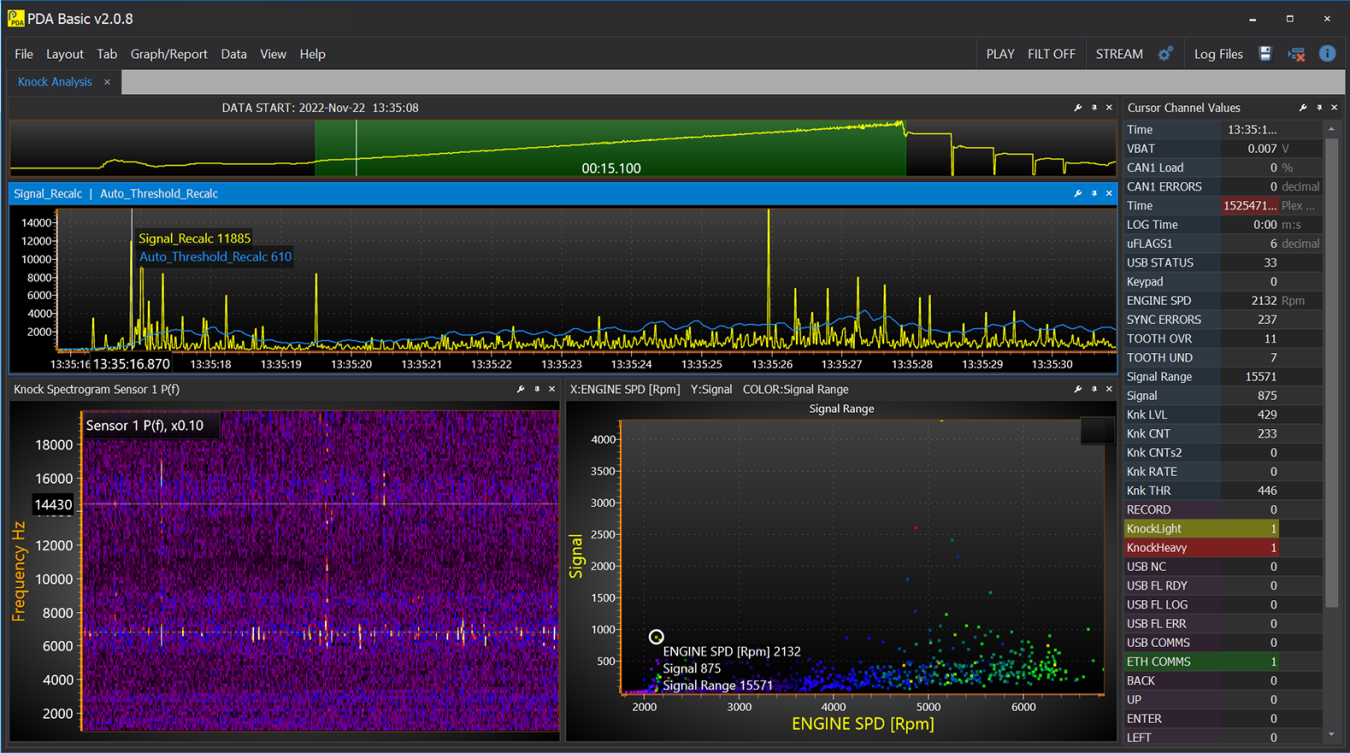

    PLEX PDA-WIN®
    DATA ANALYSIS
    & VISUALISATION SW

    Outsmart The Track

    CUSTOMIZABLE UI

    User defined layout of tabs and panels with handy docking similar
    to latest Windows SW suite and also light & dark modes.

    FAST KEYBOARD SHORTCUTS

    Main menu and panel functions shortcuts speed up the set-up time and the dynamic real-time analysis considerably.

    MULTIPLE GRAPHS & PANELS

    A wide array of chart types lets you visualise large amounts of data into an easy to understand formats and bring out insights at a glance.

    EASY FILE COMPARISON

    Seamlessly switch between single and comparison view even for completely different file types such as a dyno run with a track lap.

    LIVE DATA UPDATING

    Zoom levels & cursors are synchronized across all analysis panels and graphs, enabling auto rescaling and seamless cross-referencing of data.

    SMART TUNING MAPS

    Configurable cell graphs with information directly transferable to the ECU calibration maps that help you optimise your fuel and ignition maps.
    LEARN MORE
    DOWNLOAD SOFTWARE

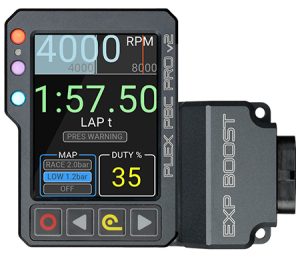

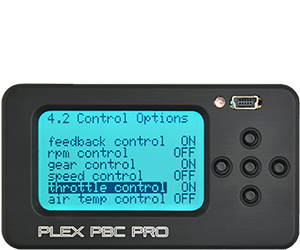

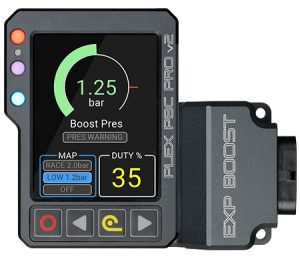

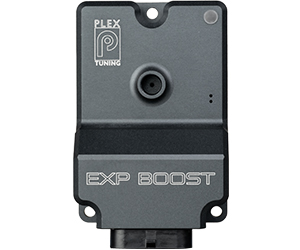

    CHOOSE THE RIGHT VERSION

    PLEX PBC PRO (V1) PLEX PBC V2 PLEX PBC V2 PLEX EXP-Boost
    (Discontinued) BASIC Version PRO Version Standalone
    Display 2.4" LCD RGB Colour Backlight 2.8" RGB TFT IPS Sunlight Readable with touch interface 2.8" RGB TFT IPS Sunlight Readable with touch interface 2.8" RGB TFT IPS Sunlight Readable with touch interface
    Custom UI n/a
    Data Channels Limited 128 160 160
    Custom CAN BUS n/a
    Datalogging n/a Only with PC
    GPS / GNSS n/a n/a
    Inertia Measurement n/a n/a
    Lap Timing n/a n/a
    Performance Meter n/a n/a
    Inputs / Outputs 2x ANA, 2x EGT IN: 4x Multi-purpose (dig / ana / freq) & 2 EGT / OUT:2x (8A max), 4x( 15A cont. 30A surge) IN: 4x Multi-purpose (dig / ana / freq) & 2 EGT / OUT:2x (8A max), 4x( 15A cont. 30A surge) IN: 4x Multi-purpose (dig / ana / freq) & 2 EGT / OUT:2x (8A max), 4x( 15A cont. 30A surge)
    Boost Control By Gear, RPM, Speed, Throttle, Air Temp, Time Any Parameter (no limit) Any Parameter (no limit) Any Parameter (no limit)
    Boost Presets 4 4 4 4
    Boost Target Correction Maps n/a 4x 2D 4x 2D, 1x3D 4x 2D, 1x3D
    Power Distribution n/a n/a 4x POWER Ouputs 4x POWER Ouputs
    Elect. Blow-Off Valve n/a n/a
    Water Injection n/a
    Actuators Control 1x Solenoid 1-2 Solenoids 1-2 Solenoids, 1-2 electric wastegates 1-2 Solenoids, 1-2 electric wastegates

    DETAILED SPEC

    Physical

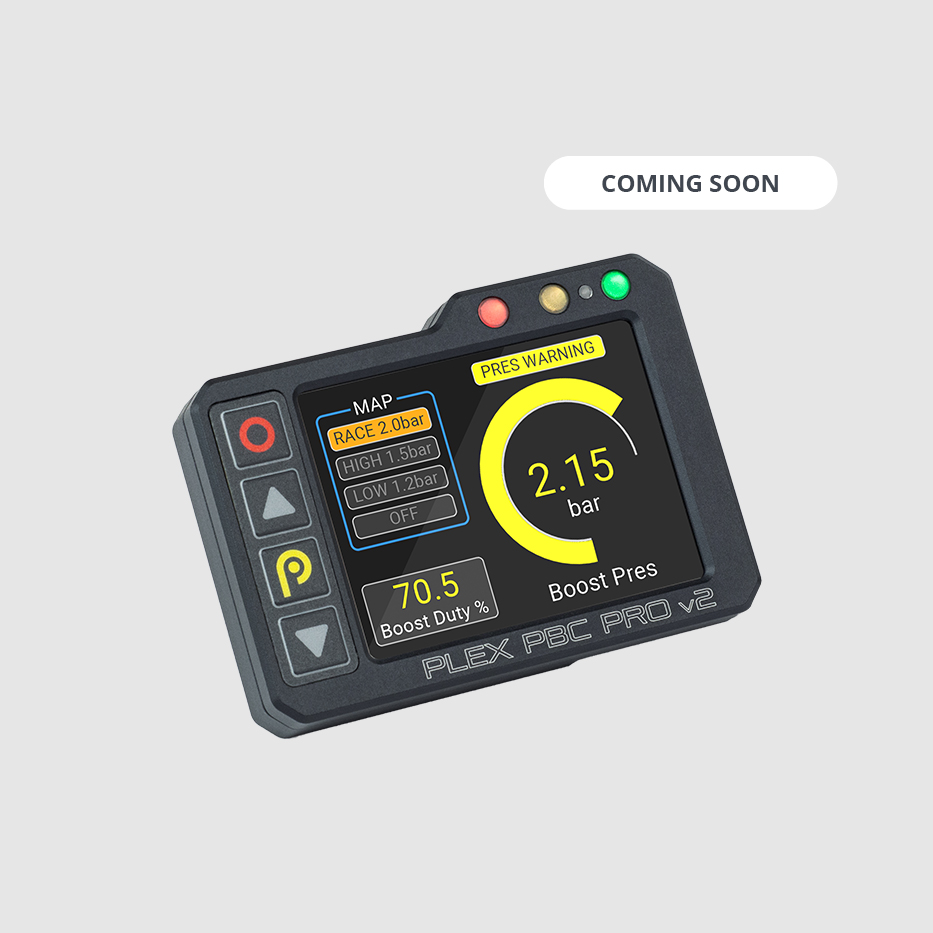

    MASTER UNIT (Display)

    Dimensions (mm) w 86.5 x h 63 x d 16
    Weight 130g
    Connector(s) JWPF
    Sealing/Ingress Protection IP64
    Material CNC machined aluminum

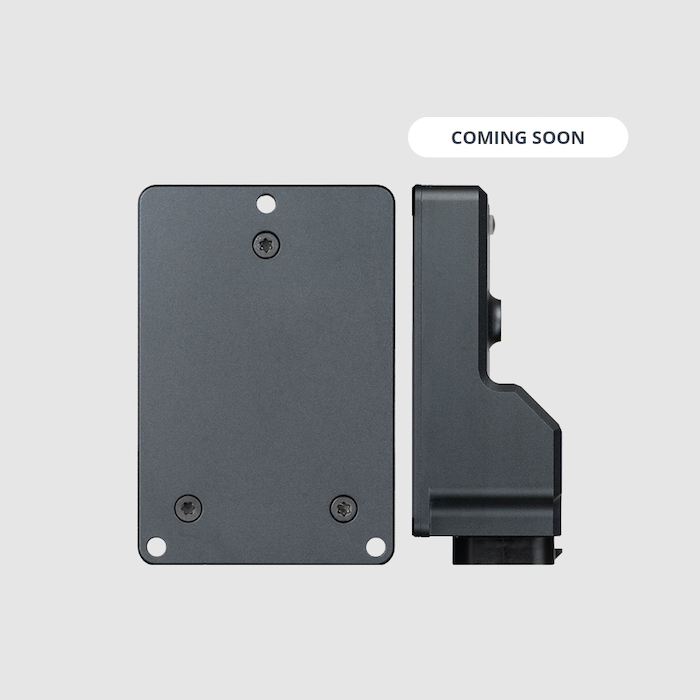

    SLAVE UNIT (EXP-Boost)

    Dimensions (mm) w 54 x h 17/34 x d 87
    Weight 130g
    Connector(s) TE Superseal-26
    Sealing/Ingress Protection IP67
    Material CNC machined aluminum
    Electrical Data / Operating Conditions

    Master Unit (Display)

    Supply Voltage Range 9-18V DC
    Current Consumption max. 0.3A at 12V
    Temperature Range -20 to +60 degC

    Slave Unit (EXP-Boost)

    Supply Voltage Range 9-18V DC
    Current Consumption max. 60A at 12V
    Temperature Range -20 to +100 degC
    Screen
    Type RGB TFT IPS Sunlight Readable with touch interface
    Size (px) 320 x 240
    Brightness 900cd
    Refresh Rate 20Hz
    Display Glass Capacitive touch
    Communitations
    CAN Bus 1x (250kb – 1.333Mb)
    RS-232 tbc
    K-Line tbc
    USB 1 (for configuration & data transfer)
    Inputs/Outputs

    INPUTS

    Analog/Digital/Frequency 0-5V 3
    Analog/Digital/Frequency 0-16V 1
    Thermocouple 2x type K

    OUTPUTS

    FULL BRIDGE 2 (8A max)
    POWER High Side 4 (15A cont, 30A surge)
    RGB 3
    Internal Sensors
    Manifold Pressure 5bar abs
    Barometric Pressure yes
    Real Time Clock with battery backup
    Device/Sensor Voltage Monitor +12V supply/+15V sensor supply
    Device Temperature Sensor Yes
    Ambient Light Sensor Yes
    Inertia Measurement 6-Axis IMU (only PRO version)
    GPS/GNSS 10Hz Multi-GNSS(only PRO version)
    Data Logging
    Memory 32 GB built-in flash
    Max. Log Rate 100Hz
    Engine Log Persistent Odometer, Trip & User Channel min/max
    Alarms Log pending
    Lap Times Log yes (PRO version only)
    Performance Times Log yes (PRO version only)
    Data Channels
    Max. Data Channels up to 128 (BASIC ver.) , up to 160 (PRO ver.)
    Max. Flag Channels up to 128 (BASIC ver.) , up to 160 (PRO ver.)
    User Interface
    # of Pages up to 24
    Custom Page Design yes
    Custom Themes yes
    Auto-page Switching yes
    Pre-loaded Templates/Pages yes
    Keypad 4-button Membrane
    Touch Screen yes
    Internal Calculations
    Lap Times yes (PRO version)
    Lap Prediction yes (PRO version)
    Acceleration Performance yes (PRO version)
    Engine Power & Torque yes (PRO version)
    2D Tables 4
    Counters/Timers 4
    Easy Alarms alarms with predefined functionality for easy setup
    Math Channels 16
    Bit Combine Fields 4
    Control Functions
    Closed Loop Boost with PID yes (PRO version)
    Boost Presets yes (PRO version)
    Boost Target 2D Correction Maps yes (PRO version)
    Boost Target 3D Correction Maps yes (PRO version)
    Power Distribustion with SW Defined Fuses 1x (PRO version)
    Electric Blow-off Valve yes (PRO version)
    Water Injection yes

    DEVICE COMPATIBILITY

    ECUs - Aftermarket
    Adaptronic
    AEM
    • Infinity
    • Series 2
    Bosch Motorsport
    • MS3
    • MS40
    Carrot
    DTA
    • S Series
    • T Series
    ECUMASTER
    • EMU Black
    • Classic
    • Pro
    EFI
    • EFR18
    • Euro1
    • Euro4
    • Euro6
    • Euro8
    Electromotive TEC
    Emerald
    • K3
    • K6
    Emtron
    E-Race Black
    GEMS
    Haltech
    Hondata
    • Kpro
    • S300
    KMS
    • MD35
    Life Racing
    LINK
    • G3
    • G4
    • G4X
    MAXX
    MARELLI
    Mectronic
    • MKE1
    • MKE4
    • MKE6
    • MKE7
    Megasquirt
    Microtech
    • v2.0
    MMe
    • ECU481
    MOTEC
    • M400
    • M600
    • M800
    • M1 Series
    Pectel
    • EQ10
    • SQ6
    Specialist
    Components
    SYVECS
    • S6
    • S7
    • S8
    Triject
    ECUs - OEM
    BMW M2/M4
    MItsubishi Evo X
    Toyot GT86
    ECUs - Generic OBDII/UDS
    OBD – CAN ISO15765
    OBD – MODE 22 MANUFACTURER SPECIFIC PIDS
    OBD – UDS
    J1939
    NMEA2000
    PDUs
    PDU Ecumaster
    PDU HP Elektronic
    PDU Life Racing
    PDU Motec
    PDU Syvecs
    PDU Tremondi
    PDU MSEL Master Relay
    Auxiliary Devices
    ABS Bosch Motorsport M4/M5
    DCU Motec MDC/MDC2
    KEYPAD Blink Marine
    KEYPAD Tremondi
    LAMBDA AEM
    LAMBDA Ecumaster
    LAMDA Haltech
    LAMBDA Link
    LAMBDA Motec
    SENSOR AEM Thermocouple Amplifier
    SENSOR KMS Thermocouple Amplifier
    SENSOR KMS Flex Fuel
    SENSOR KMS Speed Sensor
    SENSOR Motec E888
    SENSOR Syvecs Thermocouple Amplifier
    SENSOR TEXENSE IRN4C/IRN8C/THN4X
    SENSOR AIM TPMS
    SENSOR IZZE TPMS
    TCU XAP ESHIFT2

    QUESTIONS? ANSWERS.

    Documentation
    Datasheet download
    Pin-out Diagram download
    Mounting Diagram pending
    User Manual access
    Software
    PLEX Device Manager 2.0 download
    PLEX Data Analysis 2.0 (PDA-WIN) download
    What's In the Box?
    1. Display Unit (Master)
    2. EXP-Boost Unit (Slave)
    2. USB-C Cable
    3. TE Superseal-26 Connector with pins
    4. CAN Bus Cable yes
    5. GNSS Antenna (PRO Version only)

    MORE PLEX PRODUCTS

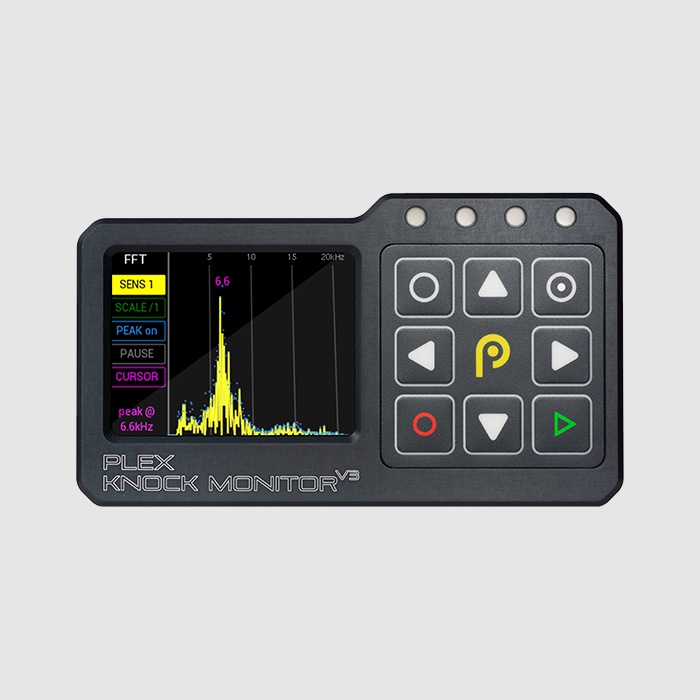

    KNOCK MONITOR V3

    Never Miss Knock Again.

    Learn More DATASHEET

    7” PLEX SDM-700

    All-in-One. Massive. Pro.

    Learn More DATASHEET

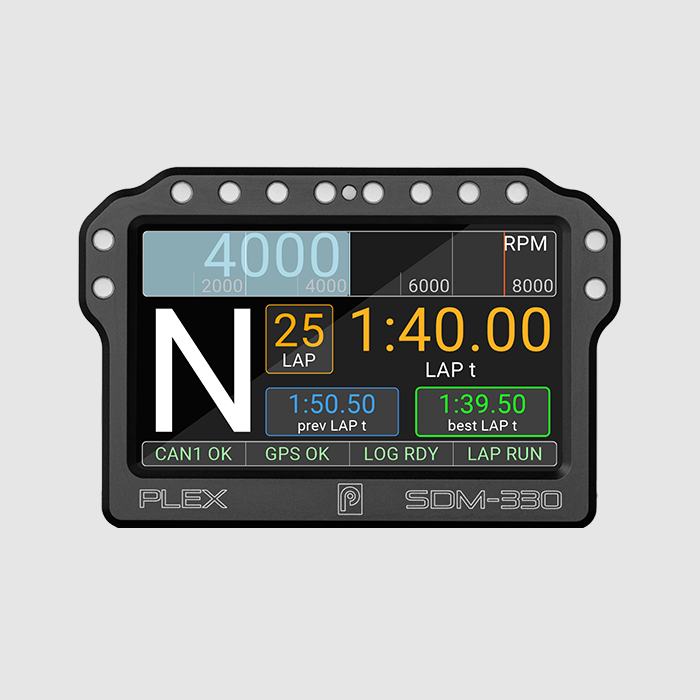

    4.3” PLEX SDM-330

    Compact. Smart. Pro.

    Learn More DATASHEET
