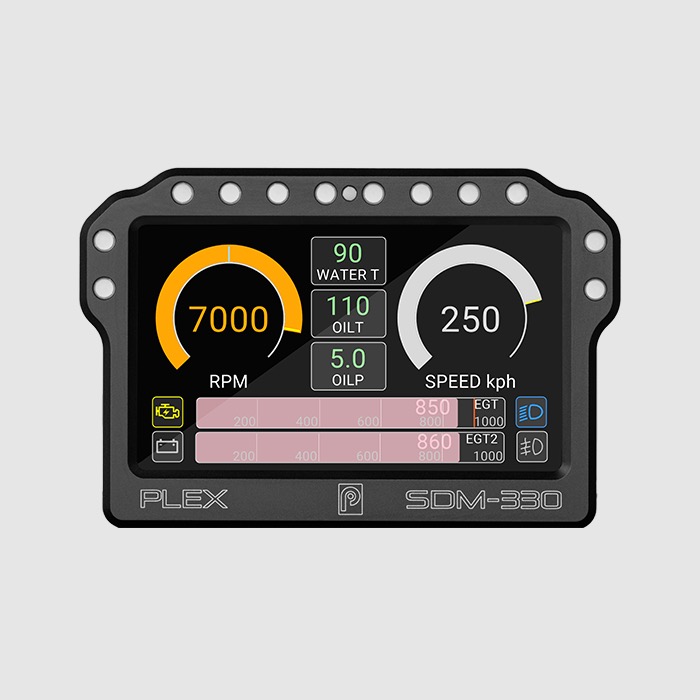

PLEX SDM-330® DASH DISPLAY
Compact. Smart. Pro.
4.3’’ Powerful and Fully Configurable CAN Bus Dash Display designed for data monitoring in any type of vehicle. Suitable both for the dashboard or steering wheel installation. Available also with Logging and GNSS/IMU.
SKUs: plex-sdm-330-d | plex-sdm-330-dl | plex-sdm-330-dlg
| 1.099,00 € Excl. VAT |
Available to ship with DHL Express in 1-3 days

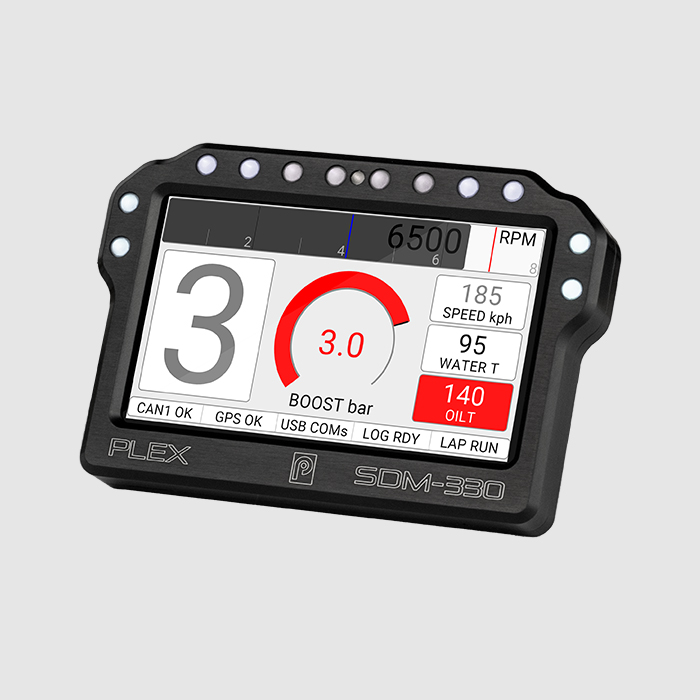

PLEX SDM-330®
COMPACT.SMART.PRO.
If you’re looking for a compact, fully configurable, and high-quality digital dash display, the PLEX SDM-330® is the perfect choice.
Designed for all types of vehicles and applications, this pro-level display easily fits on dashboards or steering wheels, offering unparalleled versatility in a small footprint.
The SDM-330® comes in three upgradeable versions:
- Display Only (D): For straightforward monitoring.
- Display Logger (DL): Adds USB data logging & I/Os.
- All-in-One (DLG): DL plus external GNSS/IMU module for precise lap timing & performance measurements.
KEY FEATURES

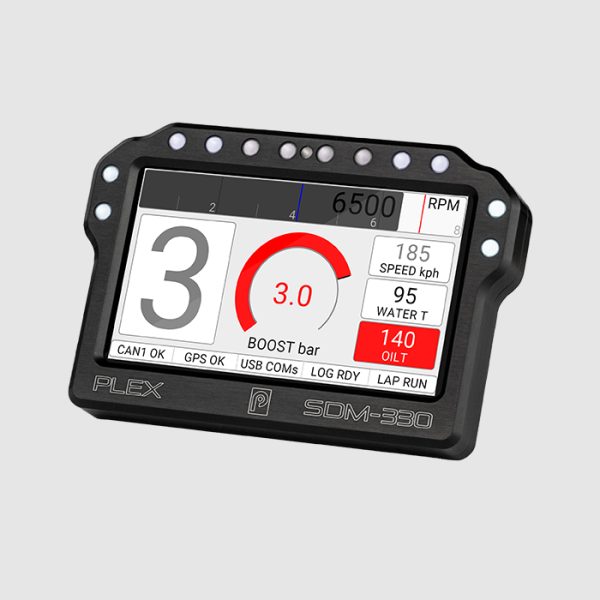

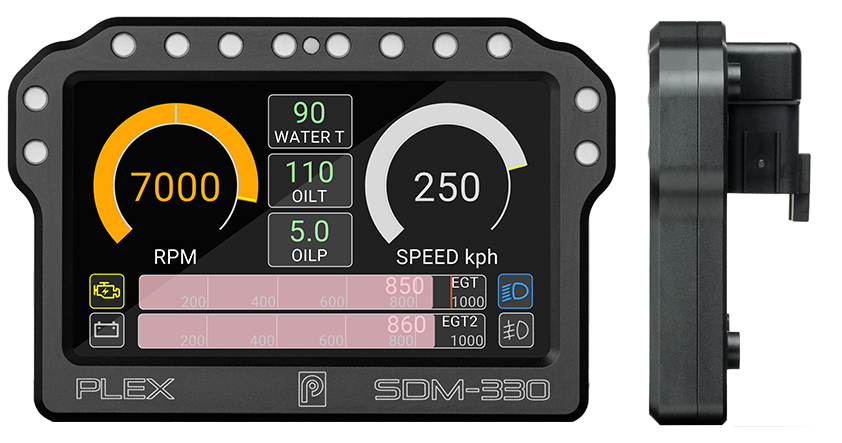

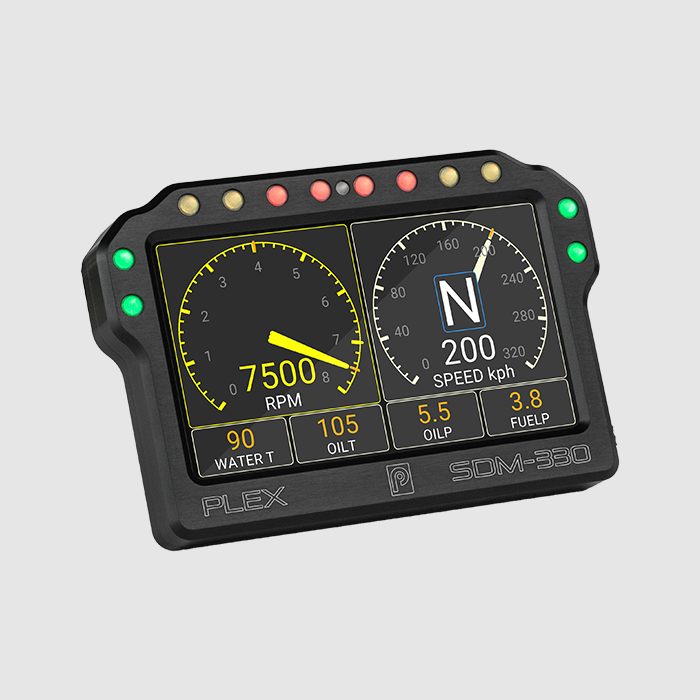

SUPERB 4.3” IPS DISPLAY
Ultra-bright 1000 nits, high-contrast IPS screen with high-quality broadband ARC anti-reflective glass for optimal visibility in all light conditions.

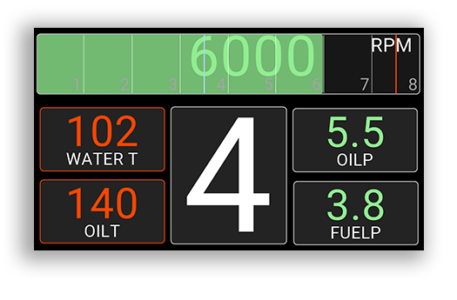

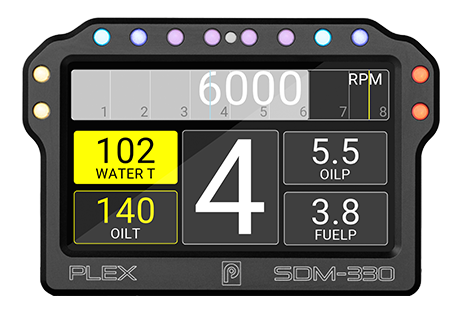

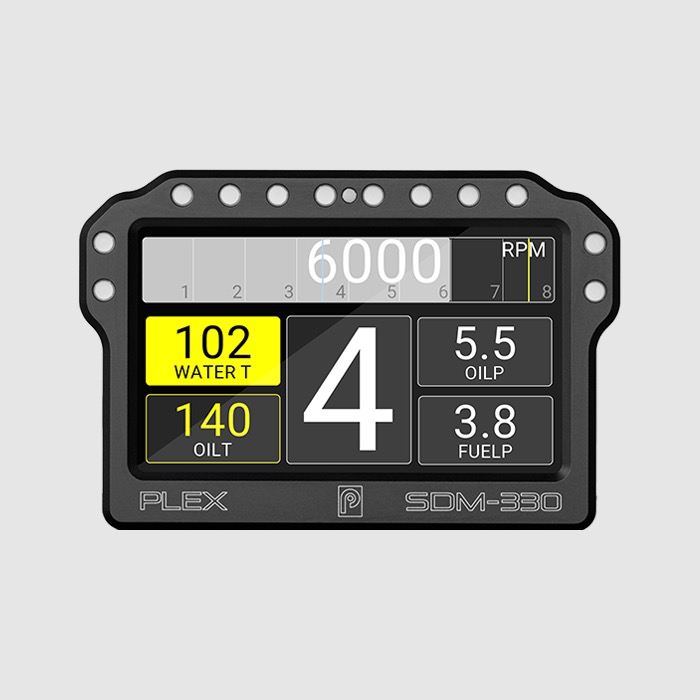

CLEAN QUICK-GLANCE™ UI
Our proprietary UI design enhances viewability and minimizes driver distraction. By optimizing smart color coding and contrast for peripheral vision, critical information is readily accessible.
POWERFUL PROCESSOR
A new high-speed multi-core processor handles sub-systems such as Comms, CAN bus decoding, math channels, lap timing, etc independently ensuring peak performance in any setup.
RUGGED & SEALED ENCLOSURE
Durable anodized CNC aluminum housing with IP67 weather protection ensures operation under the most demanding racing conditions.
ENTIRELY CONFIGURABLE.
Intuitive, yet in-depth configuration lets you customize the UI, CAN Bus, Comms, I/Os, and other functions to match your exact needs. Tailor every aspect to suit any vehicle setup for complete control and flexibility.
OPTIONAL MULTI-GNSS*
Leverage concurrent GNSS satellite reception (GPS, Glonass, Baidu, Galileo) for precise performance measurements and predictive lap timing.
USB DATA LOGGING*
Fully configurable datalogging with conditioned based logging. Log up to 256 data channels and 256 flag channels for post review and analysis on the PC.
VERSATILE CONNECTIVITY
With 8 fully configurable multi-purpose inputs, two outputs, and 8 switch inputs, the SDM-330 allows you to connect any type of sensor and expand the data monitored and logged, enhancing your overall performance insights

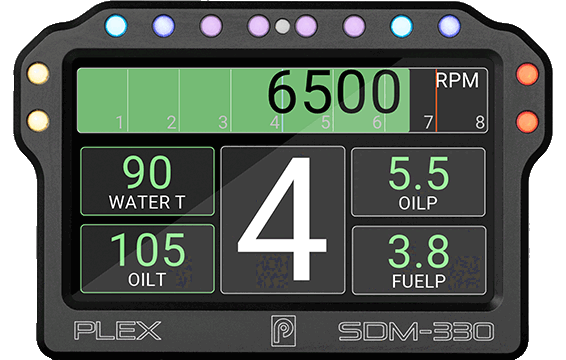

EASY TO SET-UP SMART ALARMS
Preset alarms are quickly customizable to monitor vital parameters. The last 100 alarm events are stored in memory, complete with time, duration, and value, ensuring you're always informed about any performance anomalies.

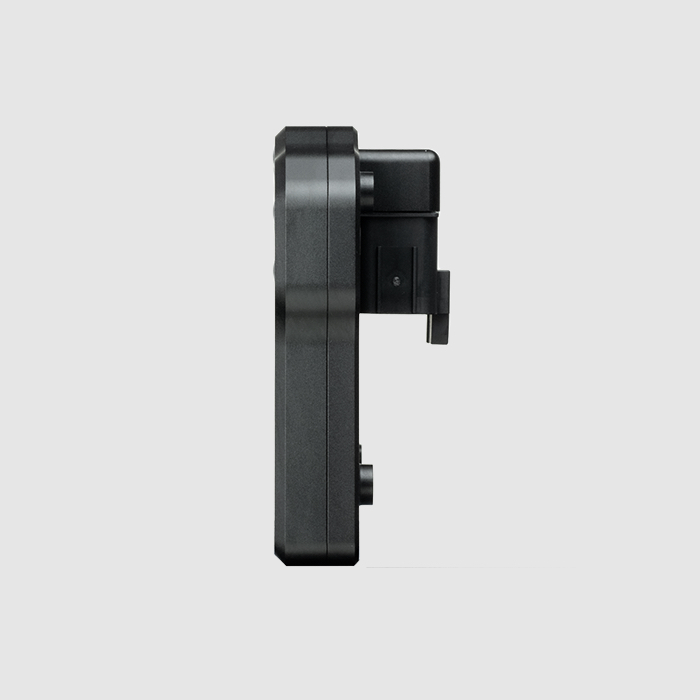

Sealed Connector

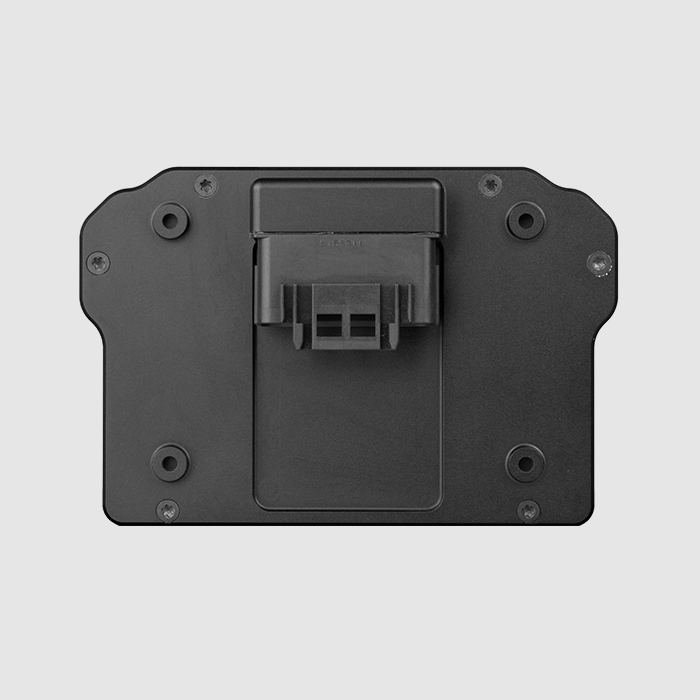

Weather sealed, downwards facing connector allows easier installation in space restricted dashboards and steering wheels.
Built-in WiFi
Hassle free, fast configuration of the display via WiFi.

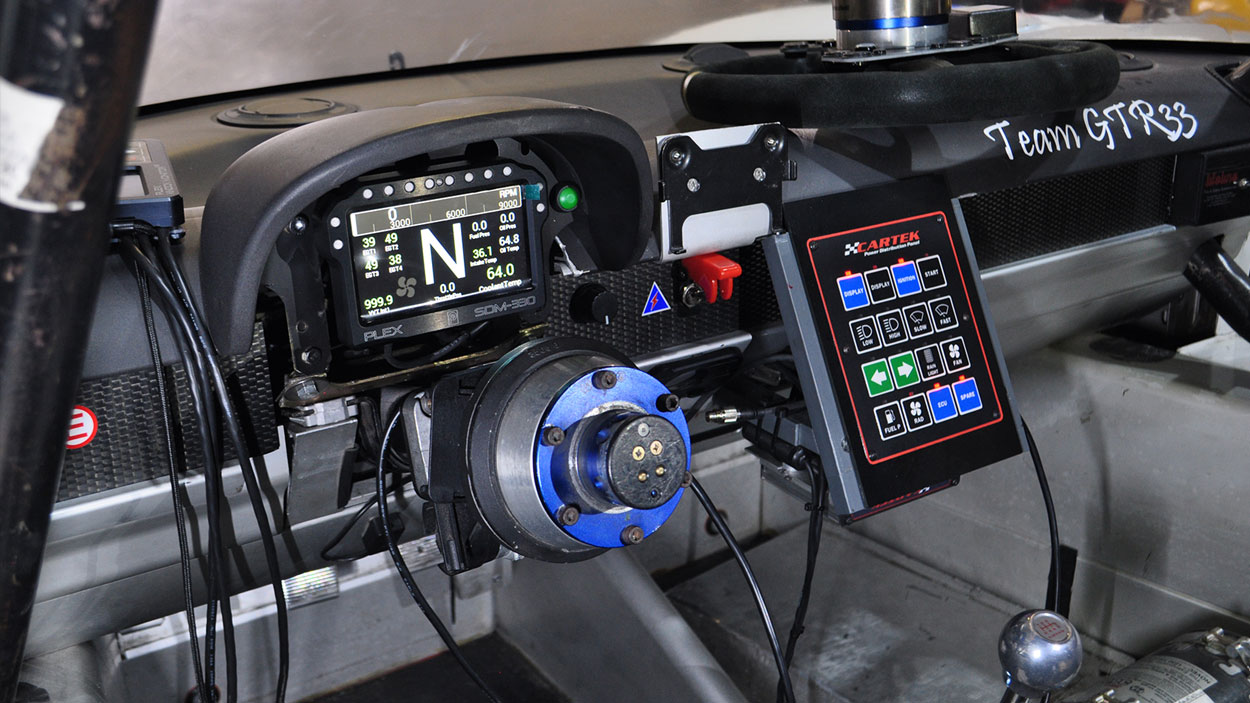

RIGHT SIZE. RIGHT MIND.

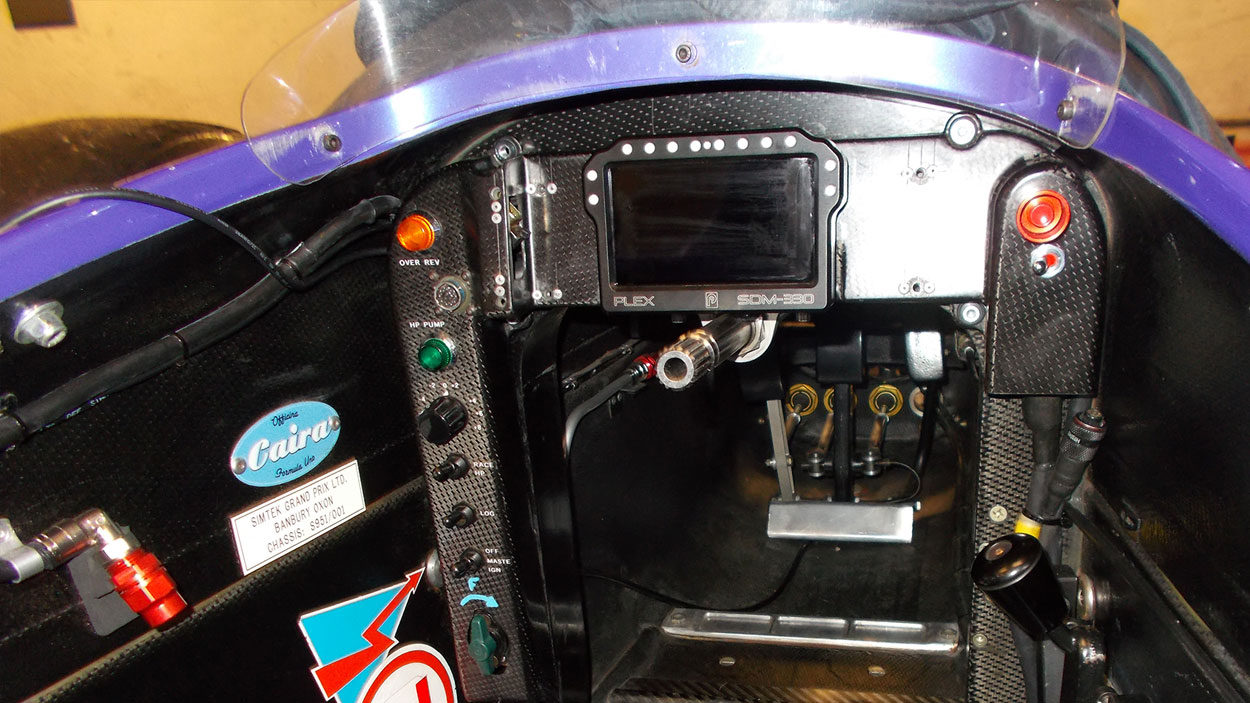

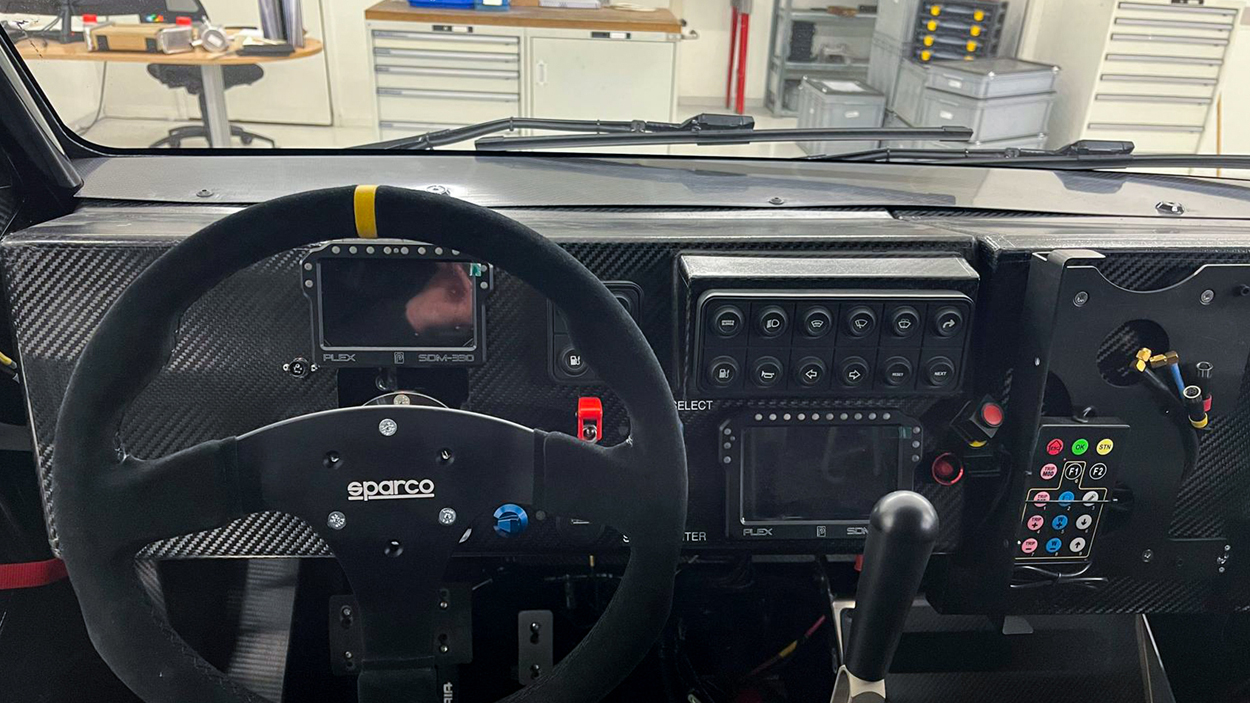

The SDM-330 features a robust IP67-sealed aluminum enclosure, proven reliable even in extreme conditionslike the 2023-25 Dakar Rally (Taurus T3 Max).
Packed with versatile functionality, it adapts to any vehicle or application, serving as both a dependable data monitor and a comprehensive data logger.
The compact foot-print and the downwards facing connector design minimizes protrusion at the back, making mounting easier and more efficient.
12 RGB LEDs
Fully configurable RGB LED lights for custom status / warning functions and shift lighting.
Anti-Reflective Glass
High-quality broadband ARC anti-reflective glass for optimal visibility in all light conditions.
Custom UI
Build your own custom pages or select from the pre-defined templates. Customise colors, sizes, frames, functions and backgrounds.
Rugged Enclosure
IP67 sealed aluminum enclosure protects the display from weather conditions in harsh environments.
Internal Sensors
Built-in sensors for voltage monitoring, device temperature, ambient light and time (real-time clock).
RIGHT SIZE.
RIGHT MIND.
The SDM-330 features a robust IP67-sealed aluminum
enclosure, proven reliable even in extreme conditions
like the 2023-24 Dakar Rally.
Packed with versatile functionality, it adapts to any vehicle
or application, serving as both a dependable data monitor
and a comprehensive data logger.
12 RGB LED Lights
Fully configurable RGB LED lights for custom status / warning functions and shift lighting.
Anti-Reflective Glass
High-quality broadband ARC anti-reflective glass for optimal visibility in all light conditions.
Custom UI
Create custom pages using a variety of customizable graphical objects, or choose from predefined templates. Take full control of your design.
Sealed Connector
Weather sealed, downwards facing connector allows easier installation in space restricted dashboards and steering wheels.
Built-in WiFi
Hassle free, wireless configuration of the display via WiFi.
Rugged Enclosure
IP67 sealed aluminum enclosure protects the display from weather conditions in harsh environments.
Internal Sensors
Built-in sensors for voltage monitoring, device temperature, ambient light and time (real-time clock).

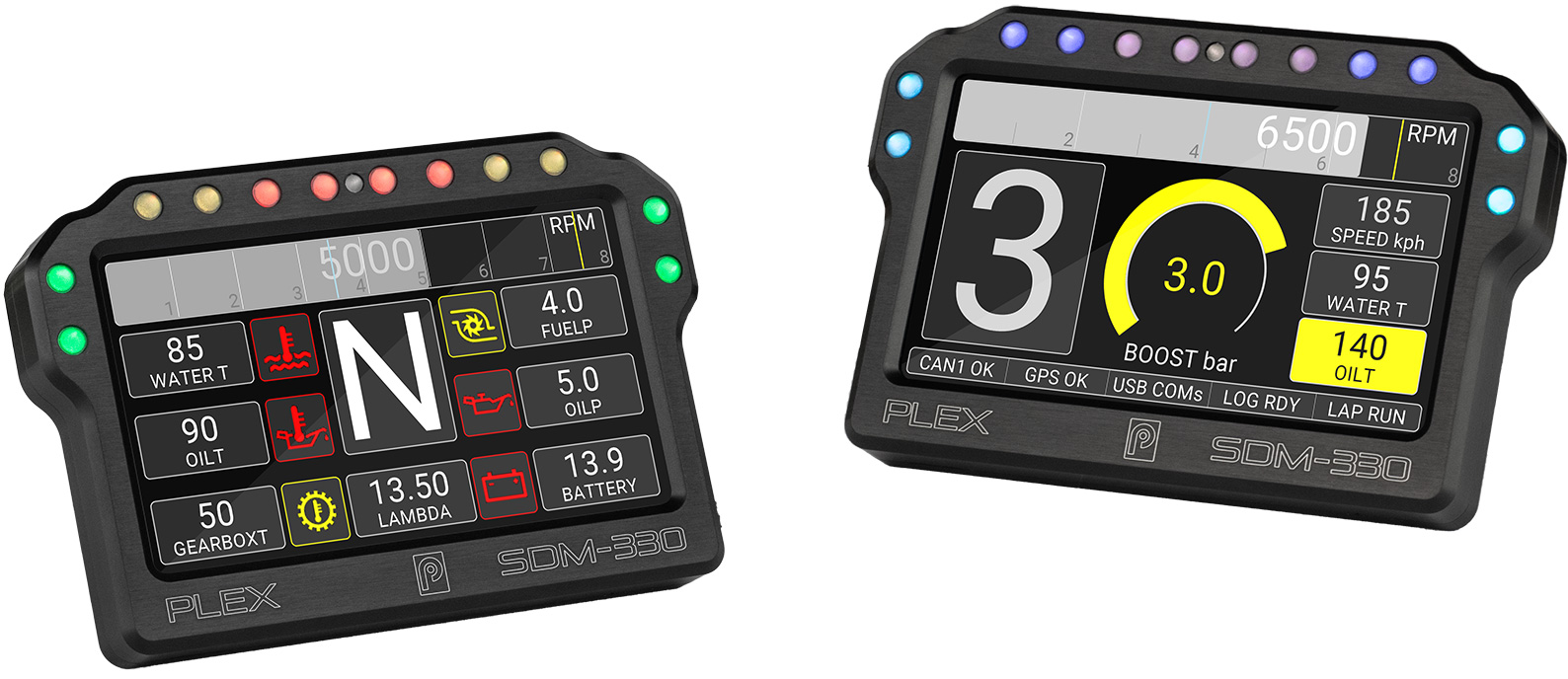

PLEX VIEWING ERGONOMICS.
VIEW WHAT MATTERS MOST.
WHEN IT MATTERS MOST.
A dash display should be easy to read when it’s needed most and unobtrusive at all other times. We take pride in offering the best viewing ergonomics in the market, ensuring that our dash displays deliver clarity and accessibility when it matters most, allowing you to focus on what really counts.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
CLEAN UI.
UNCLUTTERED AND
EFFECTIVE UI DESIGN.
EFFECTIVE UI DESIGN.
ENTIRELY FLEXIBLE.
EVERYTHING IS POSSIBLE
WITH A PLEX DASH.
WITH A PLEX DASH.
QUICK-GLANCETM.
MINIMAL DRIVER
DISTRACTION.
DISTRACTION.
SMART ALARMS.
GET WARNED BEFORE
IT IS TOO LATE.
IT IS TOO LATE.
TOP QUALITY.
PREMIUM IPS TFT
SCREEN MODULES.
SCREEN MODULES.
20Hz MULTI-GNSS
PREDICTIVE LAP TIMING
WITH INSTANT DRIVER
FEEDBACK

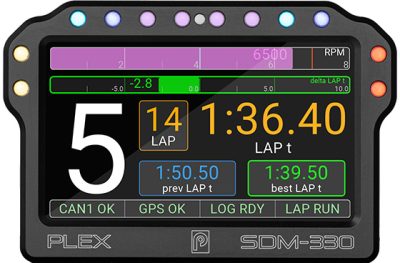

Optimize your performance and lap times by adjusting your lines, braking points, and speed in real time. The SDM-330-DLG’s external concurrent multi-GNSS module provides rapid, position-based data, delivering timely and intuitive lap notifications to help you continuously improve your driving.
FLEXIBLE SET-UP
Easily define your preferences for viewing lap time data. Enable the “New Lap” pop up message and/or create custom pages to show all Lap Timing related channels.
REALTIME LAP DELTA DISPLAY
Use the realtime predicted time difference from your best lap for instant evaluation of your driving performance.
AUTO RACE TRACK DETECTION
When you are within approximately 2km of a pre-loaded track, the SDM-330-DLG will automatically load the corresponding track data.
ADVANCED POST ANALYSIS

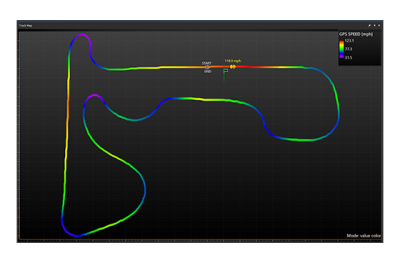

Analyse your circuit performance with a combination of data channels in our intuitive data-analysis software that comes for free with our displays.
PEFORMANCE LOG
SMART ALWAYS ON
PERFORMANCE METER
Besides predictive lap-timing, the PLEX SDM-330-DLG also features a smart performance meter functionality that automatically tracks a range of acceleration & speed tests. Results can be analyzed later using our free PLEX Data Analysis Software, giving you the insights needed to optimize your performance.
ACCELERATION & SPEED TESTS
0-60, 0-100, 100-200 km/h or mph
0-400, 0-1000, VMAX, Peak G and more
100Hz 6-AXIS IMU
ACCURATE VEHICLE DYNAMICS ANALYSIS
Need vehicle dynamics data? The SDM-330-DLG pcomes iwth a built-in 100Hz 6-axis Inertial Measurement Unit (IMU) for precise measurement of vehicle motion, capturing real-time data on acceleration, braking, cornering, and other dynamic movements. This ensures highly accurate vehicle dynamics analysis, providing critical insights for performance optimization.
PLEX DEVICE MANAGER 2.0
YOUR DISPLAY. YOUR WAY.
Advanced Configuration at Your Fingertips.
EASY TO NAVIGATE
SETUP TREE INTERFACE
A hierarchical tree-list interface offers an intuitive and organized way to access all device configuration options. This logical flow simplifies complex setups, allowing users to navigate effortlessly through various configuration layers.
COMMON USER INTERFACE
FOR ALL PLEX DEVICES
The PDMv2 provides a unified interface across all PLEX devices, from dashboards to tuning tools. This consistency ensures easy switching between devices and streamlines configuration with a shared layout and features.
WYSIWYG DASH PAGE
LAYOUT DESIGN
Enjoy a ``What You See Is What You Get`` dash page layout, allowing for easy offline design with accurate page previews. Data simulation ensures users can see exactly how their dashboards will look and function, providing full confidence in the final setup.
TRULY FAST CONFIGURATION
Speed up the configuration process with easy filtering of selection lists, keyboard shortcuts, and copy-paste functionality. These tools help streamline and accelerate setup, minimizing time spent on repetitive tasks.
REAL-TIME CAN MSG STREAMING
Transform your device into a powerful CAN bus diagnostic tool with real-time streaming of incoming raw CAN messages. View all incoming data instantly, and transmit user-defined CAN messages on demand for advanced troubleshooting and system testing.
BUILT-IN TEMPLATES
The software comes preloaded with a comprehensive library of CAN protocol templates for seamless connection to most aftermarket ECUs. It also includes sensor templates for common engine sensors, allowing for quick and easy setup without manual configuration.
PLEX PDA-WIN
DATA ANALYSIS
AND VISUALISATION
SOFTWARE
Outsmart The Track.
CUSTOMIZABLE UI
User defined layout of tabs and panels with handy docking similar
to latest Windows SW suite and also light & dark modes.
to latest Windows SW suite and also light & dark modes.
FAST KEYBOARD SHORTCUTS
Main menu and panel functions shortcuts speed up the set-up time and the dynamic real-time analysis considerably.
MULTIPLE GRAPHS & PANELS
A wide array of chart types lets you visualise large amounts of data into an easy to understand formats and bring out insights at a glance.
EASY FILE COMPARISON
Seamlessly switch between single and comparison view even for completely different file types such as a dyno run with a track lap.
LIVE DATA UPDATING
Zoom levels & cursors are synchronized across all analysis panels and graphs, enabling auto rescaling and seamless cross-referencing of data.
SMART TUNING MAPS
Configurable cell graphs with information directly transferable to the ECU calibration maps that help you optimise your fuel and ignition maps.
A DIFFERENT VERSION FOR EVERYONE
 |
 |
 |
|
| SDM-330-D | SDM-330-DL | SDM-330-DLG | |
| DISPLAY ONLY | DISPLAY LOGGER | ALL-IN-ONE + GNSS | |
| Custom CAN BUS | |||
| Max. Pages | 24 | 24 | 24 |
| Max. Channels | 256 | 256 | 256 |
| Inputs | 16x Inputs / 2x Outputs | 16x inputs / 2x outputs | 16x inputs / 2x outputs |
| Engine Log | |||
| Smart Alarms | |||
| Datalogging | - | ||
| GNSS (GPS) | - | - | |
| IMU | - | - | |
| Lap Timing | - | - | |
| Performance Meter | - | ||
DETAILED SPEC
Physical
| Dimensions (mm) | w 125 x h 83.5 x d 14/32 |
|---|---|
| Weight | 270g |
| Connector(s) |
JAE MX47 Series 39 pins |
| Material | CNC machined aluminum |
| Sealing/Ingress Protection | IP67 |
Electrical Data / Operating Conditions
| Supply Voltage Range | 9-30V DC |
|---|---|
| Current Consumption | max. 2A at 12V |
| Temperature Range | -20 to +60 degC |
Screen
| Type | RGT TFT IPS Wide-Temp |
|---|---|
| Size (px) | 800 x 480 |
| Brightness | 900cd |
| Refresh Rate | 50Hz |
| Display Glass | ARC high-efficiency broadband anti-reflection |
Communitations
| CAN Bus | 2x |
|---|---|
| RS-232 | 1x (shared with CAN) |
| Lin Bus | 1x |
| USB | 1 (for configuration & data transfer) |
| WiFi | Yes – for configuration |
Inputs/Outputs
| Inputs | 4x Multi-purpose 0-5V (Analog/digital/frequency) 4x Multi-purpose 0-16V (Analog/digital/frequency) |
|---|---|
| Outputs | 2x AUX High Side, lim 3A |
| Switch/Button Inputs | 8x |
| LEDs | 12 RGB |
Internal Sensors
| Real Time Clock | with battery backup |
|---|---|
| Device/Sensor Voltage Monitor | +12V supply/+5V sensor supply |
| Device Temperature Sensor | Yes |
| Ambient Light Sensor | Yes |
| Accelerometer/IMU (DLG version) | 100HZ /6-axis (external option) |
| GPS (DLG version) | 25Hz confurrent Multi-GNSS (external option) |
Data Logging
| Memory | USB Flash |
|---|---|
| Max. Log Rate | 100Hz |
| Engine Log | Yes |
| Alarms Log | Yes |
| Lap Times Log | Yes |
| Performance Times Log | Yes |
Data Channels
| Max. Data Channels | 256 |
|---|---|
| Max. Flag Channels | 256 |
User Interface
| # of Pages | 24 |
|---|---|
| Custom Page Design | yes |
| Custom Themes | yes |
| Pre-loaded Templates/Pages | yes |
Internal Calculations
| Lap Times | yes |
|---|---|
| Acceleration Performance | yes |
| Engine Power & Torque | yes |
| Alarms Log | yes |
| Math Channels | 16 |
| Trip Meters | 4 |
DEVICE COMPATIBILITY
ECUs - Aftermarket
| Adaptronic | |
|---|---|
| AEM |
|
| Bosch Motorsport |
|
| Carrot | |
| DTA |
|
| ECUMASTER |
|
| EFI |
|
| Electromotive TEC | |
| Emerald |
|
| Emtron | |
| E-Race Black | |
| GEMS | |
| Haltech | |
| Hondata |
|
| KMS |
|
| Life Racing | |
| LINK |
|
| MAXX | |
| MARELLI | |
| Mectronic |
|
| Megasquirt | |
| Microtech |
|
| MMe |
|
| MOTEC |
|
| Pectel |
|
| Specialist Components |
|
| SYVECS |
|
| Triject |
ECUs - OEM
| BMW M2/M4 |
| MItsubishi Evo X |
| Toyot GT86 |
ECUs - Generic OBDII/UDS
| OBD – CAN ISO15765 |
| OBD – MODE 22 MANUFACTURER SPECIFIC PIDS |
| OBD – UDS |
| J1939 |
| NMEA2000 |
PDUs
| PDU Ecumaster |
| PDU HP Elektronic |
| PDU Life Racing |
| PDU Motec |
| PDU Syvecs |
| PDU Tremondi |
| PDU MSEL Master Relay |
Auxiliary Devices
| ABS Bosch Motorsport M4/M5 |
| DCU Motec MDC/MDC2 |
| KEYPAD Blink Marine |
| KEYPAD Tremondi |
| LAMBDA AEM |
| LAMBDA Ecumaster |
| LAMDA Haltech |
| LAMBDA Link |
| LAMBDA Motec |
| SENSOR AEM Thermocouple Amplifier |
| SENSOR KMS Thermocouple Amplifier |
| SENSOR KMS Flex Fuel |
| SENSOR KMS Speed Sensor |
| SENSOR Motec E888 |
| SENSOR Syvecs Thermocouple Amplifier |
| SENSOR TEXENSE IRN4C/IRN8C/THN4X |
| SENSOR AIM TPMS |
| SENSOR IZZE TPMS |
| TCU XAP ESHIFT2 |
QUESTIONS? ANSWERS.
Documentation
What's In the Box?
| 1. Device |  |
|---|---|
| 2. JAE MX47 Series 39 pins |  |
| 2. USB Cable |  |
| 3. GNSS Antenna (DLG) |  |
| 4. USB Flash drive kit (DL & DLG) |  |
CUSTOMER REVIEWS
“We appreciate the Plex SDM-330 display for its high quality, user-friendly interface, and clear visibility under all conditions—whether on our motorcycle or in our cars. We mainly use Syvecs/LifeRacing ECUs, which integrate seamlessly with the Plex SDM thanks to shared channel abbreviations. Setting up custom channels and pages is also straightforward, making it easy to tailor the display to our specific needs.”
HOLESHOT RACING.
N.IRELAND
“The team loves the SDM-330 dash display, especially the gear pop-up feature, and they’re impressed by its clarity. During runs, they don’t have much time to check data, but a quick glance gives them exactly what they need. I’ve also configured a separate page for standing launches that shows the launch sector, throttle position, RPM, and confirms when launch mode is active. These features remove any doubts about whether the system is ready, which is critical when time is tight. Overall, the SDM-330 is far more than just a display—it’s an essential tool for their entire timed run.”
DAYTUNER.
UK

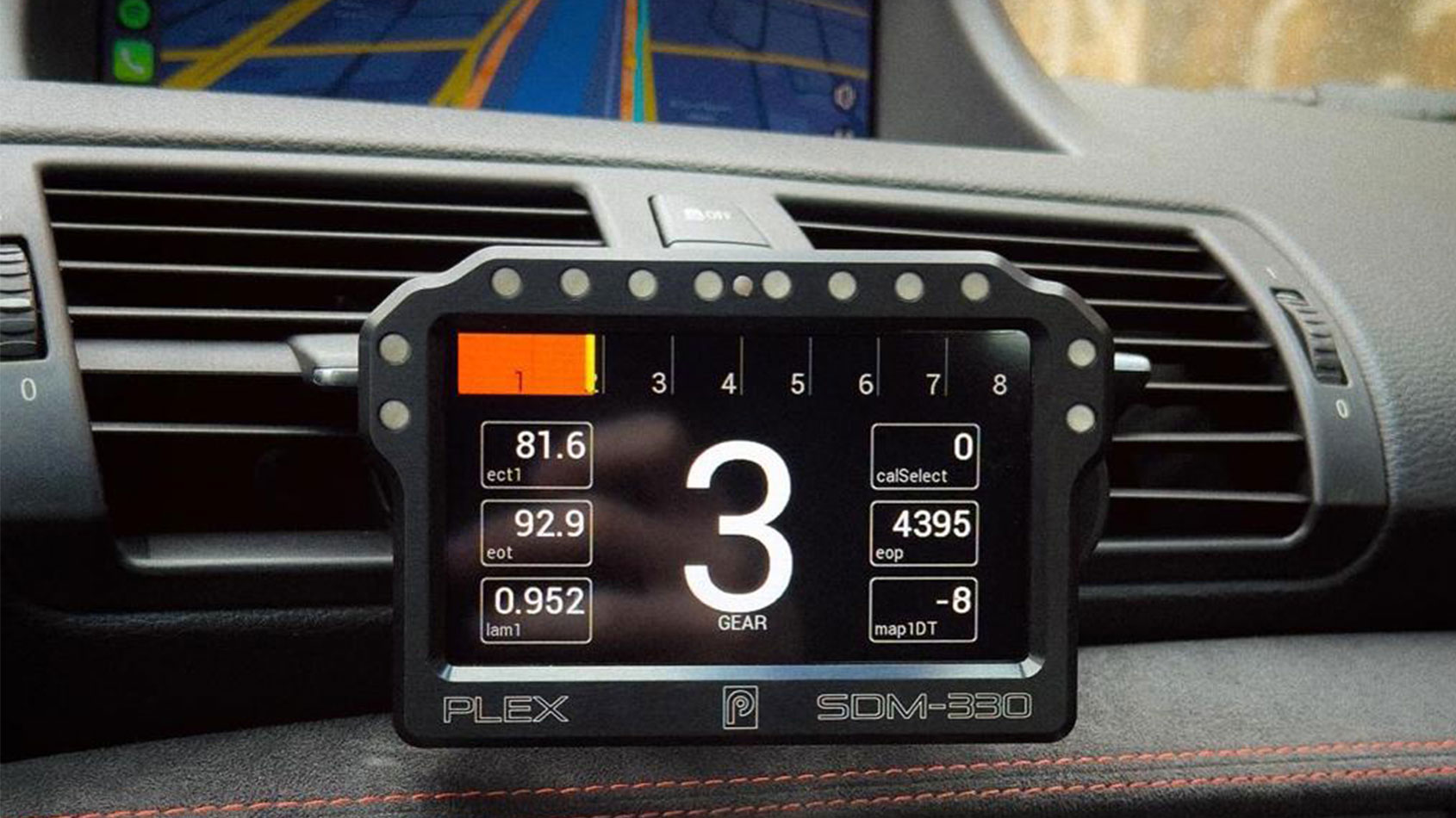

“We’ve been using the PLEX SDM-330 dash display in most of our builds for quite some time, and it has consistently impressed us. Its exceptional flexibility enables the creation of numerous live math channels while making full use of its extensive internal features. The compact and versatile design allows for easy mounting anywhere on the car. Moreover, the support team has been outstanding, always open to feedback and enthusiastic about implementing our ideas for improvements”
BK MOTORSPORT
Brazil
“For me, it’s very straightforward: the SDM-330 dashboard lets me offer my customers an excellent price-to-quality ratio, which was my main goal. We work with a variety of projects, so having a flexible solution like the Plex dash is crucial. It’s easy to set up—especially with DBC—and fully configurable to meet all our needs. The display quality is top-notch, and at an affordable price, it’s the perfect choice for us!”
SWINDON
France
MORE PLEX DISPLAYS
STAY UPDATED ON WHAT MATTERS TO YOU!
Subscribe for product updates,
exclusive insights & special offers.
2.8” uSDM-200
4.3” SDM-330
5” SDM-550
7” SDM-700R
uSDM-200-DL/G
SDM-550
SDM-700R
Knock Monitor V3
PCA-2000Plus
PLEX KNOCK MONITOR V3
PLEX PCA-2000Plus
Device Configuration SW
PCA-2000Plus System
PCA-WIN 2.0 SW
Pressure Sensors
PLEX PBC v2 KIT
PLEX EXP-Boost
PLEX PDA-WIN 2.0 SW
PLEX PDA-WIN PRO 2.0 SW
Combustion Analysis SW
