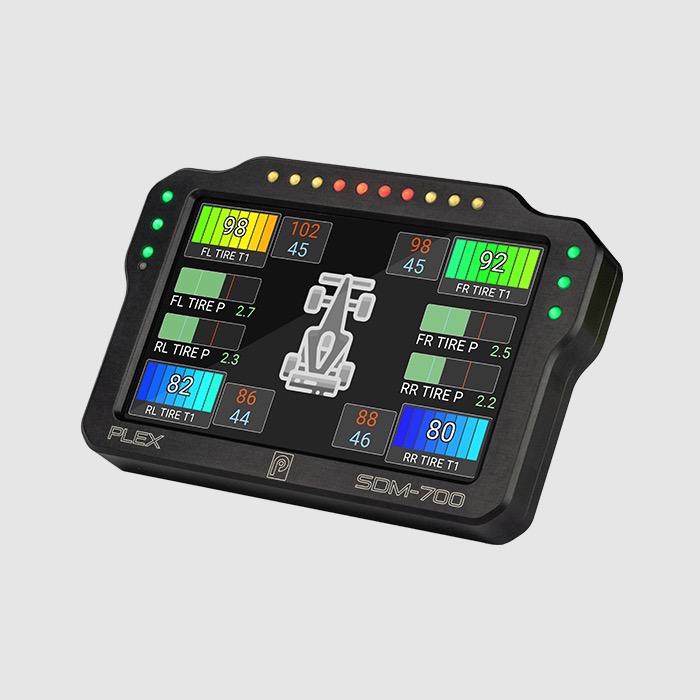

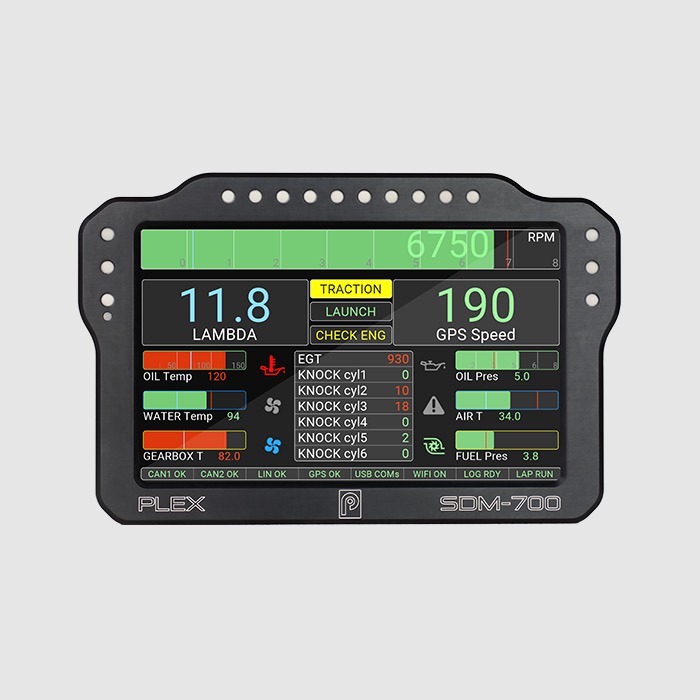

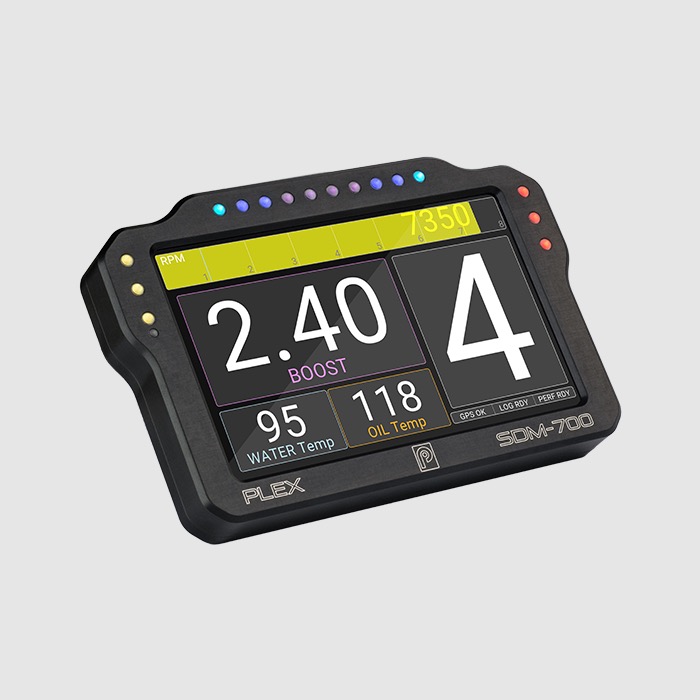

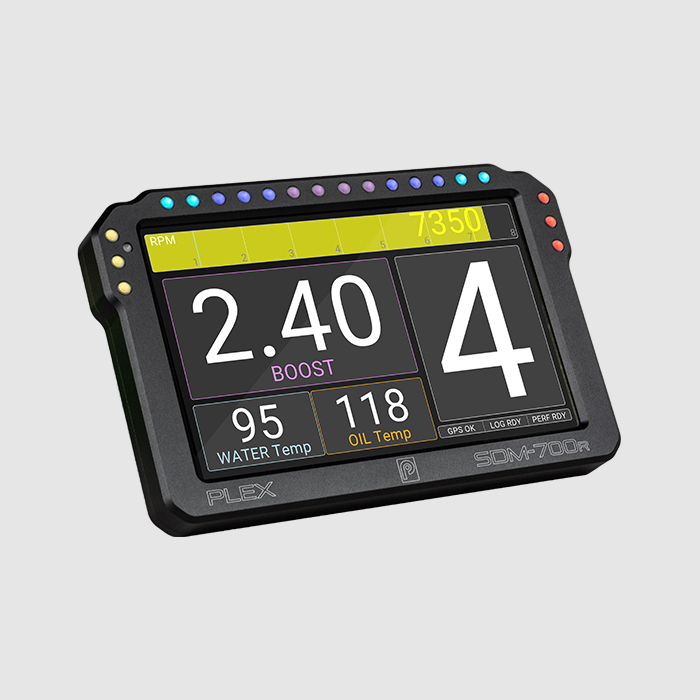

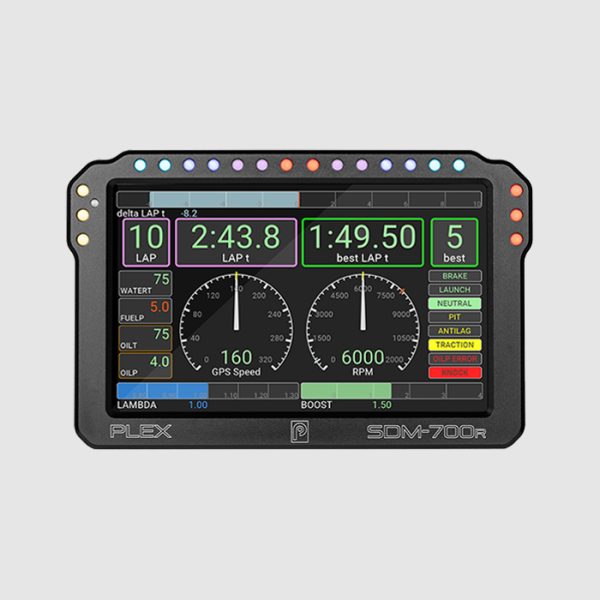

PLEX SDM-700R® DISPLAY LOGGER
All-in-One. Massive. Pro.
7’’ All-in-One Pro-level Dash Display Logger with Built-in 25Hz Multi-GNSS and 100Hz IMU modules for precise Lap Timing, Performance Measurements and Vehicle Dynamics Analysis.
SKU: plex-sdm-700r
2.499,00 € Excl. VAT
Availability: Sold out
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
PLEX SDM-700R®
OUR FLAGSHIP.
If you’re looking for a large, powerful, and high-quality digital dash display logger, the 7″ flagship PLEX SDM-700R® is your ideal choice, delivering unparalleled built-in functionality to meet the demands of even the most advanced users.
Equipped with a powerful multi-core processor, the SDM-700R ensures smooth subsystem operation and can handle even heavy configurations with ease, making it adaptable to the most complex setups for any type of project.
With integrated 25Hz concurrent multi-GNSS and a high-precision 100Hz 6-axis Inertia Measurement Unit, the SDM-700R delivers exceptional accuracy in lap timing, performance measurements, and vehicle dynamics analysis—giving you the power to elevate your performance.
KEY FEATURES
SUPERB IPS TFT DISPLAY
Ultra-bright 1000 nits, high-contrast IPS screen with high-quality broadband ARC anti-reflective glass for optimal visibility in all light conditions.
POWERFUL PROCESSOR
A new high-speed multi-core processor handles sub-systems such as display, CAN bus decoding, math channels, lap timing, etc independently ensuring peak performance in any setup.
RUGGED & SEALED ENCLOSURE
Durable anodized CNC aluminum housing with IP67 weather protection ensures operation under the most demanding racing conditions.
CLEAN QUICK-GLANCE™ UI
Our proprietary UI design enhances viewability and minimizes driver distraction. By optimizing smart color coding and contrast for peripheral vision, critical information is readily accessible.
ENTIRELY CONFIGURABLE.
Intuitive, yet in-depth configuration lets you customize the UI, CAN Bus, Comms, I/Os, and other functions to match your exact needs. Tailor every aspect to suit any vehicle setup for complete control and flexibility.
BUILT-IN GNSS & IMU
Enjoy concurrent GNSS satellite reception (GPS, Glonass, Baidu, Galileo) for precise performance measurements and predictive lap timing.
USB DATA LOGGING
Fully configurable datalogging with conditioned based logging. Log up to 384 data channels and 320 flag channels for post review and analysis on the PC.
VERSATILE CONNECTIVITY
A high-quality motorsport connector supports 8 fully configurable multi-purpose inputs, 3 outputs, and 4 switch inputs, allowing you to connect various sensors and expand the data that’s monitored and logged—delivering deeper insights into performance.
EASY TO SET-UP SMART ALARMS
Pre-loaded alarms are quickly customisable to monitor vital parameters. The last 100 alarm events are stored in memory, complete with time, duration, and value, ensuring you're always informed about any performance anomalies.

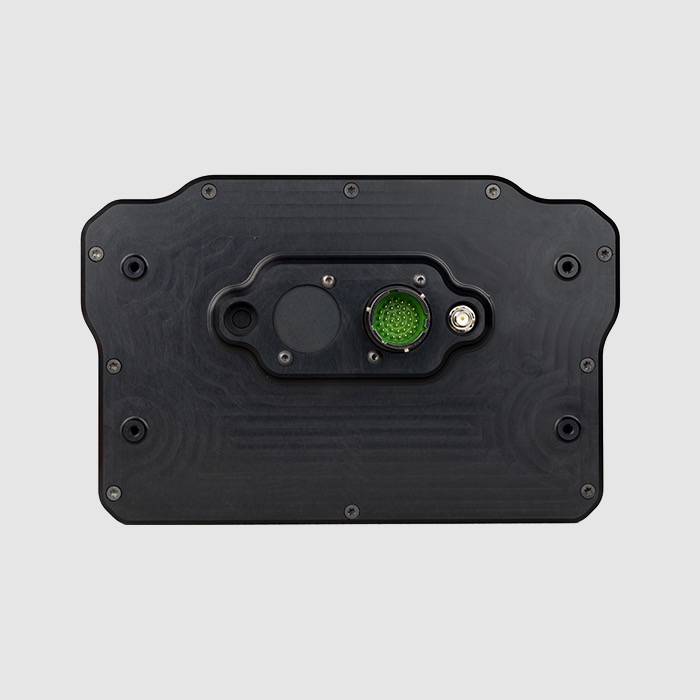

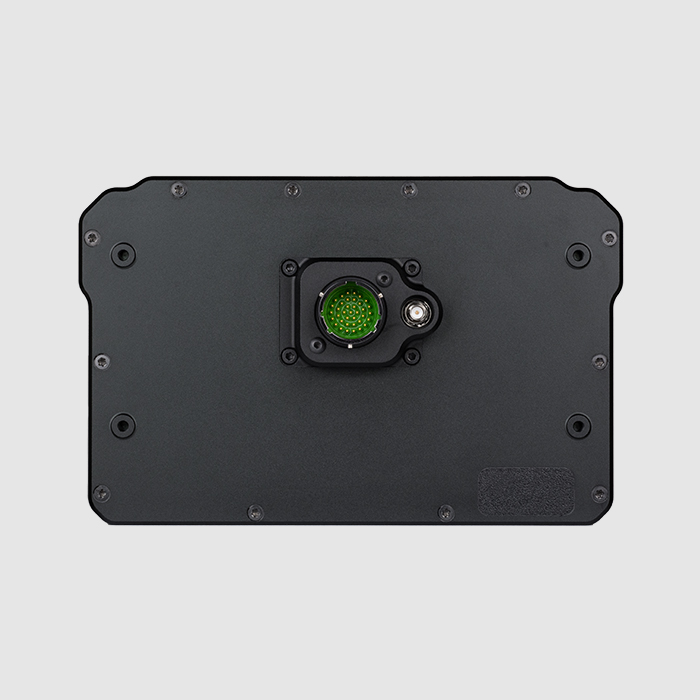

Sealed Motorsport Connector
37pin Souriaou connector with robust weather sealing to protect against moisture, dust, and extreme temperatures.
Built-in GNSS/IMU
Integrated concurrent multi-GNSS (GPS) and Inertia Measurment Unit for precise lap-timing and performance measurements.
Built-in WiFi & Ethernet
Skip the cables and proceed to hassle free ultra-face device configuration via WiFi or Ethernet.

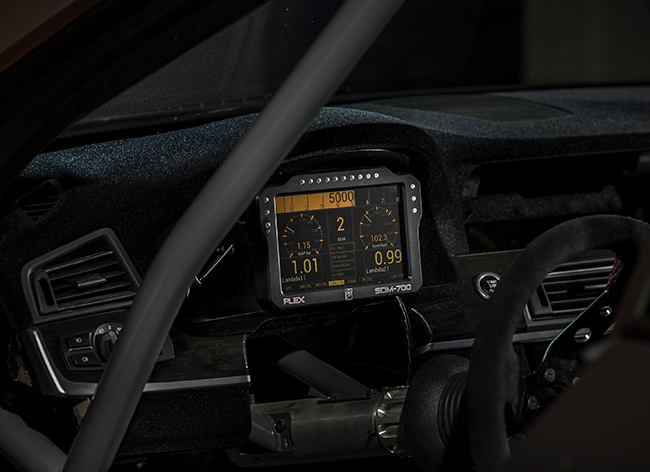

BIG. ROBUST. PRO.

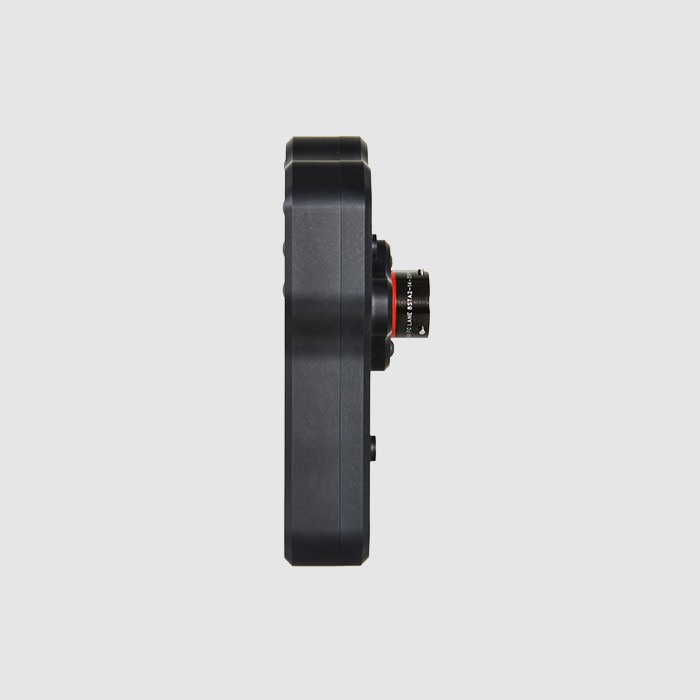

The SDM-700R features a robust IP67-sealed aluminum
enclosure, proven reliable even in extreme conditions
like the F1 powerboat championship.
Packed with cutting edge built-in functionality, it
adapts to any vehicle or application, serving as both
a dependable data monitor, a smart CAN controller
and a comprehensive data logger.
16 RBG LED Lights
Fully configurable RGB LED lights for custom status / warning functions and shift lighting.
Anti-Reflective Glass
High quality broadband ARC anti-reflective glass for optimal visibility in all light conditions.

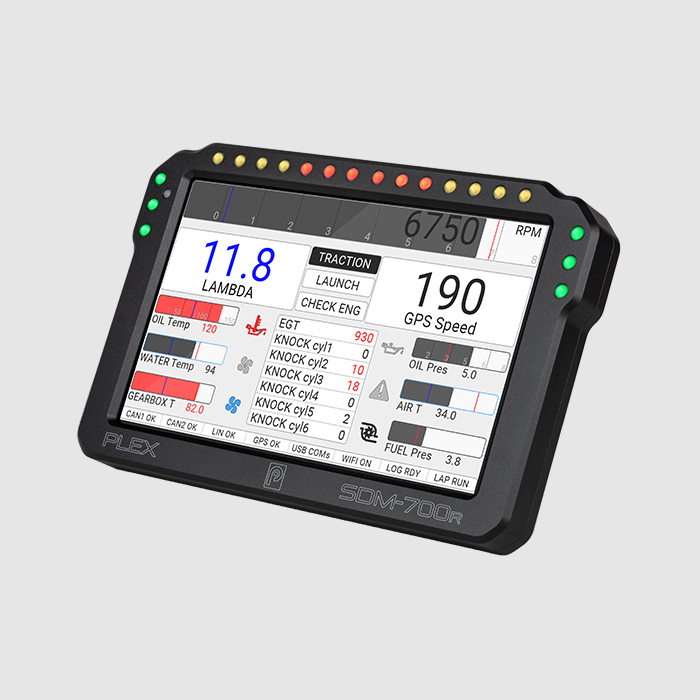

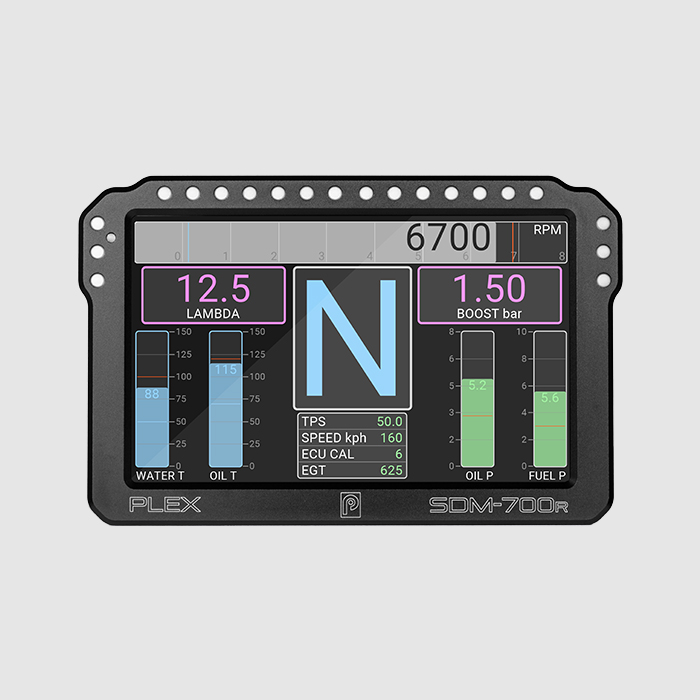

Custom UI
Build your own custom pages or select from the pre-defined templates. Customise colors, sizes, frames, functions and backgrounds.
Rugged Enclosure
IP67 sealed aluminum enclosure protects the display from weather conditions in harsh environments.
Internal Sensors
Built-in sensors for voltage monitoring, device temperature, ambient light and time (real-time clock).
BIG. ROBUST. PRO.
The SDM-700R features a robust IP67-sealed aluminum
enclosure, proven reliable even in extreme conditions
like the F1 powerboat championship.
Packed with cutting edge built-in functionality, it
adapts to any vehicle or application, serving as both
a dependable data monitor, a smart CAN controller
and a comprehensive data logger.
16 RGB LED Lights
Fully configurable RGB LED lights for custom status / warning functions and shift lighting.
Custom UI
Build your own custom pages or select from the pre-defined templates. Customise colors, sizes, frames, functions and backgrounds.
Anti-Reflective Glass
High-quality broadband ARC anti-reflective glass for optimal visibility in all light conditions.
Built-in GNSS (GPS) & IMU
Integrated concurrent multi-GNSS (GPS) and Inertia Measurment Unit for precise lap-timing and performance measurements.

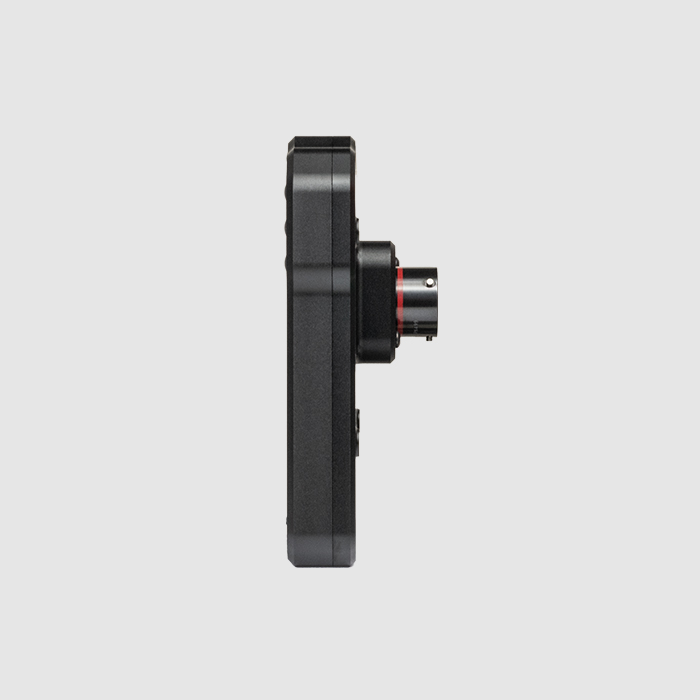

Sealed Motorsport Connector
37pin Souriaou connector with robust weather sealing to protect against moisture, dust, and extreme temperatures.
Built-in WiFi & Ethernet
Skip the cables and proceed to hassle free ultra-face device configuration via WiFi or Ethernet.

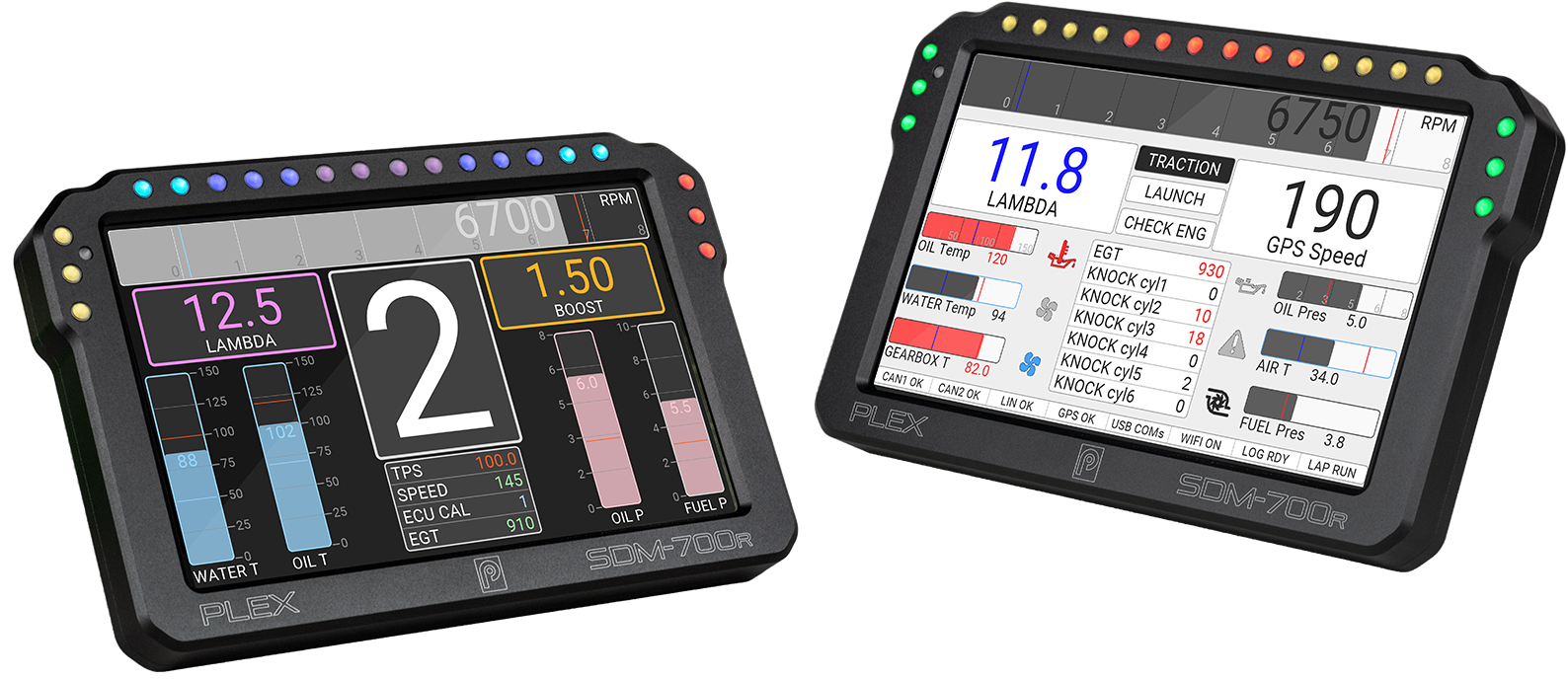

PLEX VIEWING ERGONOMICS.
VIEW WHAT MATTERS MOST.
WHEN IT MATTERS MOST.
A dash display should be easy to read when it’s needed most and unobtrusive at all other times. We take pride in offering the best viewing ergonomics in the market, ensuring that our dash displays deliver clarity and accessibility when it matters most, allowing you to focus on what really counts.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
CLEAN UI.
UNCLUTTERED AND
EFFECTIVE UI DESIGN.
EFFECTIVE UI DESIGN.
ENTIRELY FLEXIBLE.
EVERYTHING IS POSSIBLE
WITH A PLEX DASH.
WITH A PLEX DASH.

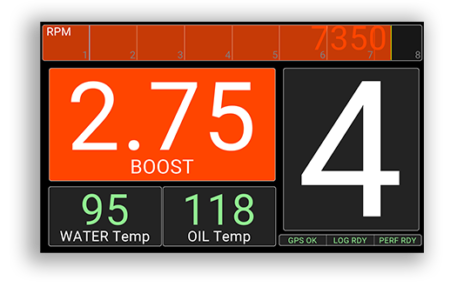

QUICK-GLANCETM.
MINIMAL DRIVER
DISTRACTION.
DISTRACTION.
SMART ALARMS.
GET WARNED BEFORE
IT IS TOO LATE.
IT IS TOO LATE.

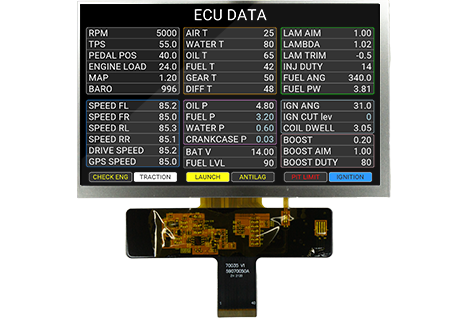

TOP QUALITY.
PREMIUM IPS TFT
SCREEN MODULES.
SCREEN MODULES.

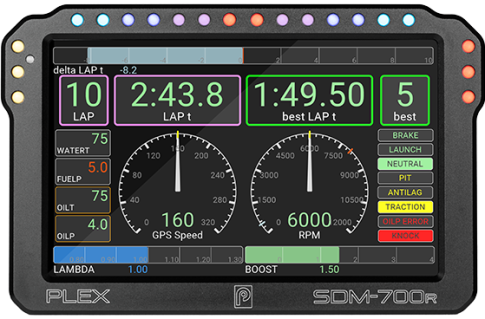

BUILT-IN 25Hz MULTI-GNSS
PREDICTIVE LAP TIMING
WITH INSTANT DRIVER
FEEDBACK
Race based on facts, and optimize your performance and lap times by adjusting your lines, braking points, and speed in real time. The SDM-700R’s built-in concurrent multi-GNSS module provides rapid, position-based data, delivering timely and intuitive lap notifications to help you continuously improve your driving.
FLEXIBLE SET-UP
Easily define your preferences for viewing lap time data. Enable the “New Lap” pop up message and/or create custom pages to show all Lap Timing related channels.

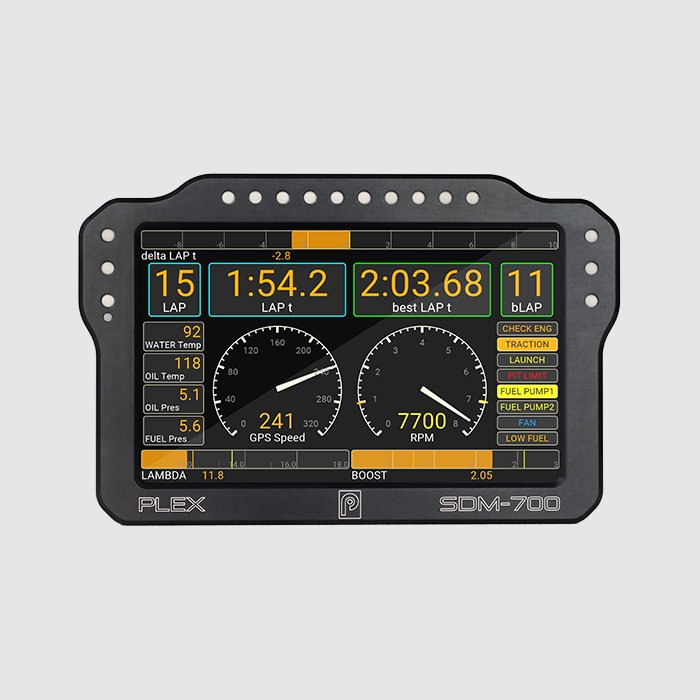

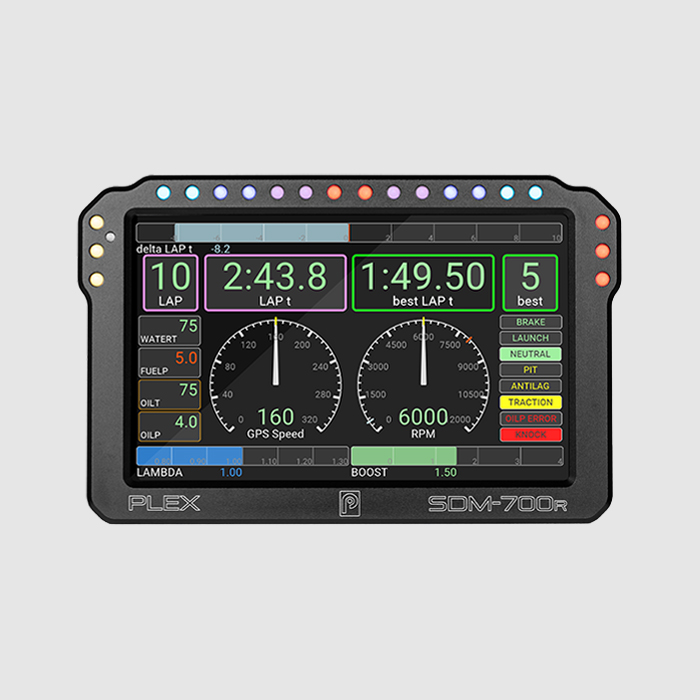

REALTIME LAP DELTA DISPLAY
Use the realtime predicted time difference from your best lap for instant evaluation of your driving performance.
AUTO RACE TRACK DETECTION
When you are within approximately 2km of a pre-loaded track, the SDM-700R will automatically load the corresponding track data.

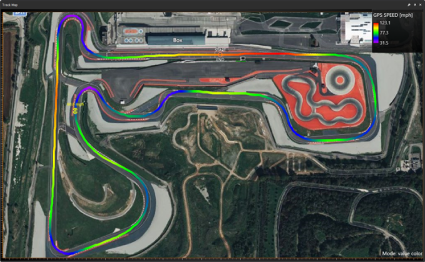

ADVANCED POST ANALYSIS
Analyse your circuit performance with a combination of data channels in our intuitive data-analysis software that comes for free with our displays.

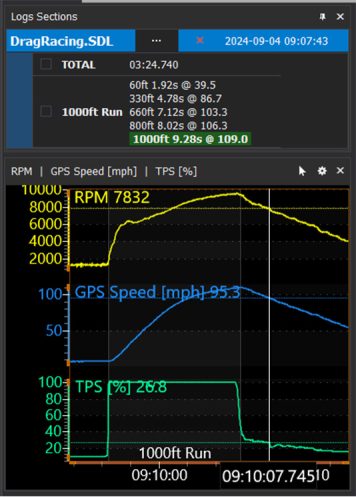

PERFORMANCE LOG
SMART ALWAYS ON
PERFORMANCE METER
The PLEX SDM-700R also features a smart performance meter functionality that automatically tracks a range of acceleration tests. Results are displayed in real-time on any custom page or can be analyzed later using our free PLEX Data Analysis Software, giving you the insights needed to optimize your performance.
ACCELERATION & SPEED TESTS
0-60, 0-100, 100-200 km/h or mph
0-400, 0-1000, VMAX, Peak G and more

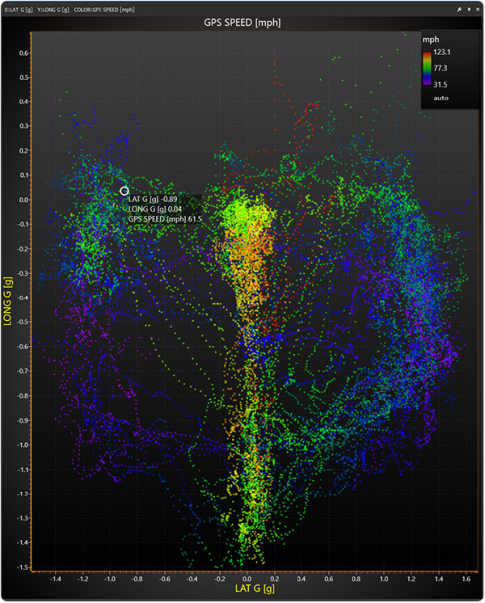

100Hz 6-AXIS IMU
ACCURATE VEHICLE DYNAMICS ANALYSIS
For those who also need vehicle dynamics data, the SDM-700R features a 100Hz 6-axis Inertial Measurement Unit (IMU) for precise measurement of vehicle motion, capturing real-time data on acceleration, braking, cornering, and other dynamic movements. This ensures highly accurate vehicle dynamics analysis, providing critical insights for performance optimization.
PLEX DEVICE MANAGER 2.0
YOUR DISPLAY. YOUR WAY.
Advanced Configuration at Your Fingertips.
EASY TO NAVIGATE
SETUP TREE INTERFACE
A hierarchical tree-list interface offers an intuitive and organized way to access all device configuration options. This logical flow simplifies complex setups, allowing users to navigate effortlessly through various configuration layers.
COMMON USER INTERFACE
FOR ALL PLEX DEVICES
The PDMv2 provides a unified interface across all PLEX devices, from dashboards to tuning tools. This consistency ensures easy switching between devices and streamlines configuration with a shared layout and features.
WYSIWYG DASH PAGE
LAYOUT DESIGN
Enjoy a ``What You See Is What You Get`` dash page layout, allowing for easy offline design with accurate page previews. Data simulation ensures users can see exactly how their dashboards will look and function, providing full confidence in the final setup.
TRULY FAST CONFIGURATION
Speed up the configuration process with easy filtering of selection lists, keyboard shortcuts, and copy-paste functionality. These tools help streamline and accelerate setup, minimizing time spent on repetitive tasks.
REAL-TIME CAN MSG STREAMING
Transform your device into a powerful CAN bus diagnostic tool with real-time streaming of incoming raw CAN messages. View all incoming data instantly, and transmit user-defined CAN messages on demand for advanced troubleshooting and system testing.
BUILT-IN TEMPLATES
The software comes preloaded with a comprehensive library of CAN protocol templates for seamless connection to most aftermarket ECUs. It also includes sensor templates for common engine sensors, allowing for quick and easy setup without manual configuration.
PLEX PDA-WIN
DATA ANALYSIS
AND VISUALISATION
SOFTWARE
Outsmart The Track.
CUSTOMIZABLE UI
User defined layout of tabs and panels with handy docking similar
to latest Windows SW suite and also light & dark modes.
to latest Windows SW suite and also light & dark modes.
FAST KEYBOARD SHORTCUTS
Main menu and panel functions shortcuts speed up the set-up time and the dynamic real-time analysis considerably.
MULTIPLE GRAPHS & PANELS
A wide array of chart types lets you visualise large amounts of data into an easy to understand formats and bring out insights at a glance.
EASY FILE COMPARISON
Seamlessly switch between single and comparison view even for completely different file types such as a dyno run with a track lap.
LIVE DATA UPDATING
Zoom levels & cursors are synchronized across all analysis panels and graphs, enabling auto rescaling and seamless cross-referencing of data.
SMART TUNING MAPS
Configurable cell graphs with information directly transferable to the ECU calibration maps that help you optimise your fuel and ignition maps.
DETAILED SPEC
Physical

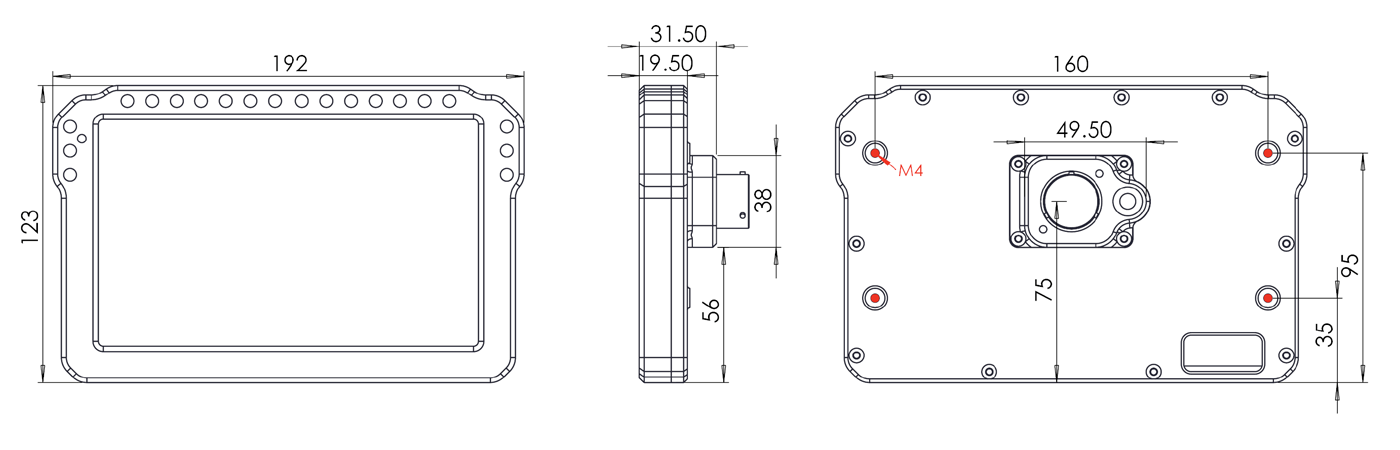

| Dimensions (mm) | w 200 x h 129 x d 27/47 |
|---|---|
| Weight | 720g |
| Connector(s) | 37pin Souriaou |
| Material | CNC machined aluminum |
| Sealing/Ingress Protection | IP67 |
Electrical Data / Operating Conditions
| Supply Voltage Range | 9-30V DC |
|---|---|
| Current Consumption | max. 2A at 12V |
| Temperature Range | -20 to +60 degC |
Screen
| Type | RGT TFT IPS Wide-Temp |
|---|---|
| Size (px) | 800 x 480 |
| Brightness | 1000cd |
| Refresh Rate | 50Hz |
| Display Glass | ARC high-efficiency broadband anti-reflection |
Communitations
| CAN Bus | 2x (250kbit-1.333Mbit) CAN2.0, up to 5Mbit CAN FD |
|---|---|
| RS-232 | 1x (shared with CAN2) |
| Lin Bus | 1x |
| USB | 1 (for configuration & data transfer) |
| WiFi | Yes – for configuration |
| Ethernet | Yes – for configuration & log. file download |
Inputs/Outputs
| Inputs | 4x Multi-purpose 0-5V (Analog/digital/frequency) 4x Multi-purpose 0-16V (Analog/digital/frequency) |
|---|---|
| Outputs | 2x AUX High Side, lim 3A, 1x AUX Low Side (lim 0.5A) |
| Switch/Button Inputs | 4 |
| LEDs | 16 RGB |
Internal Sensors
| Real Time Clock | with battery backup |
|---|---|
| Device/Sensor Voltage Monitor | +12V supply/+5V sensor supply |
| Device Temperature Sensor | Yes |
| Ambient Light Sensor | Yes |
| Accelerometer/IMU | 100HZ /6-axis (built-in) |
| GPS | 25Hz confurrent Multi-GNSS (built-in) |
Data Logging
| Memory | USB Flash |
|---|---|
| Max. Log Rate | 100Hz |
| Engine Log | Yes |
| Alarms Log | Yes |
| Lap Times Log | Yes |
| Performance Times Log | Yes |
Data Channels
| Max. Data Channels | up to 384 |
|---|---|
| Max. Flag Channels | up to 320 |
User Interface
| # of Pages | 48 |
|---|---|
| Custom Page Design | yes |
| Custom Themes | yes |
| Pre-loaded Templates/Pages | yes |
Internal Calculations
| Lap Times | yes |
|---|---|
| Acceleration Performance | yes |
| Engine Power & Torque | yes |
| Alarms Log | yes |
| Math Channels | 32 |
| Trip Meters | 4 |
DEVICE COMPATIBILITY
ECUs - Aftermarket
| Adaptronic | |
|---|---|
| AEM |
|
| Bosch Motorsport |
|
| Carrot | |
| DTA |
|
| ECUMASTER |
|
| EFI |
|
| Electromotive TEC | |
| Emerald |
|
| Emtron | |
| E-Race Black | |
| GEMS | |
| Haltech | |
| Hondata |
|
| KMS |
|
| Life Racing | |
| LINK |
|
| MAXX | |
| MARELLI | |
| Mectronic |
|
| Megasquirt | |
| Microtech |
|
| MMe |
|
| MOTEC |
|
| Pectel |
|
| Specialist Components |
|
| SYVECS |
|
| Triject |
ECUs - OEM
| BMW M2/M4 |
| MItsubishi Evo X |
| Toyot GT86 |
ECUs - Generic OBDII/UDS
| OBD – CAN ISO15765 |
| OBD – MODE 22 MANUFACTURER SPECIFIC PIDS |
| OBD – UDS |
| J1939 |
| NMEA2000 |
PDUs
| PDU Ecumaster |
| PDU HP Elektronic |
| PDU Life Racing |
| PDU Motec |
| PDU Syvecs |
| PDU Tremondi |
| PDU MSEL Master Relay |
Auxiliary Devices
| ABS Bosch Motorsport M4/M5 |
| DCU Motec MDC/MDC2 |
| KEYPAD Blink Marine |
| KEYPAD Tremondi |
| LAMBDA AEM |
| LAMBDA Ecumaster |
| LAMDA Haltech |
| LAMBDA Link |
| LAMBDA Motec |
| SENSOR AEM Thermocouple Amplifier |
| SENSOR KMS Thermocouple Amplifier |
| SENSOR KMS Flex Fuel |
| SENSOR KMS Speed Sensor |
| SENSOR Motec E888 |
| SENSOR Syvecs Thermocouple Amplifier |
| SENSOR TEXENSE IRN4C/IRN8C/THN4X |
| SENSOR AIM TPMS |
| SENSOR IZZE TPMS |
| TCU XAP ESHIFT2 |
QUESTIONS? ANSWERS.
CUSTOMER REVIEWS
“We have relied on Plex Tuning for over a decade in professional motorsports, and their products and customer service have been nothing short of exceptional. Their support is truly 24/7 (sorry, Ioannis!), ensuring we get urgent assistance whenever needed. Plex-Tuning consistently delivers cutting-edge solutions, and we wholeheartedly recommend them to every serious tuner or motorsport enthusiast.”
ENGINEERING SOLUTIONS
DENMARK
“I was seeking options for our internal projects in the aftermarket motorsports dash offerings. I have programmed, installed and tested most every dash available on the market today. Motec, Aim, Cosworth, AEM, Bosch to name few. Every single one is good at a few things but most lack the ability to be great at everything. I came across PLEX while doing research for more options in the motorsports dash space. Their offering looked intriguing with the expansive base I/O and CAN bus options available coupled with the additional of hi-res and daylight visible graphics. We installed SDM-700Rs to BMW F82 M4 GT4 and F87 M2 projects with the customers giving very positive feedback and achieving faster lap times .”
5.2 MOTORSPORTS
USA

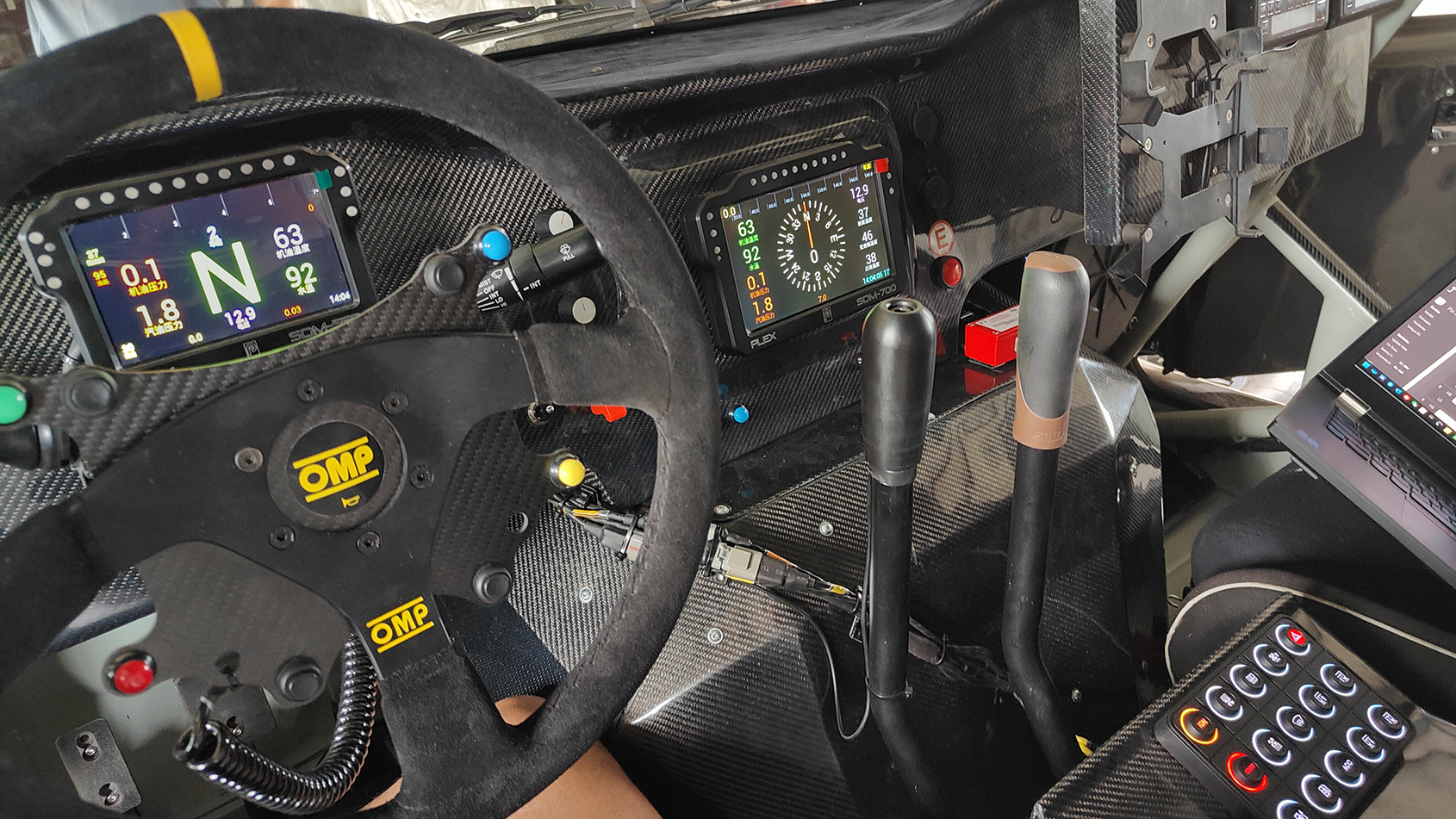

“At Gusto Engineering we use the SDM-700R for the centre display in our Rally Raid projects along with a 550 for the driver. The Plex displays are second to none for clarity and the ability for both the navigator and driver to view the display from very large angles and in any light is a great advantage. The luminosity and contrast are at the highest levels. All channels, alarms, and warnings can be displayed in Chinese characters, making it easy for the crew to spot any issues. The nearly unlimited logging, restricted only by USB card capacity, is a huge advantage for long stages—some spanning over 1,000 km. Plex’s responsiveness is also exceptional: John is always ready to listen and act quickly on new feature requests, which is vital in today’s motorsport environment. The open and fully configurable CANbus and LINbus support is another standout feature that few displays at this level offer. Overall, these are excellent products backed by excellent service.”
GUSTO ENGINEERING
CHINA
MORE PLEX DISPLAYS
STAY UPDATED ON WHAT MATTERS TO YOU!
Subscribe for product updates,
exclusive insights & special offers.

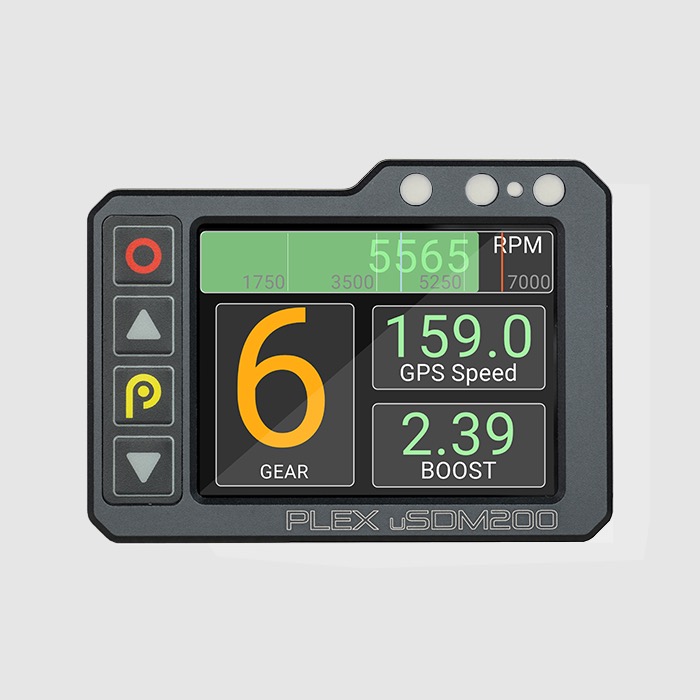

2.8” uSDM-200

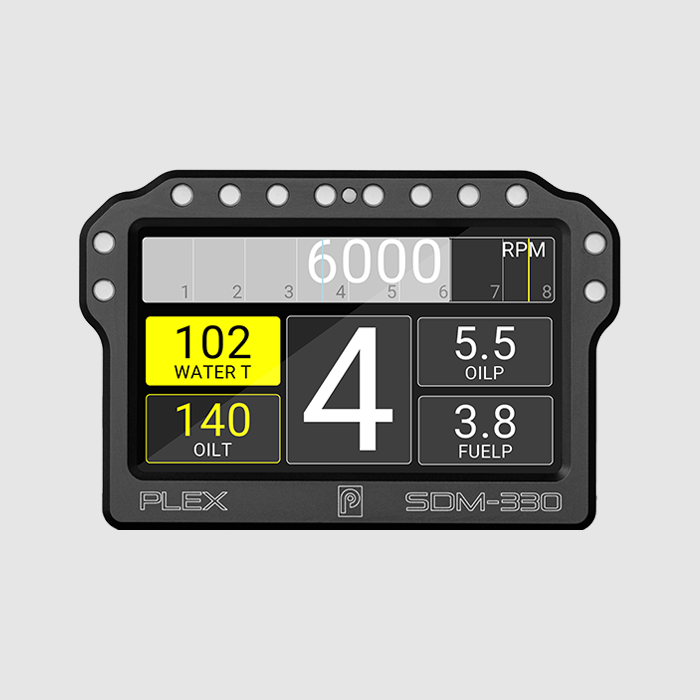

4.3” SDM-330
