PLEX uSDM-200® MICRO DISPLAY

Small. Versatile. Pro.

2.8’’ Fully Configurable CAN Bus Display, ideal for real-time data monitoring in any types of vehicles. Also available with data logging and built-in multi-GNSS for precise lap timing and performance measurements, perfect for tuners and racers seeking high-performance insights.

SKUs: plex-uSDM-200-d | plex-uSDM-200-dl | plex-uSDM-200-dlg
D
DL
DLG

Add-Ons

Request a trade quote
Available to ship with DHL Express in 1-3 days
GUARANTEED SAFE CHECKOUT
  • visa
  • mastercard
  • amex
  • paypal
  • google pay
  • apple pay
  • wire transfer

2.8” WONDER

SMALL. PRO. RIGHT.

Meet the 2nd Gen PLEX Micro Display, a compact yet
ultra-versatile digital CAN dash display designed for motorsport and automotive enthusiasts.

Succeeding the previous μSDM-100 and μSDM-102 models, the new uSDM-200® offers a vibrant, customizable user interface, fully re-engineered electronics for enhanced performance, and a weatherproof enclosure (IP64).

Despite its small size, the uSDM-200 packs a punch with data-logging options and GPS (multi-GNSS) integration, delivering unmatched functionality and optimal viewing ergonomics.

Ready to go micro ; )

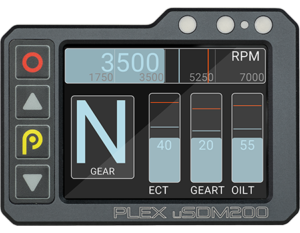

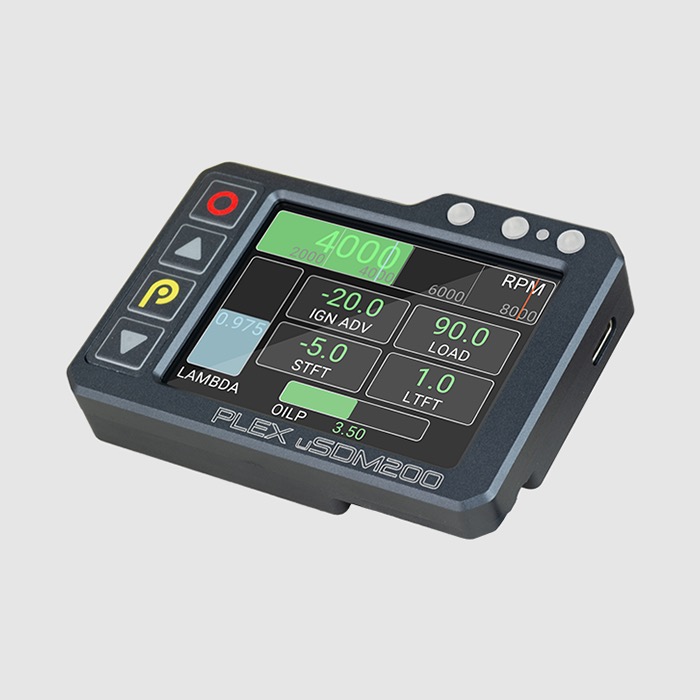

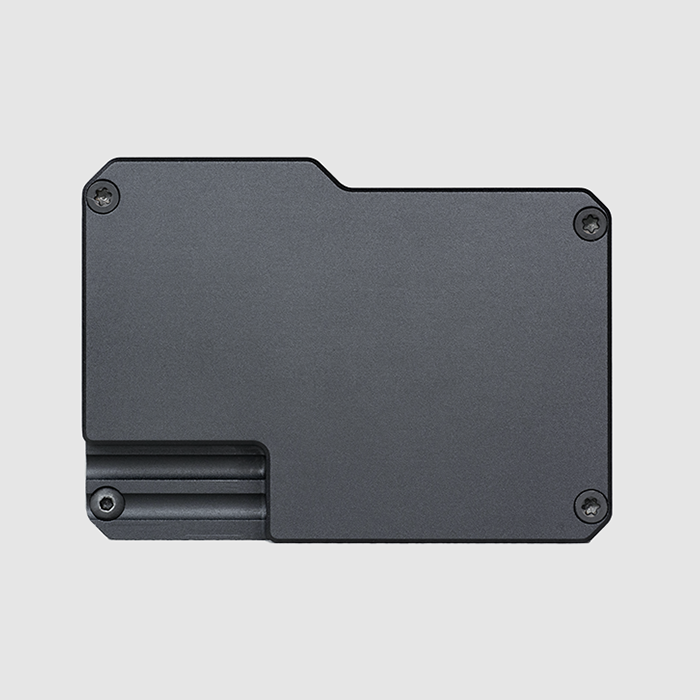

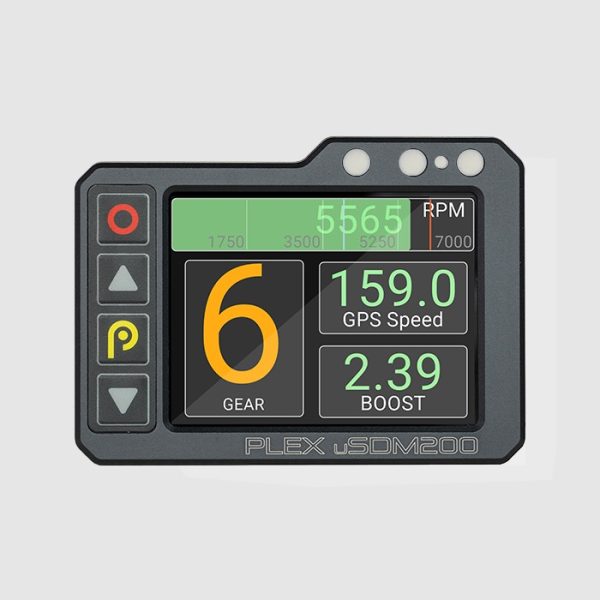

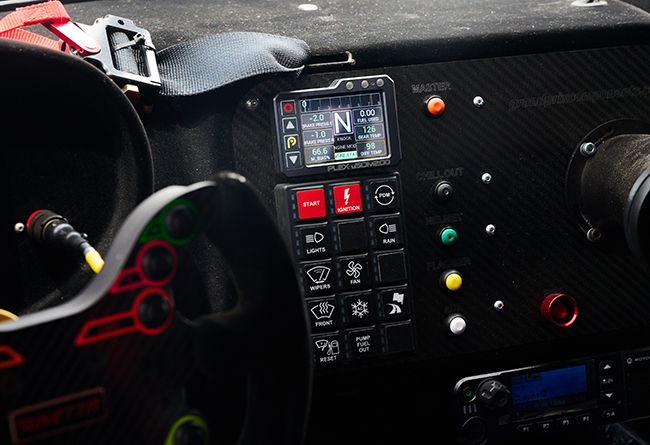

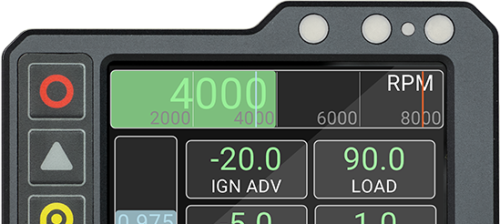

2.8" uSDM-200 Micro Dash Display in vertical, horizontal and side views, displaying the custom performance measurements page tuning pages

KEY FEATURES

SUPERB 2.8” IPS DISPLAY

Ultra-bright 900 nits, high-contrast IPS screen with auto-dimming and touch functionality for optimal visibility in all conditions.

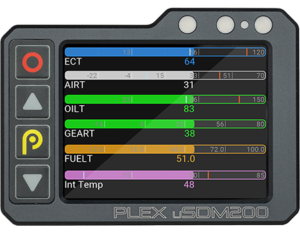

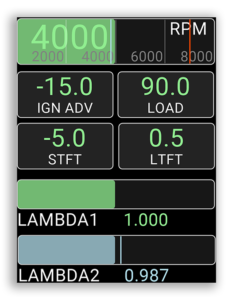

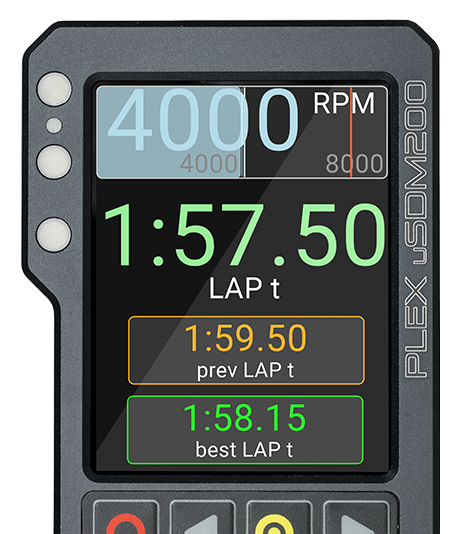

CLEAN QUICK-GLANCE™ UI

Our proprietary UI design ensures optimal viewing ergonomics, minimizing driver distraction for quick, clear data at a glance.

HIGH QUALITY ENCLOSURE

Durable anodized CNC aluminum housing with IP64 weather protection and a flat-back design for easy, secure mounting.

FULLY CONFIGURABLE

Create custom pages & tailor your setup with configurable CAN Bus receive and transmit options, along with customizable inputs, outputs, and alarms.

BUILT-IN MULTI-GNSS*

Enjoy concurrent GNSS satellite reception (GPS, Glonass, Baidu, Galileo) for precise performance measurements and predictive lap timing.

SMART DATA LOGGING*

Equipped with built-in flash memory, the uSDM-200 can log up to 128 different data channels for detailed post-analysis using PLEX software.

DUAL ORIENTATION

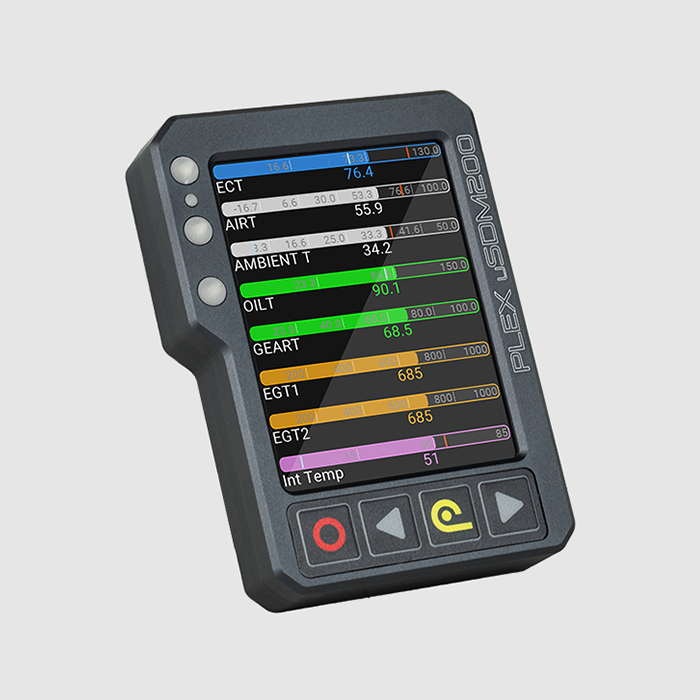

Flexible installation options allow for both horizontal and vertical orientations, ensuring optimal viewability with an equivalent page layout in either position.

MEMBRANE KEYPAD

Featuring a membrane keypad with configurable functions, the uSDM-200 delivers solid tactile feedback for a reliable user experience.

BUILT TO LAST

Constructed with high-quality components, the uSDM-200 offers frequent firmware and feature updates, backed by robust support to ensure longevity and reliability.

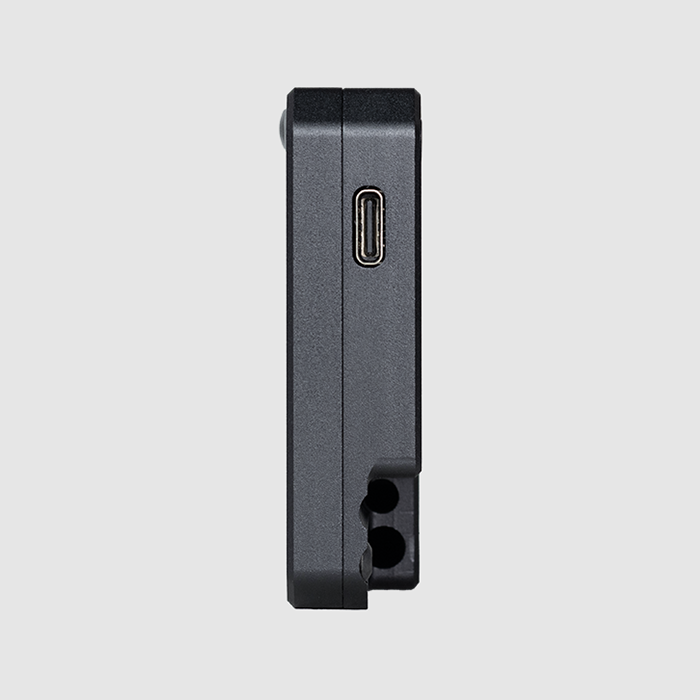

USB-C

Fast data-transfer port for configuration and datalog file transfer.

GPS Antenna Port

Built-in concurrent multi-GNSS for precise peformance measurements and lap timing (DLG version).

TOP QUALITY. INSIDE OUT.

The new uSDM-200 is crafted from precision CNC aluminum and features an industrial-quality membrane keypad, complemented by cutting-edge PCB electronics.

It serves perfectly as either a standalone primary dash display or a secondary unit for a variety of vehicles and applications.

Light Sensor

Auto-dimming function and rapid adaptation to ambient light conditions ensure optimal viewing ergonomics.

Membrane Keypad

Industrial quality membrane keypad with custom function delivers solid tactile feedback. Can also be used with gloves.

Custom UI

Build your own custom pages or select from the pre-defined templates. Be your own master.

Touch Screen

The higly responsive capacity touch screen let’s you scroll through the display pages easily.

Programmable RGB LEDs

Assign your own logic and colors to the three LED lights. Use for warning, status or gear notifications.

TOP QUALITY.
INSIDE OUT.

The new uSDM-200 is crafted from precision CNC aluminum and features an industrial-quality membrane keypad, complemented by cutting-edge PCB electronics.

It serves perfectly as either a standalone primary dash display or a secondary unit for a variety of vehicles and applications.

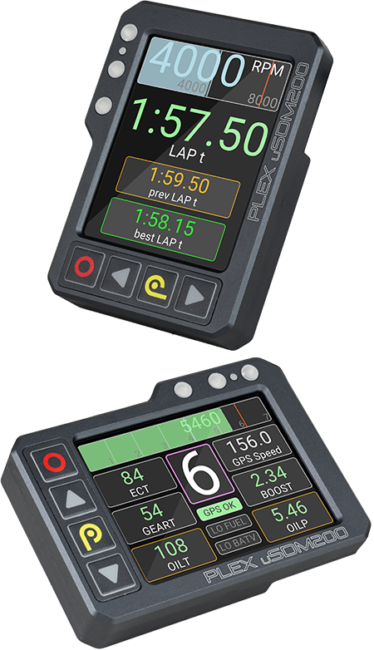

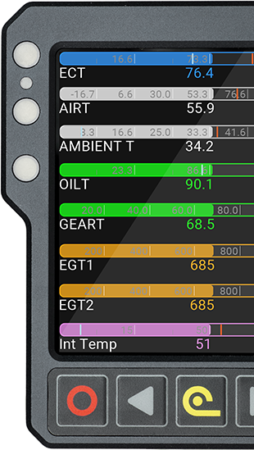

Vertical and horizontal diagonal views of the PLEX uSDM-200 Dash Display, showing clean UI, the brightness of the IPS screen and the customisable display pages

Light Sensor

Auto-dimming function and rapid adaptation to ambient light conditions ensure optimal viewing ergonomics.

RGB LEDs

Fully configurable LED lights that can be used for device status, alarms/warning or other custom functions.

Membrane Keypad

Industrial quality membrane keypad with custom function delivers solid tactile feedback. Can also be used with gloves.

Custom UI

Build your own custom pages or select from the pre-defined templates. Be your own master.

Touch Screen

Build your own custom pages or select from the pre-defined templates. Be your own master.

USB-C

Fast data-transfer port for configuration and datalog file transfer.

GPS Antenna Port

Built-in concurrent multi-GNSS for precise peformance measurements and lap timing (DLG version).

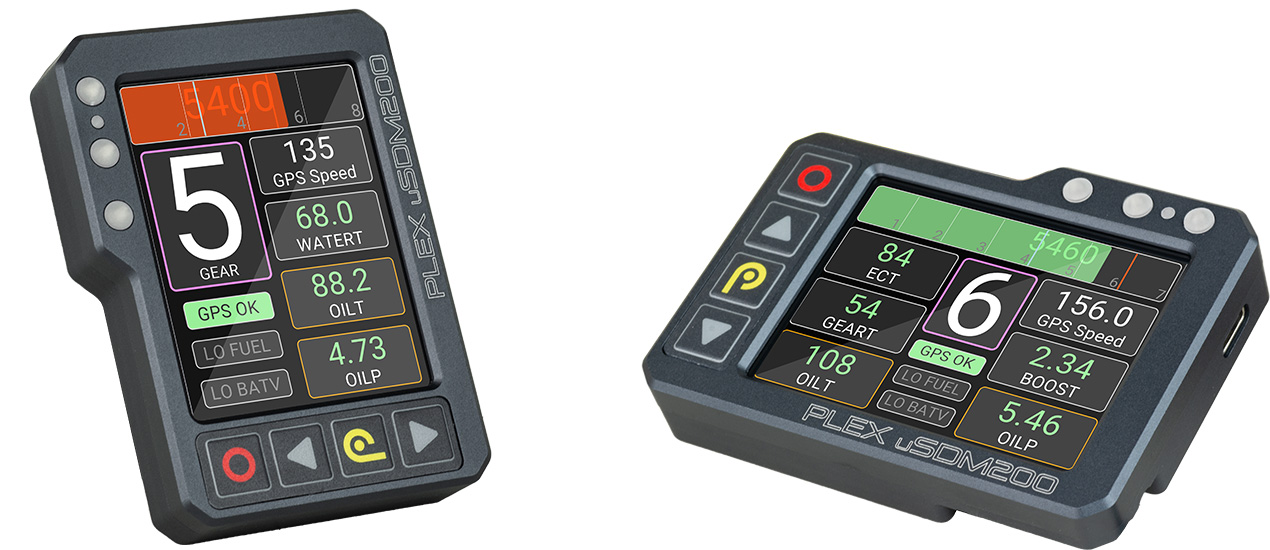

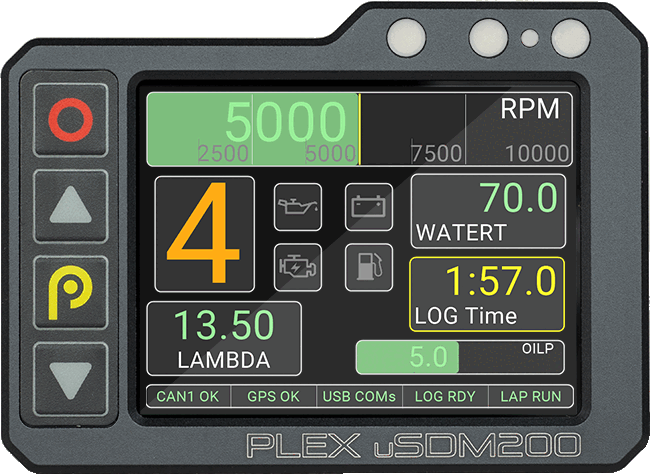

PLEX VIEWING ERGONOMICS

VIEW WHAT MATTERS MOST.
WHEN IT MATTERS MOST.

A dash display should be easy to read when it’s needed most and unobtrusive at all other times. We take pride in offering the best viewing ergonomics in the market, ensuring that our dash displays deliver clarity and accessibility when it matters most, allowing you to focus on what really counts.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

DLG VERSION

BUILT-IN MULTI-GNSS

FULL-BLOWN, ALWAYS-ON
PERFORMANCE METER

The PLEX uSDM-200-DLG features an advanced performance meter mode that automatically tracks a variety of common acceleration tests. Data can be viewed in real-time or analyzed later using the PLEX Data Analysis Software, ensuring you have the insights you need to enhance your performance.

ACCELERATION & SPEED TESTS
0-60, 0-100, 100-200 km/h or mph
0-400, 0-1000, VMAX, Peak G and more

DECELERATION / BREAKING TESTS
60-0, 100-0, 200-0 and 300-0 km/h or
mph and also custom tests.

DRAG CHRISTMAS TREE
Measure your reactions and practise your starts.

LIVE DRAGE METER
Monitor your progress down the dragstrip in real-time.

PLEX uSDM-200-DLG Micro dash display and logger page layouts for the drag meter functionality
DLG VERSION

100Hz 6-AXIS IMU

ACCURATE VEHICLE
DYNAMICS ANALYSIS

A built-in 100Hz 6-axis Inertial Measurement Unit (IMU) enables precise measurements of vehicle motion, capturing real-time data on acceleration, braking, cornering, and other dynamic movements. This ensures highly accurate vehicle dynamics analysis, providing critical insights for performance optimization.

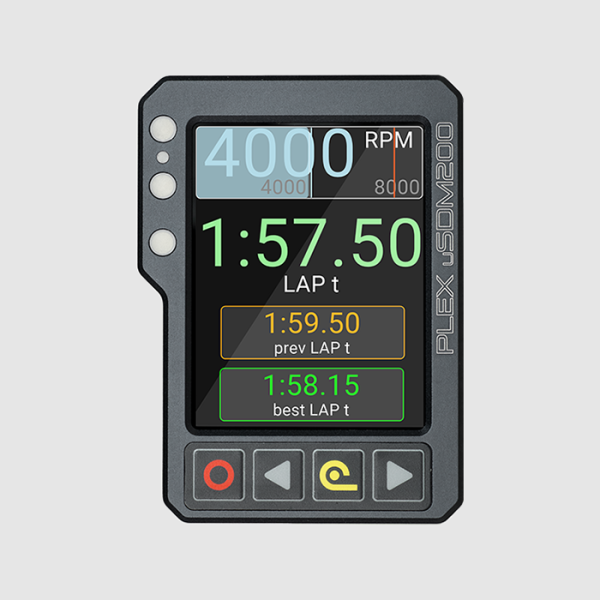

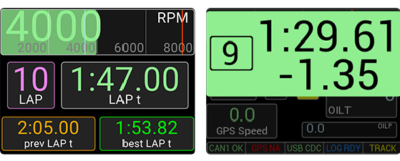

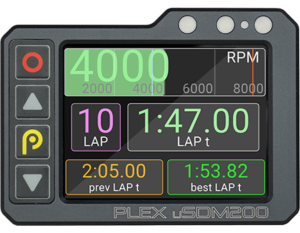

uSDM-200 display page layouts for lap-timing with rolling status and lap notifications
DLG VERSION

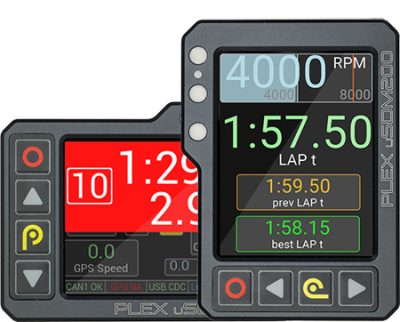

PREDICTIVE LAP TIMING
WITH INSTANT DRIVER
FEEDBACK

Optimize your performance and lap times by adjusting your lines, braking points, and speed in real time. The uSDM-200-DLG’s built-in concurrent multi-GNSS module provides rapid, position-based data, delivering timely and intuitive lap notifications to help you continuously improve your driving.

FLEXIBLE SET-UP
Easily define your preferences for viewing lap time data. Enable the “New Lap” pop up message and/or create custom pages to show all Lap Timing related channels.

REALTIME LAP DELTA DISPLAY
Use the realtime predicted time difference from your best lap for instant evaluation of your driving performance.

AUTO RACE TRACK DETECTION
When you are within approximately 2km of a pre-loaded track, the uSDM-200 will automatically load the corresponding track data.

ADVANCED POST ANALYSIS
Analyse your circuit performance with a combination of data channels in our intuitive data-analysis software that comes for free with our displays.

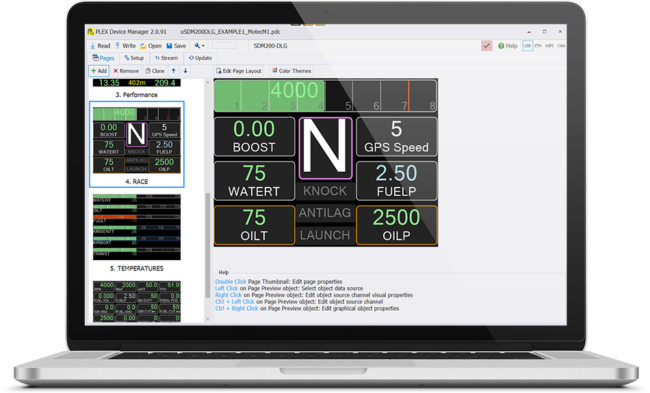

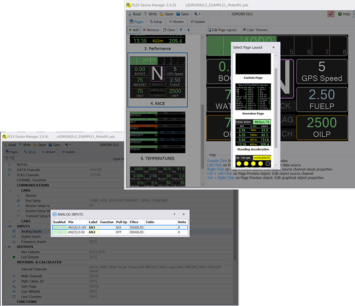

PLEX DEVICE MANAGER 2.0

YOUR DISPLAY. YOUR WAY.

Advanced Configuration at Your Fingertips

EASY TO NAVIGATE
SETUP TREE INTERFACE

A hierarchical tree-list interface offers an intuitive and organized way to access all device configuration options. This logical flow simplifies complex setups, allowing users to navigate effortlessly through various configuration layers.

COMMON USER INTERFACE
FOR ALL PLEX DEVICES

The PDMv2 provides a unified interface across all PLEX devices, from dashboards to tuning tools. This consistency ensures easy switching between devices and streamlines configuration with a shared layout and features.

WYSIWYG DASH PAGE
LAYOUT DESIGN

Enjoy a ``What You See Is What You Get`` dash page layout, allowing for easy offline design with accurate page previews. Data simulation ensures users can see exactly how their dashboards will look and function, providing full confidence in the final setup.

TRULY FAST CONFIGURATION

Speed up the configuration process with easy filtering of selection lists, keyboard shortcuts, and copy-paste functionality. These tools help streamline and accelerate setup, minimizing time spent on repetitive tasks.

REAL-TIME CAN MSG STREAMING

Transform your device into a powerful CAN bus diagnostic tool with real-time streaming of incoming raw CAN messages. View all incoming data instantly, and transmit user-defined CAN messages on demand for advanced troubleshooting and system testing.

BUILT-IN TEMPLATES

The software comes preloaded with a comprehensive library of CAN protocol templates for seamless connection to most aftermarket ECUs. It also includes sensor templates for common engine sensors, allowing for quick and easy setup without manual configuration.

PLEX PDA-WIN®
DATA ANALYSIS
AND VISUALISATION
SOFTWARE

Outsmart The Track

CUSTOMIZABLE UI

User defined layout of tabs and panels with handy docking similar
to latest Windows SW suite and also light & dark modes.

FAST KEYBOARD SHORTCUTS

Main menu and panel functions shortcuts speed up the set-up time and the dynamic real-time analysis considerably.

MULTIPLE GRAPHS & PANELS

A wide array of chart types lets you visualise large amounts of data into an easy to understand formats and bring out insights at a glance.

EASY FILE COMPARISON

Seamlessly switch between single and comparison view even for completely different file types such as a dyno run with a track lap.

LIVE DATA UPDATING

Zoom levels & cursors are synchronized across all analysis panels and graphs, enabling auto rescaling and seamless cross-referencing of data.

SMART TUNING MAPS

Configurable cell graphs with information directly transferable to the ECU calibration maps that help you optimise your fuel and ignition maps.

A DIFFERENT VERSION FOR EVERYONE

PLEX uSDM-200 micro CAN display in front, horizontal view, displaying it's clean UI uSDM-200 micro CAN display, in front horizontal view, showcasing it's ultra-bright, daylight view IPS TFT color display uSDM-200 Micro Dash Display logger, featuring it's lap-timing capabilities in an easy and clean layout
uSDM-200-D uSDM-200-DL uSDM-200-DLG
DISPLAY ONLY DISPLAY LOGGER ALL-IN-ONE + GNSS
Custom CAN BUS
Max. Pages 12 24 24
Max. Channels 64 128 128
Multipurpose Inputs - 2 2
Engine Log n/a n/a n/a
Smart Alarms
Datalogging -
Math Channels 4 16 16
GNSS (GPS) - -
Lap Timing - -
Performance Meter -

DETAILED SPEC

Physical
Dimensions (mm) w 86.5 x h 63 x d 16
Weight 130g
Connector(s) JWPF
Sealing/Ingress Protection IP64
Material CNC machined aluminum
Electrical Data / Operating Conditions
Supply Voltage Range 9-30V DC
Current Consumption max. 0.3A at 12V
Temperature Range -20 to +60 degC
Screen

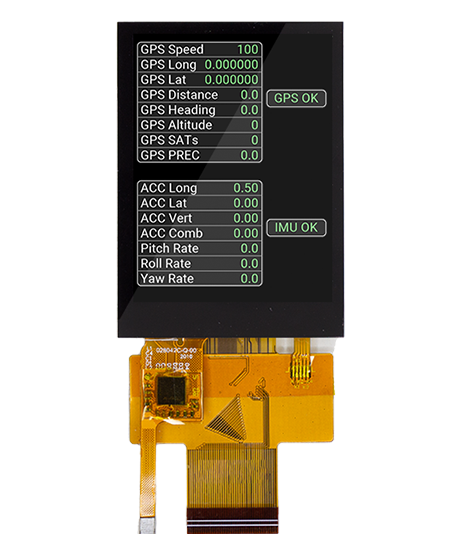

Type RGB TFT IPS Sunlight Readable with touch interface
Size (px) 320 x 240
Brightness 900cd
Refresh Rate 20Hz
Display Glass Capacitive touch
Communitations
CAN Bus 1x
K-Line tbc
USB 1 (for configuration & data transfer)
Inputs/Outputs
Inputs DL & DLG Versions Only
1x Multi-purpose 0-5V (Analog/Digital/Frequency)
1x Multi-purpose 0-16V (Analog/Digital/Frequency)
Outputs 1x AUX Low Side, lim 0.5A (shared)
Internal Sensors
Real Time Clock with battery backup
Device/Sensor Voltage Monitor +12V supply/+15V sensor supply
Device Temperature Sensor Yes
Ambient Light Sensor Yes
Accelerometer/IMU 6-axis built-in / 100Hz (DLG version)
GPS 10Hz built-in multi concurrent GNSS
Data Logging
Memory 32 GB built-in flash
Max. Log Rate 100Hz
Engine Log pending
Alarms Log yes
Lap Times Log yes (DLG version)
Performance Times Log yes (DLG version)
Data Channels
Max. Data Channels 64/128/128 (D/DL/DLG)
Max. Flag Channels 64/128/128 (D/DL/DLG)
User Interface
# of Pages 12/24/24 (D/DL/DLG)
Custom Page Design yes
Custom Themes yes
Pre-loaded Templates/Pages yes
Internal Calculations
Lap Times yes (DLG version)
Acceleration Performance yes (DLG version)
Engine Power & Torque yes (DLG version)
Alarms Log n/a
Math Channels 4/16/16 (D, DL, DLG)
Trip Meters 2

DEVICE COMPATIBILITY

ECUs - Aftermarket
Adaptronic
AEM
  • Infinity
  • Series 2
Bosch Motorsport
  • MS3
  • MS40
Carrot
DTA
  • S Series
  • T Series
ECUMASTER
  • EMU Black
  • Classic
  • Pro
EFI
  • EFR18
  • Euro1
  • Euro4
  • Euro6
  • Euro8
Electromotive TEC
Emerald
  • K3
  • K6
Emtron
E-Race Black
GEMS
Haltech
Hondata
  • Kpro
  • S300
KMS
  • MD35
Life Racing
LINK
  • G3
  • G4
  • G4X
MAXX
MARELLI
Mectronic
  • MKE1
  • MKE4
  • MKE6
  • MKE7
Megasquirt
Microtech
  • v2.0
MMe
  • ECU481
MOTEC
  • M400
  • M600
  • M800
  • M1 Series
Pectel
  • EQ10
  • SQ6
Specialist
Components
SYVECS
  • S6
  • S7
  • S8
Triject
ECUs - OEM
BMW M2/M4
MItsubishi Evo X
Toyot GT86
ECUs - Generic OBDII/UDS
OBD – CAN ISO15765
OBD – MODE 22 MANUFACTURER SPECIFIC PIDS
OBD – UDS
J1939
NMEA2000
PDUs
PDU Ecumaster
PDU HP Elektronic
PDU Life Racing
PDU Motec
PDU Syvecs
PDU Tremondi
PDU MSEL Master Relay
Auxiliary Devices
ABS Bosch Motorsport M4/M5
DCU Motec MDC/MDC2
KEYPAD Blink Marine
KEYPAD Tremondi
LAMBDA AEM
LAMBDA Ecumaster
LAMDA Haltech
LAMBDA Link
LAMBDA Motec
SENSOR AEM Thermocouple Amplifier
SENSOR KMS Thermocouple Amplifier
SENSOR KMS Flex Fuel
SENSOR KMS Speed Sensor
SENSOR Motec E888
SENSOR Syvecs Thermocouple Amplifier
SENSOR TEXENSE IRN4C/IRN8C/THN4X
SENSOR AIM TPMS
SENSOR IZZE TPMS
TCU XAP ESHIFT2

QUESTIONS? ANSWERS.

Documentation
Datasheet download
User Manual access
Pin-out / Wiring Diagram pending
Mounting Diagram pending
Software
PLEX Device Manager 2.0 download
PLEX Data Analysis 2.0 (PDA-WIN) download
What's In the Box?
1. Device
2. USB-C Cable
3. JWPF Male Connector & Pins (10)
4. Wiring Loom (on-device) all versions
5. GNSS Antenna (DGL Version only)
