S40 ecu:
SDM-500 pin 5 CAN1 HI yellow -------------> S40 pin 16 CAN H
SDM-500 pin 4 CAN1 LO blue -------------> S40 pin 17 CAN L
http://www.dtafast.co.uk/Downloads/Wiring_Diagrams/S40%20Wiring%20Diagram.pdf
S60 ecu:
SDM-500 pin 5 CAN1 HI yellow -------------> S60 pin 26 CAN H on plug with two key-ways
SDM-500 pin 4 CAN1 LO blue -------------> S60 pin 28 CAN L on plug with two key-ways
http://www.dtafast.co.uk/Downloads/Wiring_Diagrams/S60%20Wiring%20Diagram.pdf
S80 ecu:
SDM-500 pin 5 CAN1 HI yellow -------------> S80 pin 26 CAN H on plug with two key-ways
SDM-500 pin 4 CAN1 LO blue -------------> S80 pin 28 CAN L on plug with two key-ways
http://www.dtafast.co.uk/Downloads/Wiring_Diagrams/S80%20Wiring%20Diagram.pdf
S100 ecu:
SDM-500 pin 5 CAN1 HI yellow -------------> S100 pin 16 CAN H
SDM-500 pin 4 CAN1 LO blue -------------> S100 pin 17 CAN L
http://www.dtafast.co.uk/Downloads/Wiring_Diagrams/S100%20Wiring%20Diagram.pdf
-
Launch DTASwin PC Software
-
Ensure that the ecu uses at least firmware version V62.01, if not then follow DTA instructions to update the ecu firmware
-
Connect DTASwin to the ecu.
-
Navigate to the "Other Map Settings" menu and select "Data Stream"
-

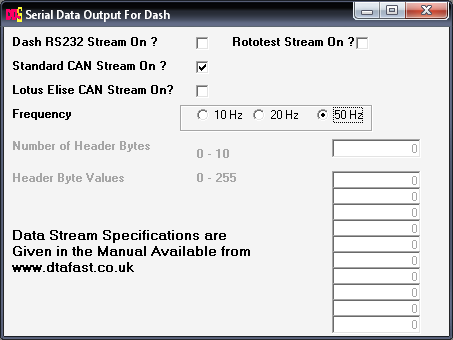

Change your settings to match the image bellow:
6. Update ecu and close window.
7. Now you are ready to diplay and record data with your Plex SDM-500.
