  • Life Racing F42D, F88, F90A, F90RX, F88GDi4, F90F

Life Racing F42D, F88, F90A, F90RX, F88GDi4, F90F

WIRING F42D
F42D Pin8 CANH        SDM 300-500 pin 5 CAN1 HI  yellow
F42D Pin24 CANL      SDM 300-500 pin 4 CAN1 LOW  blue
WIRING F88
F88 Pin80 CANH   SDM 300-500 pin 5 CAN1 HI  yellow
F88 Pin79 CANL   SDM 300-500 pin 4 CAN1 LOW  blue
WIRING F90A
F90A Connector 2 Pin 10 CANH   SDM 300-500 pin 5 CAN1 HI  yellow
F90A Connector 2 Pin 9 CANL   SDM 300-500 pin 4 CAN1 LOW  blue
WIRING F90RX
F90RX Connector 1 Pin 58 CANH   SDM 300-500 pin 5 CAN1 HI  yellow
F90RX Connector 1 Pin 77 CANL   SDM 300-500 pin 4 CAN1 LOW  blue
WIRING F88GDi4
F88GDi4  Pin 82 CANH   SDM 300-500 pin 5 CAN1 HI  yellow
F88GDi4  Pin 81 CANL   SDM 300-500 pin 4 CAN1 LOW  blue
WIRING F90F
F90F Connector 2 Pin 10 CANH   SDM 300-500 pin 5 CAN1 HI  yellow
F90F Connector 2 Pin 9 CANL   SDM 300-500 pin 4 CAN1 LOW  blue

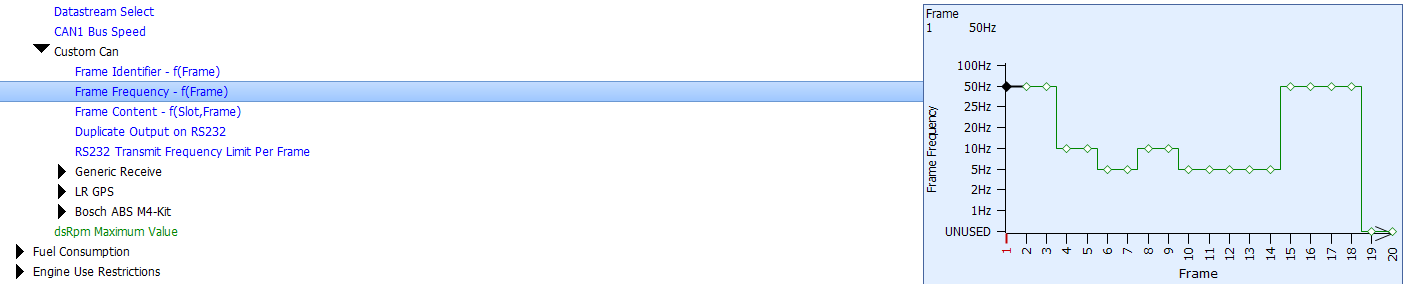

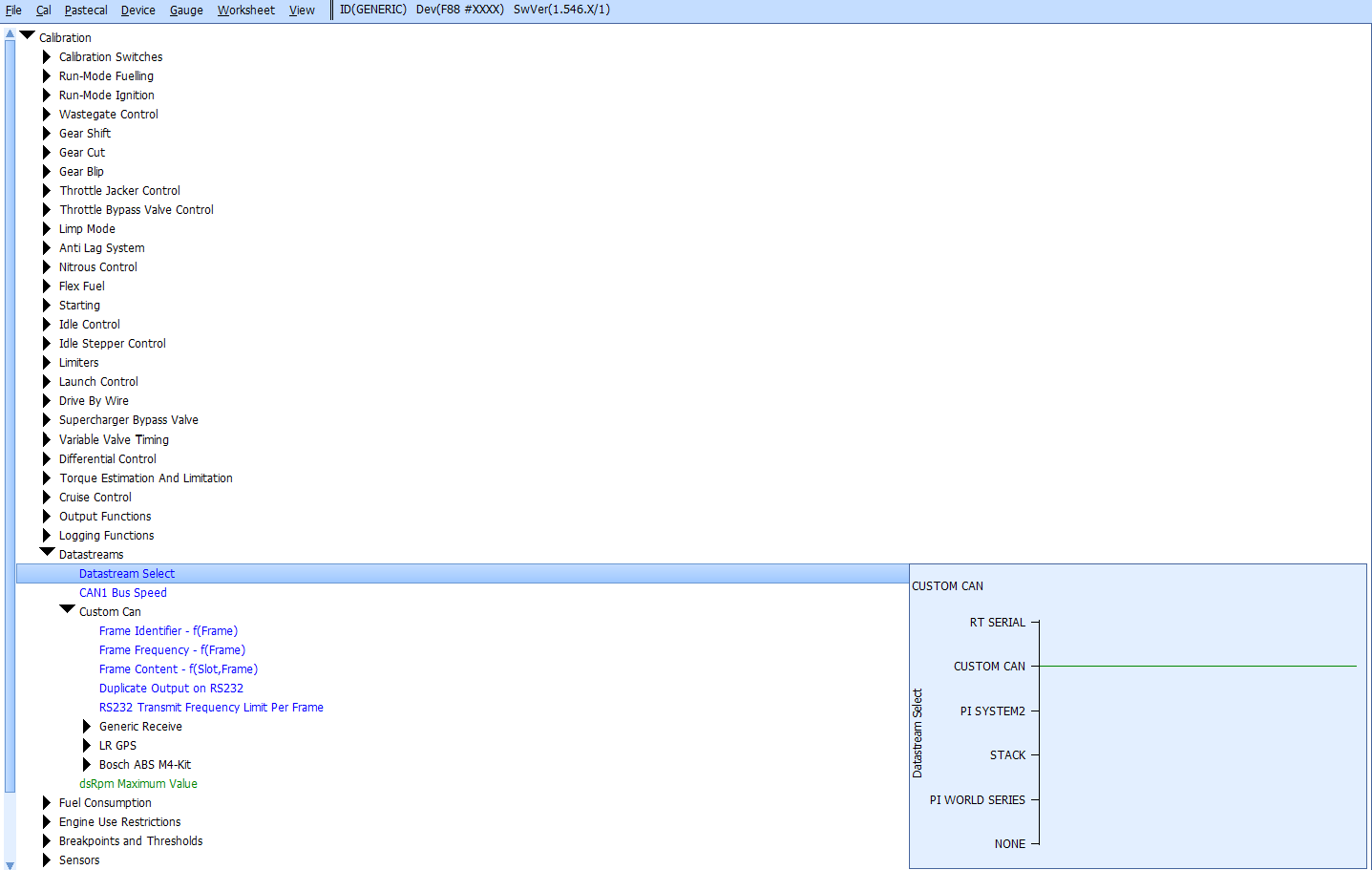

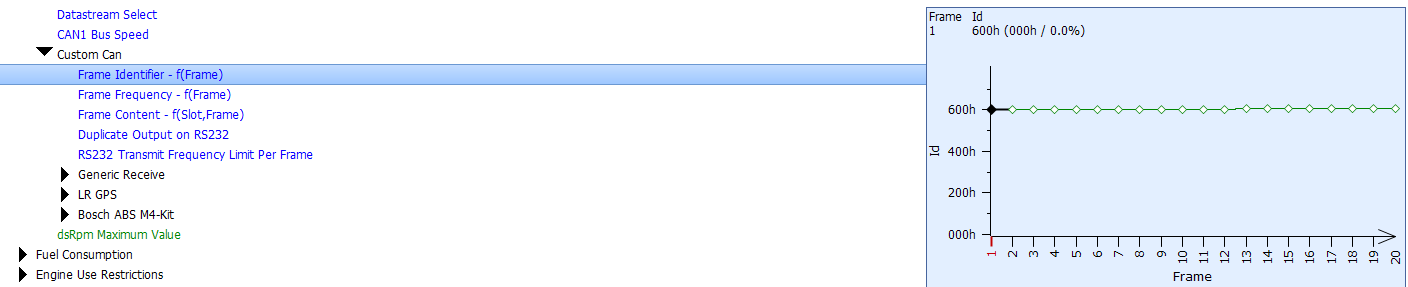

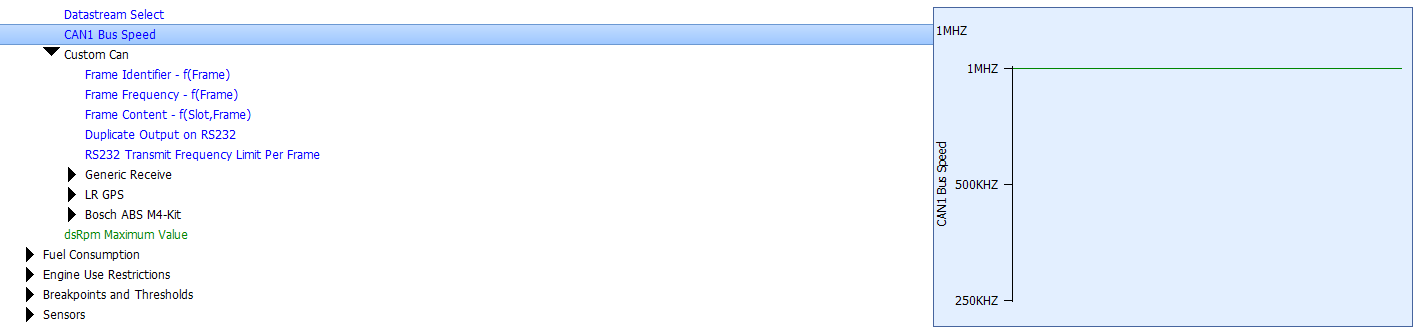

ECU CONFIGURATION







PLEX uSDM-SDM-VMU CONFIGURATION
