ECU
|
CAN HI
|
CAN LOW
|
|
Kurofune
|
J3(JST conn)
|
J2(JST conn)
|
|
Storm
|
B27
|
B28
|
|
Fury
|
B27
|
B28
|
|
Xtreme
|
B27
|
B28
|
|
Force GDI
|
B27
|
B28
|
|
Thunder
|
D24
|
D25
|
|
AtomII
|
28
|
29
|
|
Monsoon
|
28
|
29
|
SDM 300-500 pin 5 CAN1 HI yellow
SDM 300-500 pin 4 CAN1 LO blue

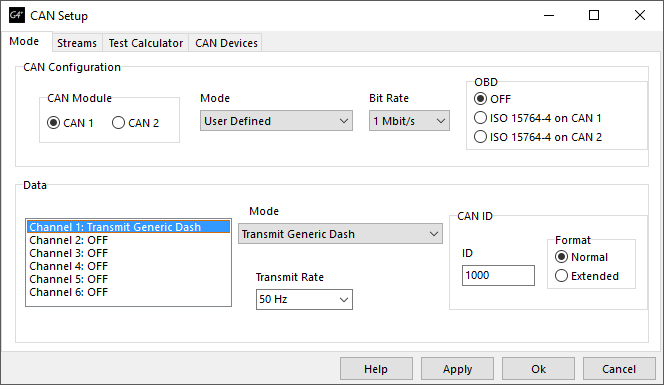

Navigate to PCLink Engine Management\ ECU Controls\ CAN Setup
In the Plex Device Manager/Device Configuration/Communications/CAN1 Select the Link/Vipec template.
The same template can be loaded with a different method that allows advanced users to edit the can bus configuration if required:
-
In the Plex Device Manager/Device Configuration/Communications/CAN1 Select the Custom option.
-
Go into the Receive Setup and Open the "Link_Generic_Dash.PlexCanRXConfig" file.
-
The same configuration will be loaded but with all details visible and editable.
