6. ECU Setup
MBE 94A
Previous page
Next page
Print version
To properly display this page you need a browser with JavaScript support.
MBE 94A
WIRING
SDM-500 pin 5 CAN1 HI yellow >> 9A4 pin 9 CAN H
SDM-500 pin 4 CAN1 LO blue >> 9A4 pin 8 CAN L
ECU CONFIGURATION

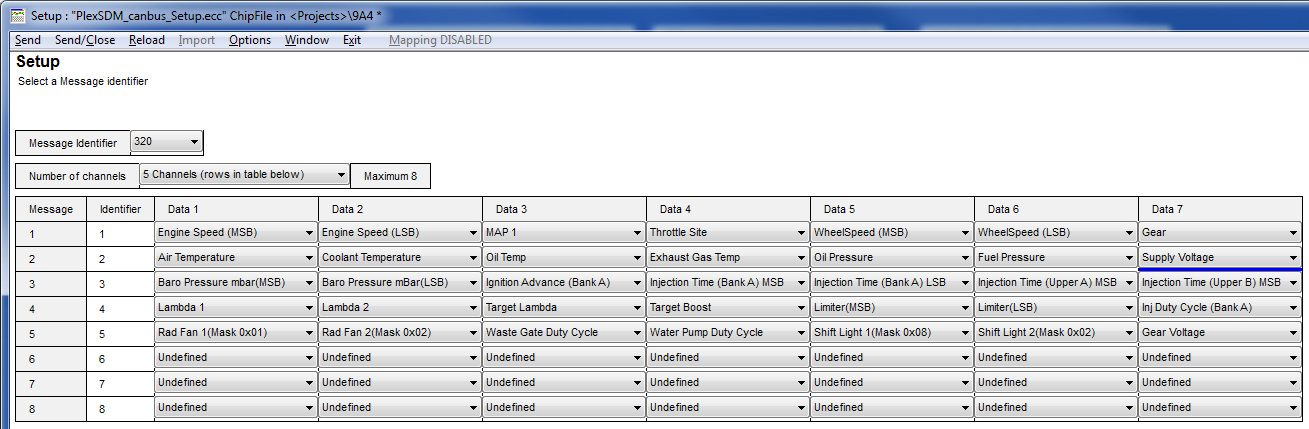

In EasyMap6 go to System\Can Datastream\Setup and adjust the configuration to be identical to the image bellow.
PLEX uSDM-SDM-VMU CONFIGURATION
