Receiving commands from the SDM - S8
The SDM can be used to control up to 3 selection switches and up to 3 on/off switches on the S8.
The instructions bellow show how to setup one knob and one switch. In a similar wasy up to 3 knobs and 3 switches can be enabled.
The following settings have to be configured to enable the generic can receive of the ecu:
-
-

The bus must match the can bus where the SDM is connected to.
-
-
-
Example for controlling the Calibration Switch.
To be able to control the Syvecs Calibrstion Switch position you need to adjust the following settings:
-
-
The calSelect channel should be added to the Datastream / Transmit Content.
Example for controlling the Datalog Switch
-
-
The loggingSwitch channel should be added to the Datastream / Transmit Content.
-
-
Make sure that the calSelect channel is received by the SDM
-
Make sure that the loggingSwitch channel received by the SDM
-
Add the "Ecu Control" page in your Pages configuration.
-
Click on the page preview and set configure the settings:
-
-
Write the device configuration.
-

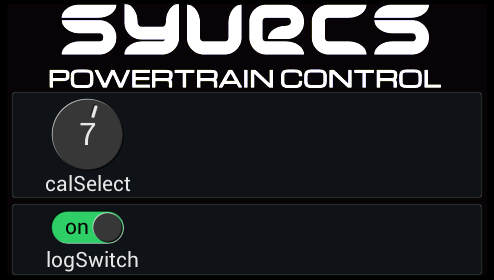

When viewing the Ecu Control page on the dashboard, use the ENTER button to select the knob and the UP/DOWN buttons or joystic to change the value.
-
Use the ENTER or BACK buttons to deselect the knob and allow navigation to other pages.
-
