EMU BLACK
WIRING
EMU Black Connector black Pin12
CANH
>>
SDM 300-500 pin 5
CAN1 HI
yellow
EMU Black Connector black Pin25
CANL
>> SDM 300-500 pin 4
CAN1 LOW
blue

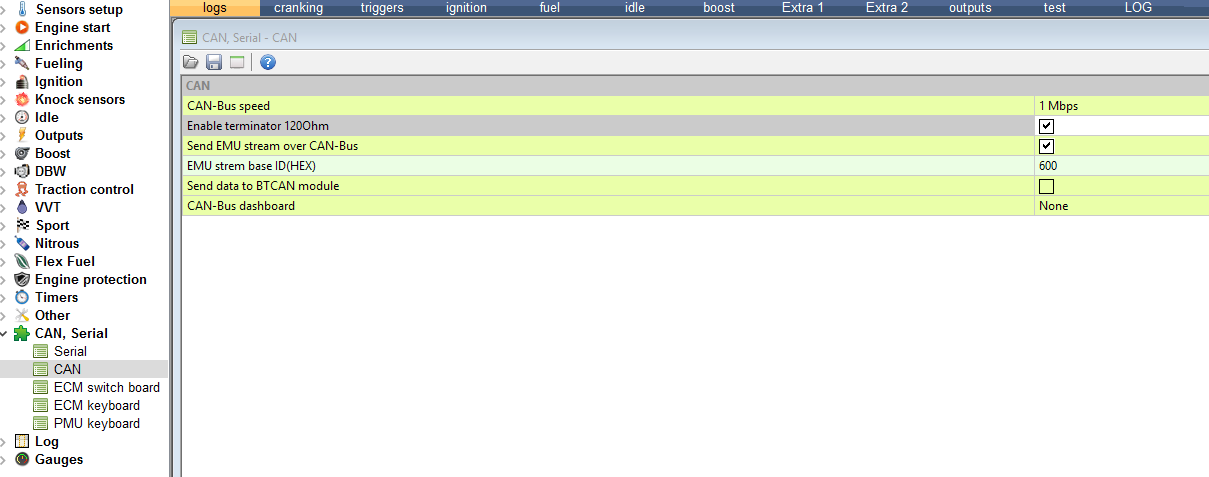

ECU CONFIGURATION
PLEX uSDM-SDM-VMU CONFIGURATION
