EMU/CLASSIC

WIRING

If the ecu only has the 5pin expansion port on the rear side the connection has to be made between the SDM RS232 RX and the SDM sensor ground.

If the ecu also has the 6pin expansion port the connection can be made through the can bus.

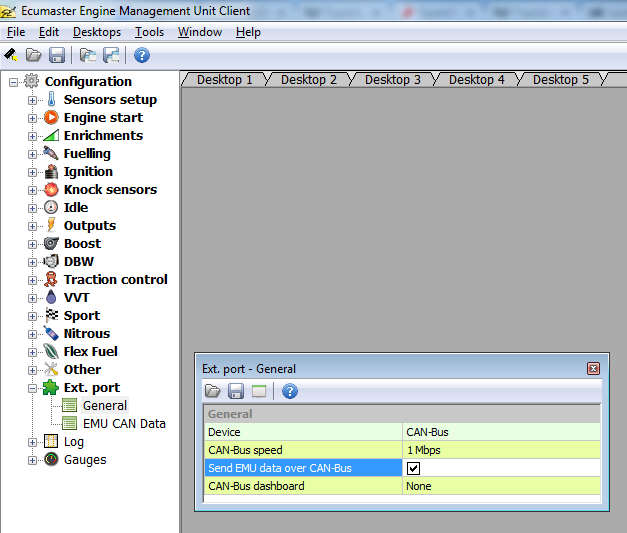

ECU CONFIGURATION

PLEX uSDM-SDM-VMU CONFIGURATION
