Reading GPS and Accelerometer data - S6GP and S8
To receive the GPS and accelerometer data from the SDM-500 you need to:
1. Using SCal set the Datastreams / Custom Can / LR GPS / Receive LR GPS CAN Frames to YES or GPS-A10.
2. Using the Plex Device Manager/Device Configuration/Internal Channels table enable the following channels:

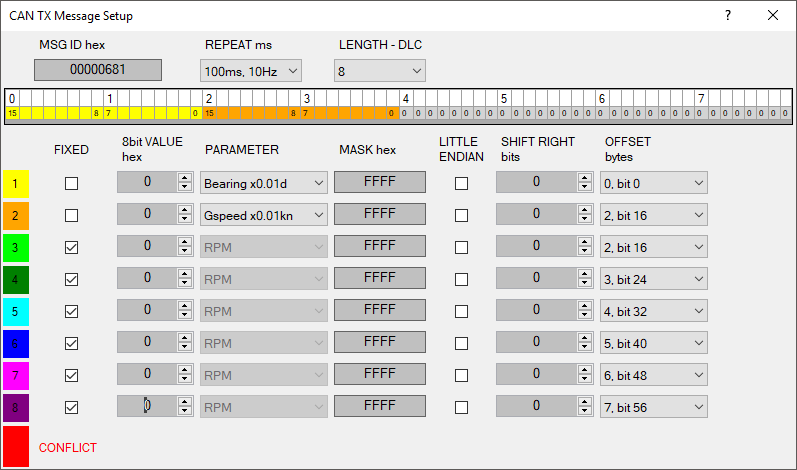

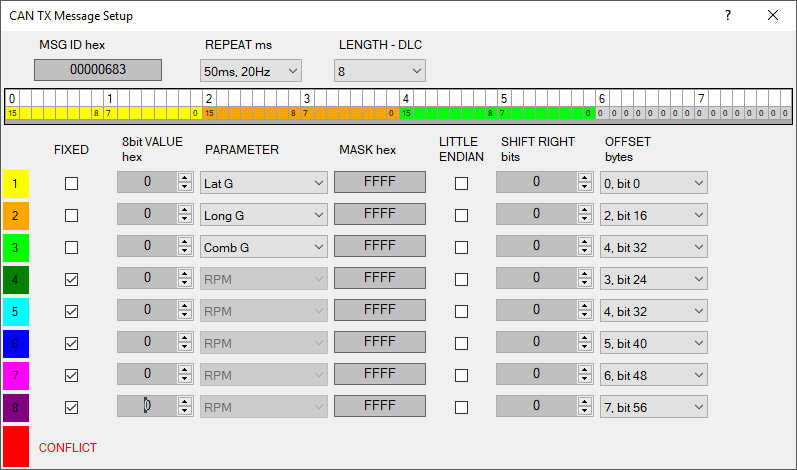

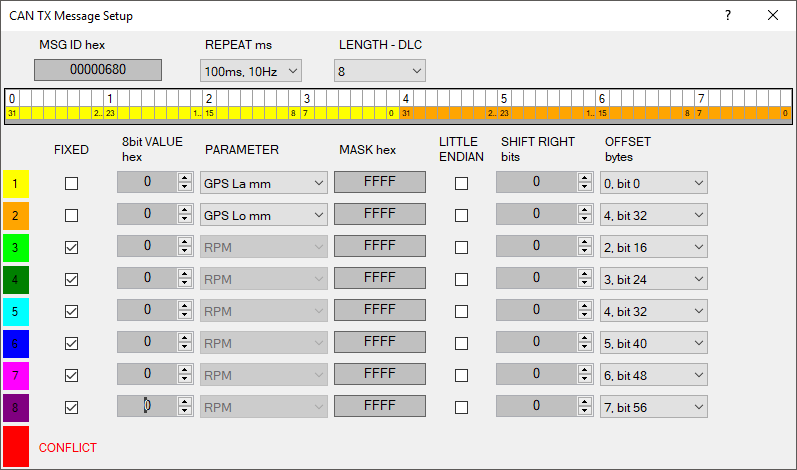

3. Create and add the following 3 can messages in CAN1/ Transmit Setup
