v44
SDM-500 pin 8 RS232 RX white -------------> Vipec Communications Connector pin 5 ECU RS232 TX
SDM-500 pin 9 RS233 TX orange -------------> Vipec Communications Connector pin 6 ECU RS232 RX
v88
SDM-500 pin 8 RS232 RX white -------------> Vipec Communications Connector pin 5 ECU RS232 TX
SDM-500 pin 9 RS233 TX orange -------------> Vipec Communications Connector pin 6 ECU RS232 RX
|
Pin
|
Colour
|
Function
|
|
1
|
Brown
|
Ground
|
|
2
|
Blue
|
NC
|
|
3
|
White
|
CAN H
|
|
4
|
Green
|
CAN L
|
|
5
|
Yellow
|
ECU RS232 TX
|
|
6
|
Gray
|
ECU RS232 RX
|
1. Check you ECU firmware version and update to 4.9.9 or higher.
2. Connect to the ECU.

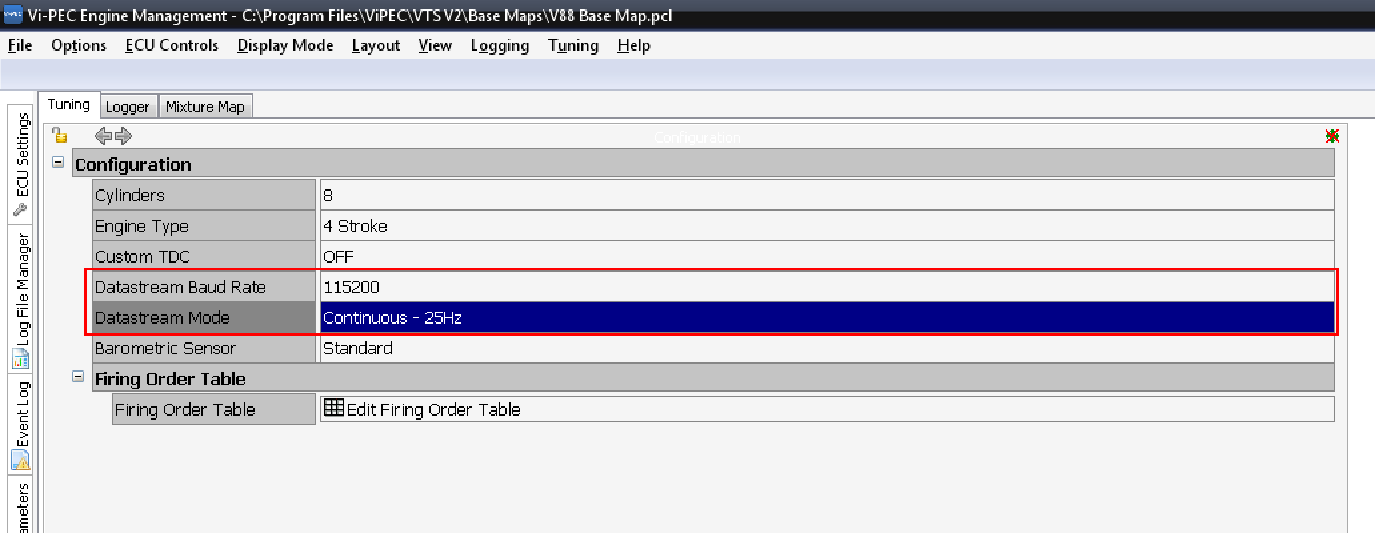

3. Set Datastream Baud Rate to: 115200
4. Set Datastream mode to "Continuous - 25Hz
5. Store ECU settings by pressing "F4" on the keyboard.
6. Restart ECU.
