Wiring Diagram

QUICK INFO:

For ease of installation the Knock Monitor has separate connectors fro each function:

The power connector is marked with "P".

The Knock sensor 1 connector with "1".

The Knock sensor 2 connector with "2".

The trigger connector with "T".

The analog output connector with "A".

The load sensor connector with "L".

The white loom connectors are from JWPF series of the JST brand.

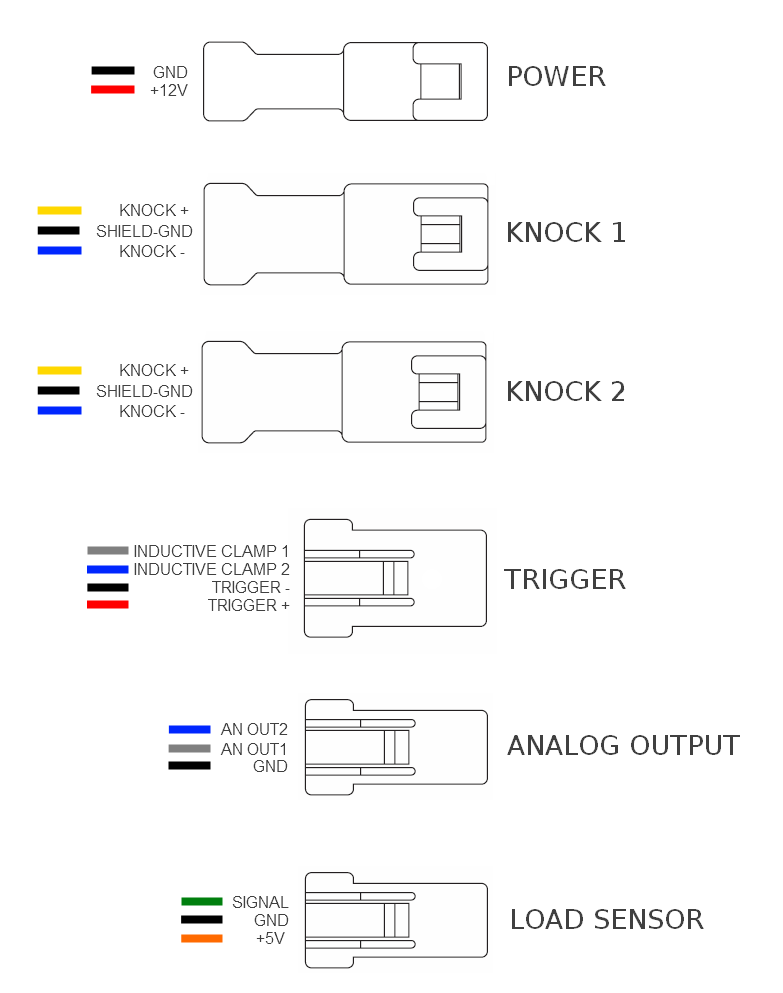

Wiring and colors on the device side:
